DiMeNsiONs
SIDE VIEW
TOP VIEW
FRONT VIEW
G
H
F
A E
B C
D
MAXIMUM
LIFTING
POINT
14,050 lbs.
(6,373 kg)
220
Table 3. dimensions
reference
letter
dimension in. (mm) reference letter dimension in. (mm)
A 31.10 in. (790 mm) E 41.33 in. (1,050 mm.)
B 31.10 in. (790 mm) F 137.79 in. (3,500 mm)
C 41.33 in. (1,050 mm) G 68.89 in. (1,750 mm)
D 41.33 in. (1,050 mm) H 51.18 in. (1,300 mm)

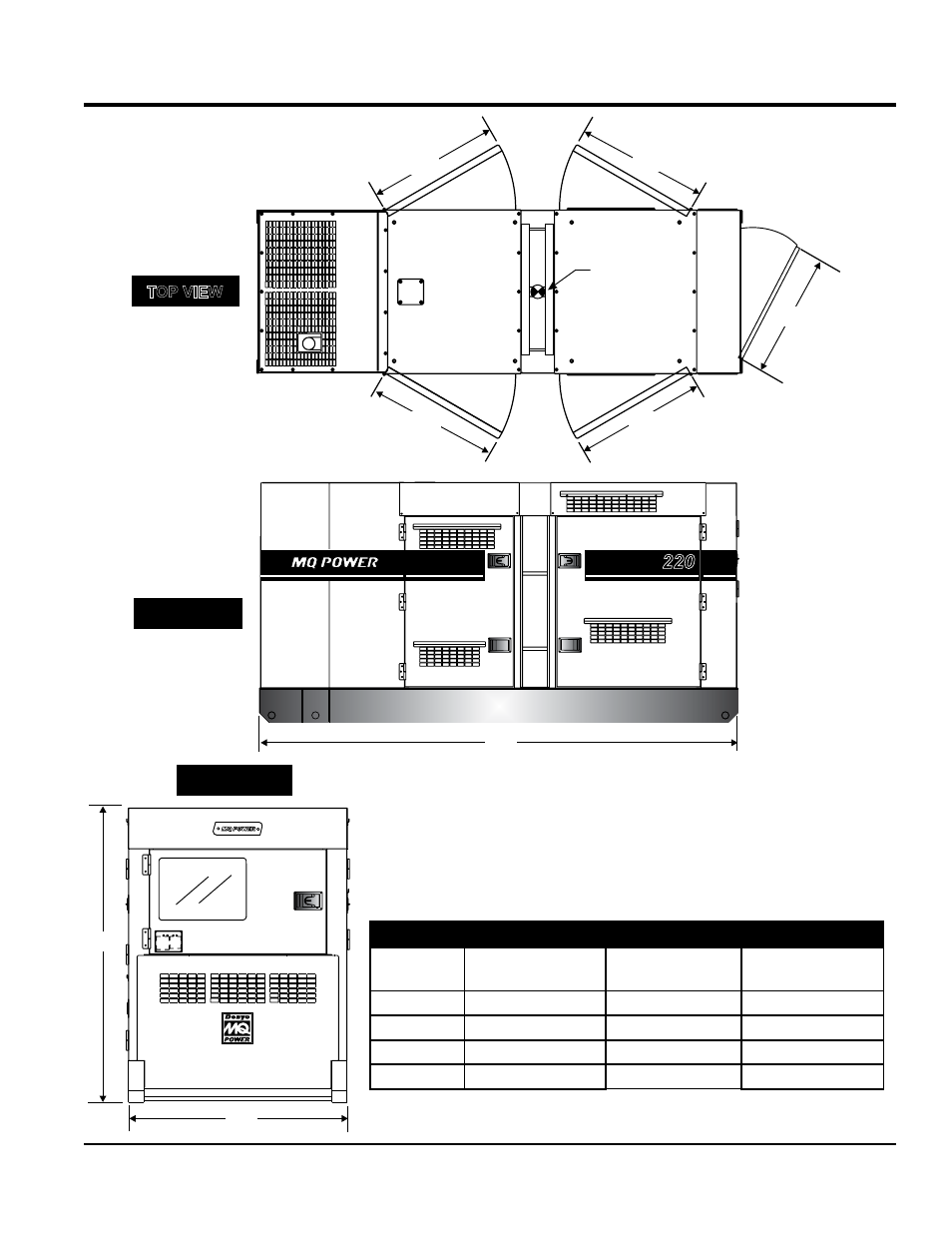

Figure 1. Dimensions
