34 PCI ESCON Adapter Installation Guide
11. Use your mouse to select TCP/IP Direct Connect from the list of Adapters bound
to TCP/IP (Figure 5-20).

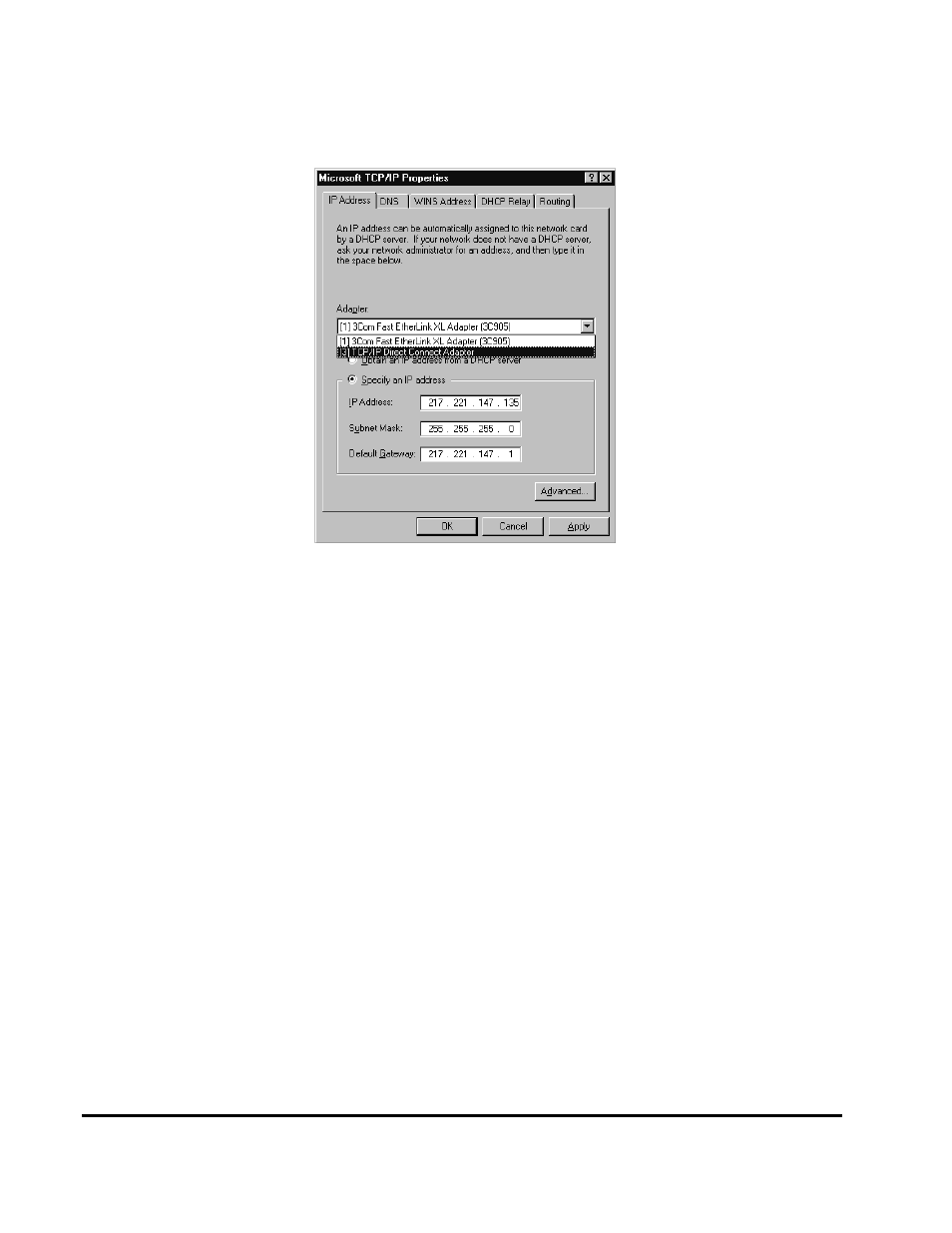

Figure 5-20. Select TCP/IP Direct Connect
12. Enter an IP Address and Subnet Mask; defining the address that the mainframe
will use to communicate with the server (Figure 5-21). Note that the mainframe
IP address and this address must be in the same subnet. Also remember that if
Microsoft IP forwarding is to be used in the server, this IP address must be in a
different subnet than the LAN adapter(s) that Windows NT is to route between.
Generally, there is no need to enter a Default Gateway since this is a point-to-
point connection. However, in some environments it may be necessary to specify
the mainframe’s IP address as the default gateway.
