TCP/IP Direct Connect 25

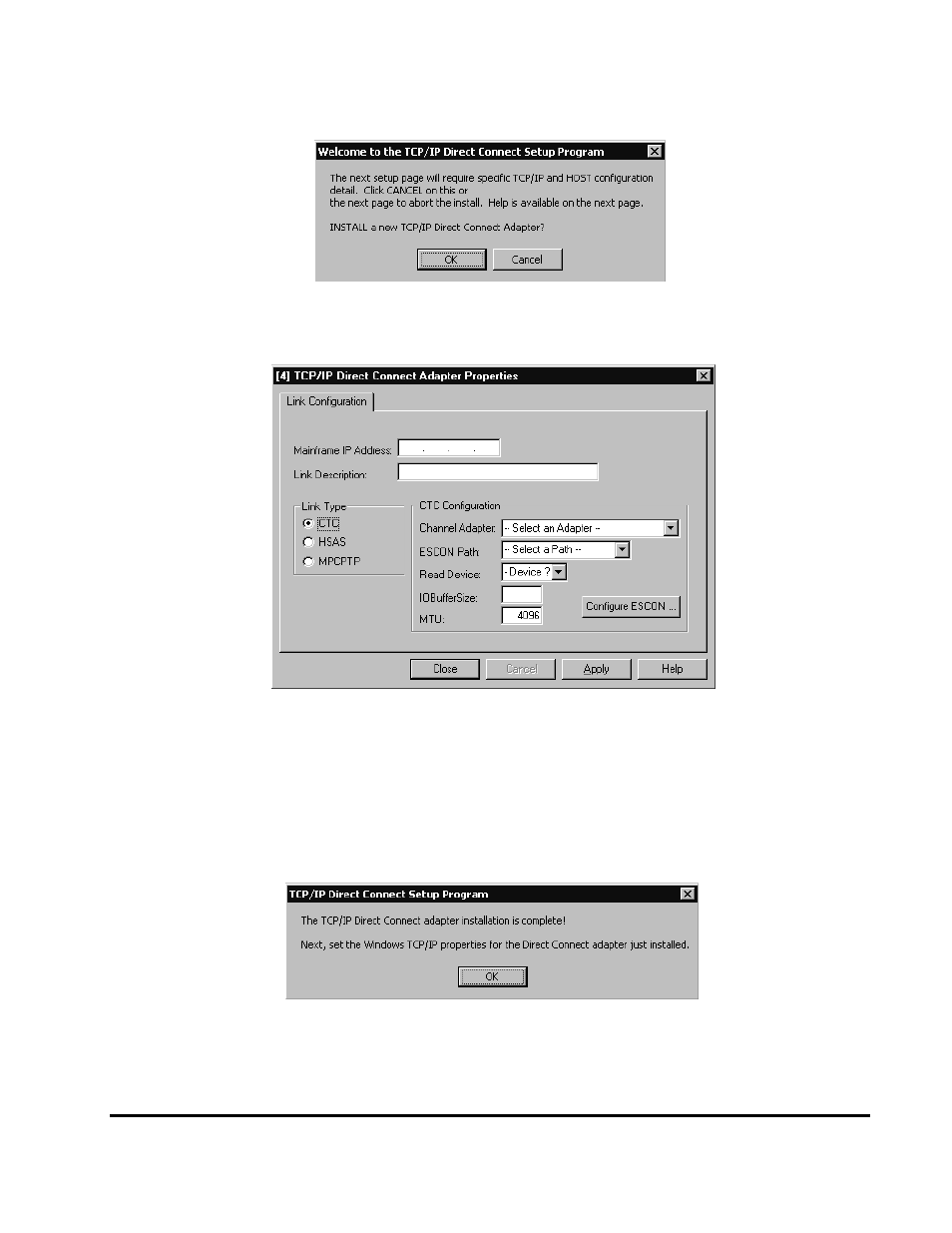

2. Click OK when Setup displays it’s Welcome dialog (Figure 5-4).
Figure 5-4. TCP/IP Direct Connect Install Confirmation
3. The TCP/IP Direct Connect Properties dialog will display (Figure 5-5).
Figure 5-5. TCP/IP Direct Connect Properties
You must define the Link type and Link properties in order to complete the
install. Please refer to the Link Configuration section later in this chapter.
4. Once you have defined the Link click OK to continue the install. Installation may
take several minutes depending on your server. An installation complete message
will tell you once the software has been installed (Figure 5-6). Click OK to exit.
Figure 5-6. Installation Complete
5. You must now define TCP/IP properties associated with this link. Remember
Windows views each TCP/IP Direct Connect Link as a network adapter. In the
Network and Dial-Up Connections panel there is now a new Local Connection
