Multi-Tech Systems 40-01459-D0-001 - Manual (Page 37)

TCP/IP Direct Connect 31

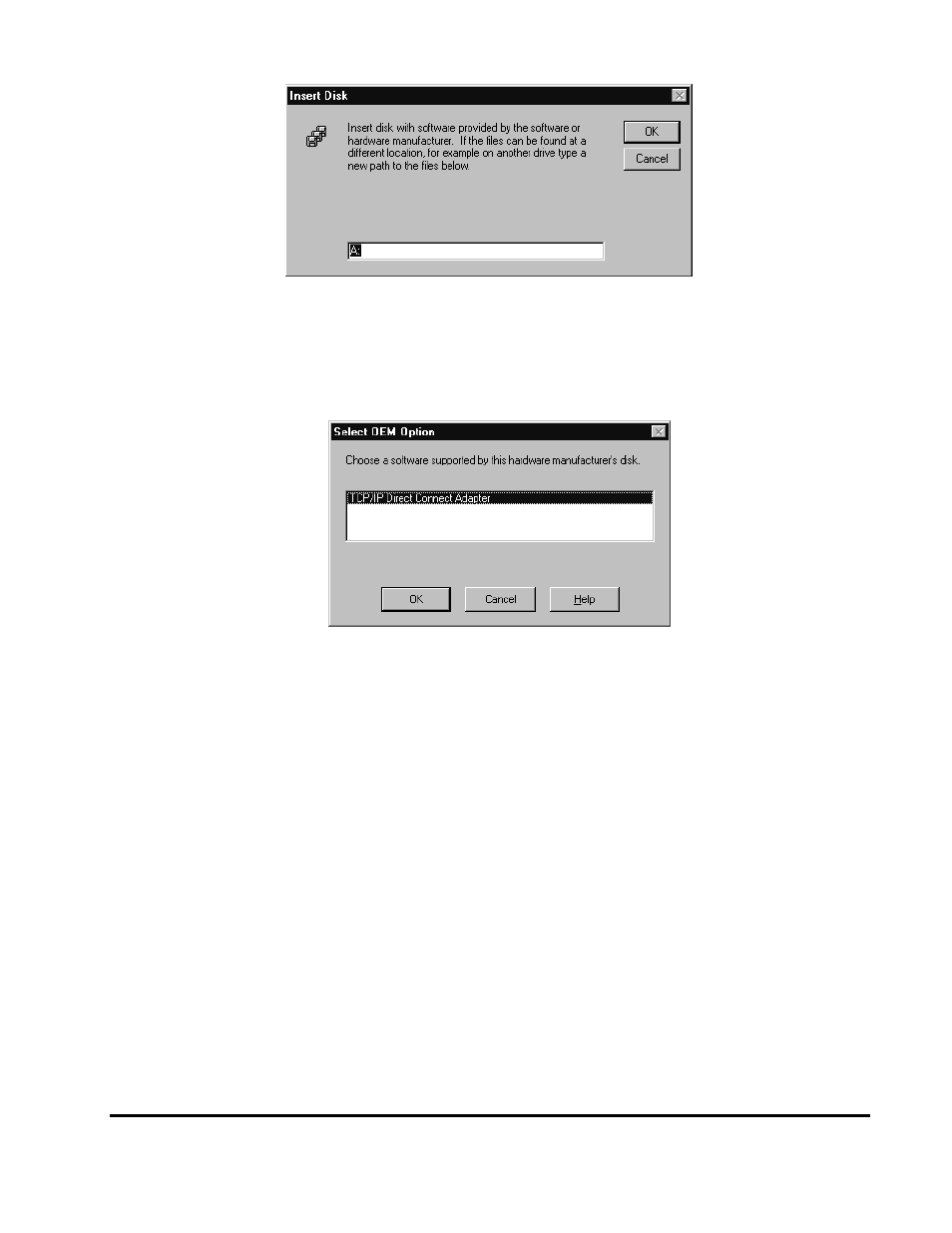

Figure 5-14.Insert Disk
5. Insert the TCP/IP Direct Connect diskette into your floppy. Click OK.
6. The Select OEM Option dialog (Figure 5-15) will display TCP/IP Direct Connect.
Click OK to install the driver.
Figure 5-15. Select OEM Option
7. The TCP/IP Direct Connect Adapter Properties screen for Channel-to-Channel
(CTC) link type (Figure 5-16) will display. If MPC+ for Windows NT is installed
on the server HSAS and MPCPTP link types will be active. Otherwise only the
CTC link type will be available. Please refer to the “MPC+ for Windows NT
Installation Guide” for information on configuring HSAS and MPCPTP.
