ESCON Configuration 21
device A0 and A1, enter 2. Optionally enter a Description to be associated with this
device.
Remember that for TCP/IP Passthrough and TCP/IP Direct Connect CTC connections
you must define two consecutive devices. Additionally for TCP/IP Passthrough the
first device must be even numbered (00, 02, 20, 40, A0, etc.)
Press Add to add the device(s) to the ESCON configuration file. The ESCON
Adapter Properties dialog will re-display, now showing the new devices (Figure 4-8).

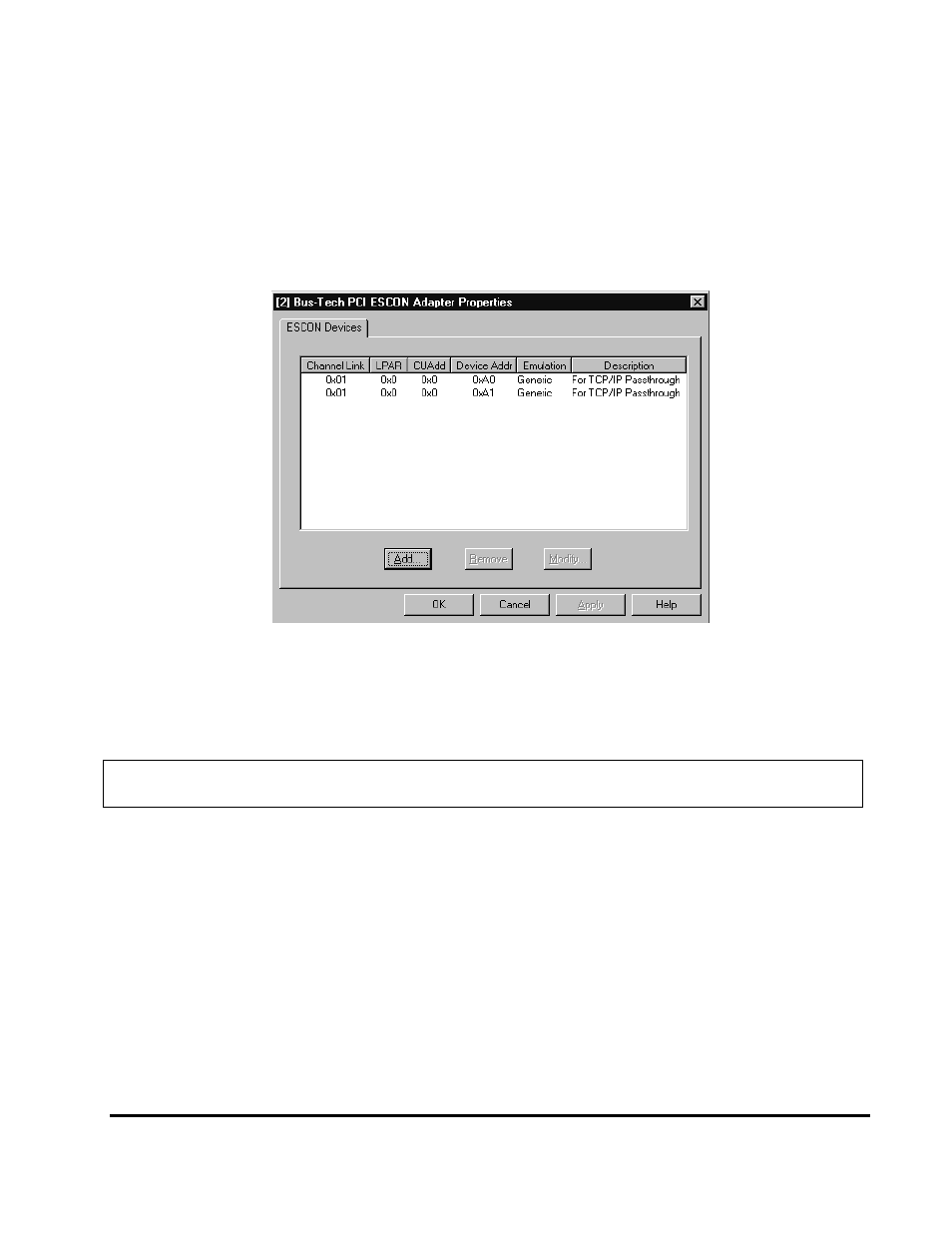

Figure 4-8. Adapter Properties with New Devices
To remove a previously defined device, highlight the device and then click Remove.
To edit a previously defined device, highlight the device and then click Modify.
To save a newly created configuration, click OK.
NOTE: ESCON configuration changes do not take effect until the Server has been hard
RESET (or Power Off and Power On).
