2 RASCard Description
CommPlete Communications Server 9
J2 Power Connector
This connector supplies power and ground to the RASCard.
External Connectors
The RASCard has four connectors that are accessible from the rear of the CommPlete
chassis.
J22 E1 Alarm
This RJ-11 jack can be used to connect an external alarm system
(not supplied by Multi-Tech) to monitor the online or alarm
condition of the E1 link.
J3 COM1
COM1, a male DB-9 connector, is the RASCard’s serial port. It can
be used to connect a dumb terminal to the RASCard for
configuration, or to connect a pointing device such as a mouse or
trackball.
J35 Video
This female DB-15 connector provides video output for a standard
VGA or SVGA display monitor.
J11 Keyboard
This female 6-pin mini DIN connector can be used to connect a
keyboard to the RASCard.

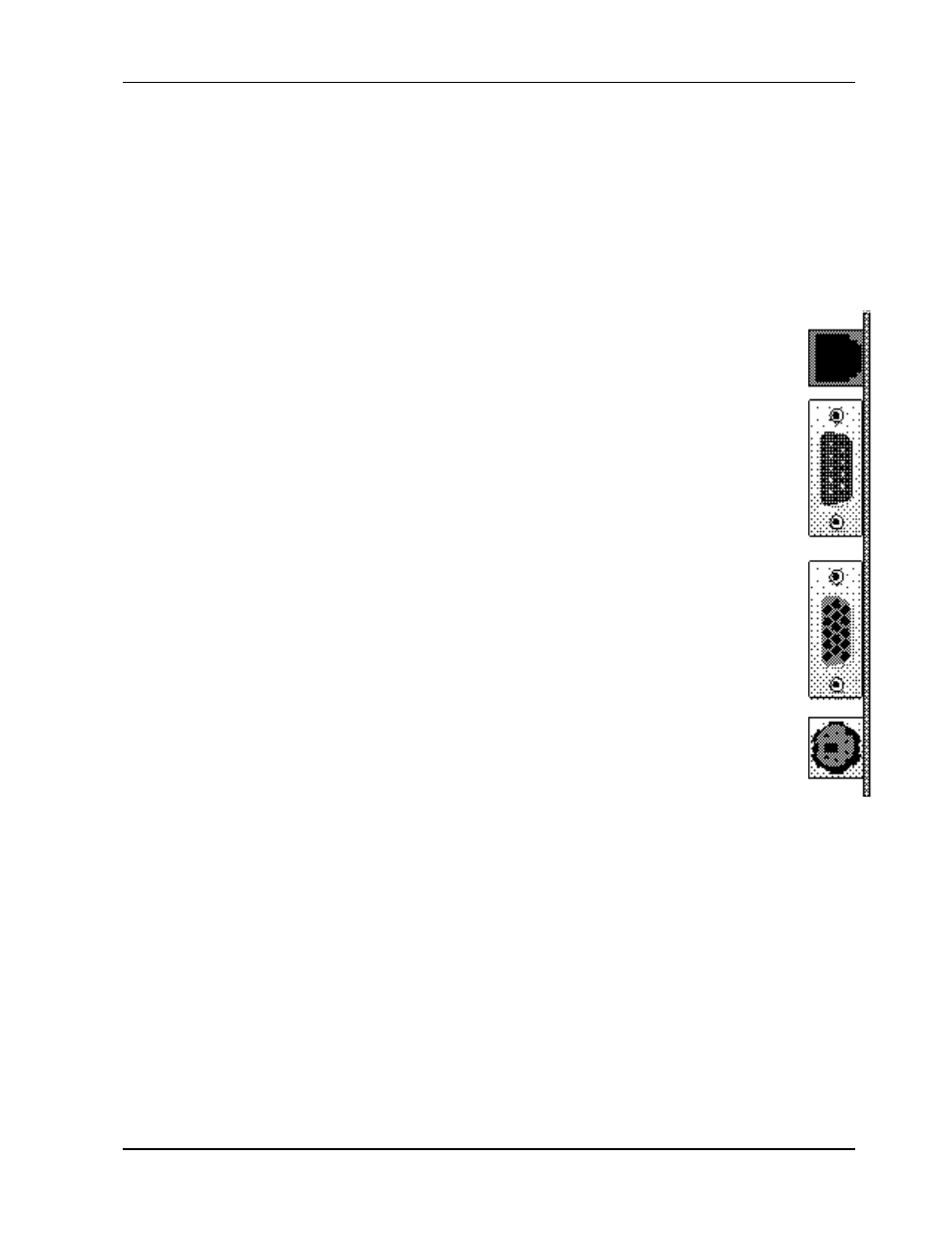

Figure 2. External
connectors.
