Monessen Hearth B-Vent Specialty Gas Fireplace System DESIGNER SERIES - Manual (Page 8)

23 1/8
FRAMING FRAMING
DIM. FOR DIM. FOR
SEE THRU SEE THRU
42 3/8 42 3/8
42 1/2 42 1/2
(FRAMING MIN.) (FRAMING MIN.)
(ALL UNITS) (ALL UNITS)
1
1/2 MIN.
1/2 MIN.
CLEARANCE
CLEARANCE 24 5/8 24 5/8
24 1/8 24 1/8
22 1/8 22 1/8 1
4 1/2 4 1/2
12 1/16 12 1/16
19 19
9 3/4 9 3/4
7 1/2 7 1/2
22 1/4 22 1/4
TOP VIEW TOP VIEW
37 1/4 37 1/4
1 36 36
38 38
39 39
7 1/2 7 1/2
1
1/2 1/2
(FRAMING MIN.) (FRAMING MIN.)
(PENINSULA & CORNER) (PENINSULA & CORNER)
(FRAMING MIN.) (FRAMING MIN.)
(SEE-THRU) (SEE-THRU)
38 1/2 38 1/2
6" B-VENT FLUE 6" B-VENT FLUE
4" O.A. INLET 4" O.A. INLET
40 1/4 40 1/4
(CORNER, (CORNER,
SEE-THRU,
SEE-THRU,
AND PENINSULA)
AND PENINSULA)
MIN. CLEARANCE MIN. CLEARANCE
SIDE VIEW SIDE VIEW
(BAY AND (BAY AND
CORNER UNIT)
CORNER UNIT)
FRONT VIEW FRONT VIEW
It is best to frame your fireplace after it is positioned and the vent system installed. Use 2x4’s and frame
to local building codes.
To install the fireplace facing flush with the finished wall, position the framework to accommodate the
thickness of the finished wall.
It is not necessary to install a hearth extension with this fireplace system.
The junction box should be wired to the electrical system at the time of installation of the fireplace.
Wiring must be performed by a qualified person in a manner to conform with National Electrical Code
ANSI/NFPA 70 and all applicable local codes.
C
AUTION
: A
LWAYS CHECK AND MAKE SURE POWER IS
OFF
BEFORE ATTEMPTING TO INSTALL OR SERVICE ANY ELECTRICAL
WIRING OR COMPONENTS
.
F
RAMING
I
NSTRUCTIONS
7
When the fireplace is installed directly on carpeting, vinyl tile or other combustible material (other than
wood flooring) it shall be installed on a metal or wood panel extending the full width and depth of the
fireplace.
Provide adequate ventilation air.
Provide adequate accessibility clearance for servicing and operating the fireplace.
Never obstruct the front opening of the fireplace.

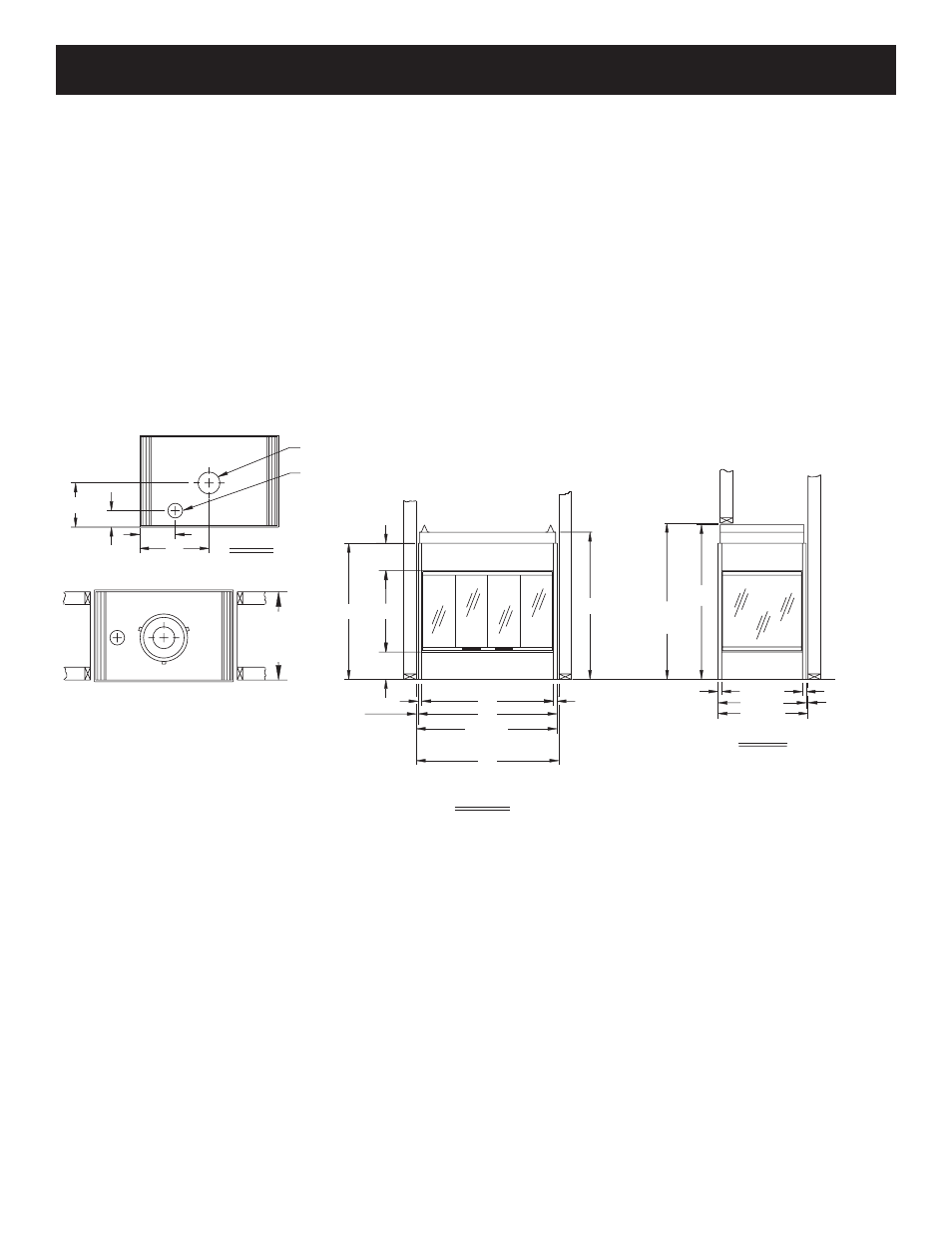

Clearance to Combustible Construction. See Figure 2.
Sides - 1/2 inches Top - 0 to Top of Spacers Bottom - 0 inches
Back - 1/2 inches Front - 37 inches
F
IGURE
2
53D9019.
Rev 3 11/07
