15 C
OMBUSTION
A
IR
P
RECAUTIONS
N
OTE
: The use of outside air for combustion is optional unless required by building codes. It is only necessary to
supply outside combustion air to one side of the fireplace. Use the model OAC4 combustion air kit.
1. Extremely long runs and numerous turns in the duct leading from the fireplace to the combustion air assembly
should be avoided. These conditions will increase the resistance to the free flow of air through the duct. Refer
to Figure 9 for methods of installing the outside air for combustion assemblies.
2. The combustion air assembly should be located at an exterior location, which is not likely to be accidentally
blocked in any manner. The assembly should be located above the snow line to prevent blockage by snow
accumulation.
3. The combustion air inlet assembly should never be mounted in a garage or storage area where combustible
fumes such as gasoline might be drawn into the fireplace.
4. Combustion air can be drawn from the crawl space under a house when an adequate supply of air is provided
by open ventilation.
5. Do not take combustion air from attic space or garage space.
53D9019.
Rev 3 11/07

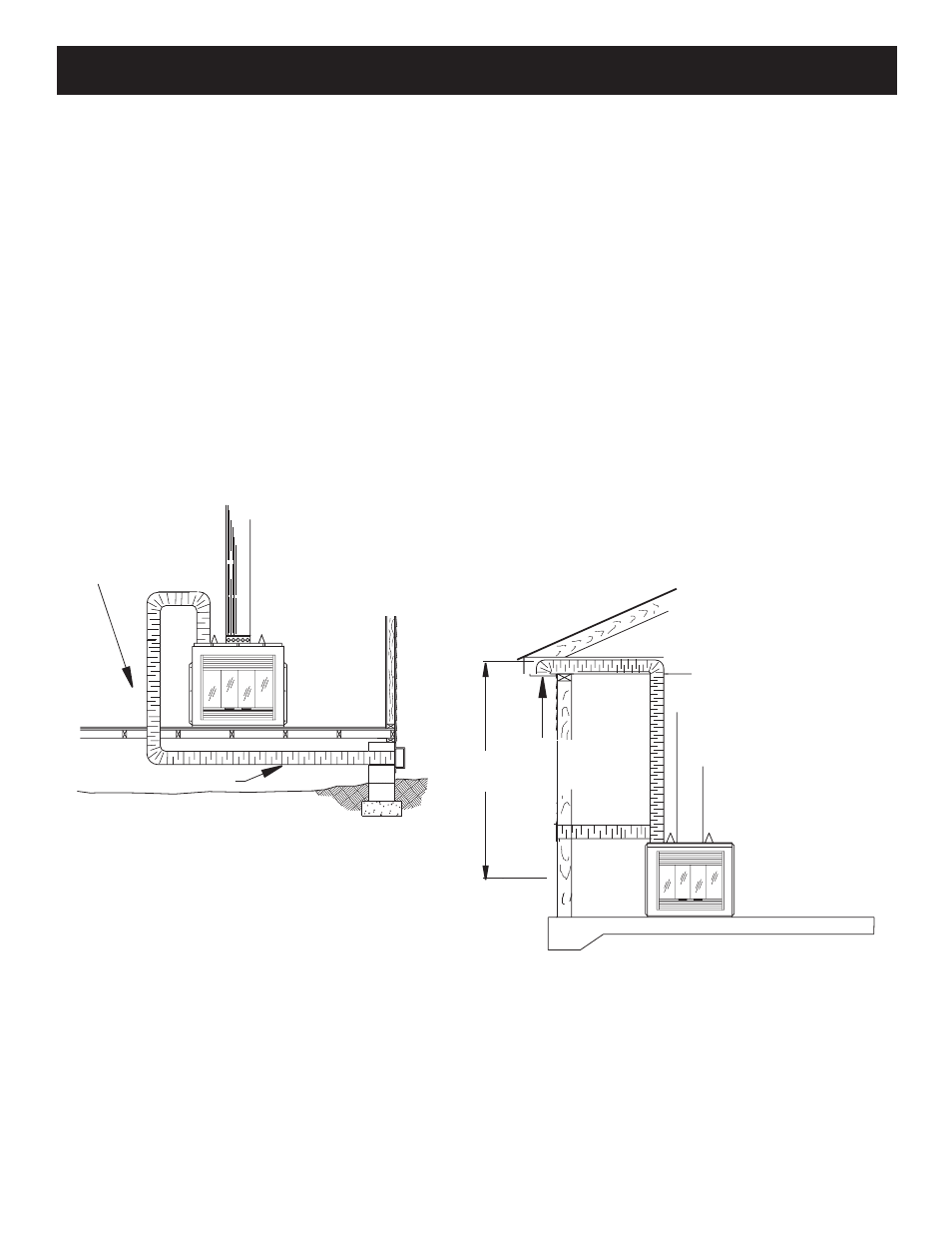

CONCRETE SLAB INSTALLATION CONCRETE SLAB INSTALLATION
(OPTIONAL OUTSIDE AIR RUNS)
(OPTIONAL OUTSIDE AIR RUNS)
INLET GRILLE INLET GRILLE
IN SOFFIT
IN SOFFIT
(OVERHANG)
(OVERHANG)
8' MAX. 8' MAX.
INSTALLATION ABOVE BASEMENT INSTALLATION ABOVE BASEMENT
OR CRAWL SPACE
OR CRAWL SPACE
TO OUTSIDE WALL TO OUTSIDE WALL
DUCT EXTENDED DUCT EXTENDED
TO MISS JOIST
TO MISS JOIST
