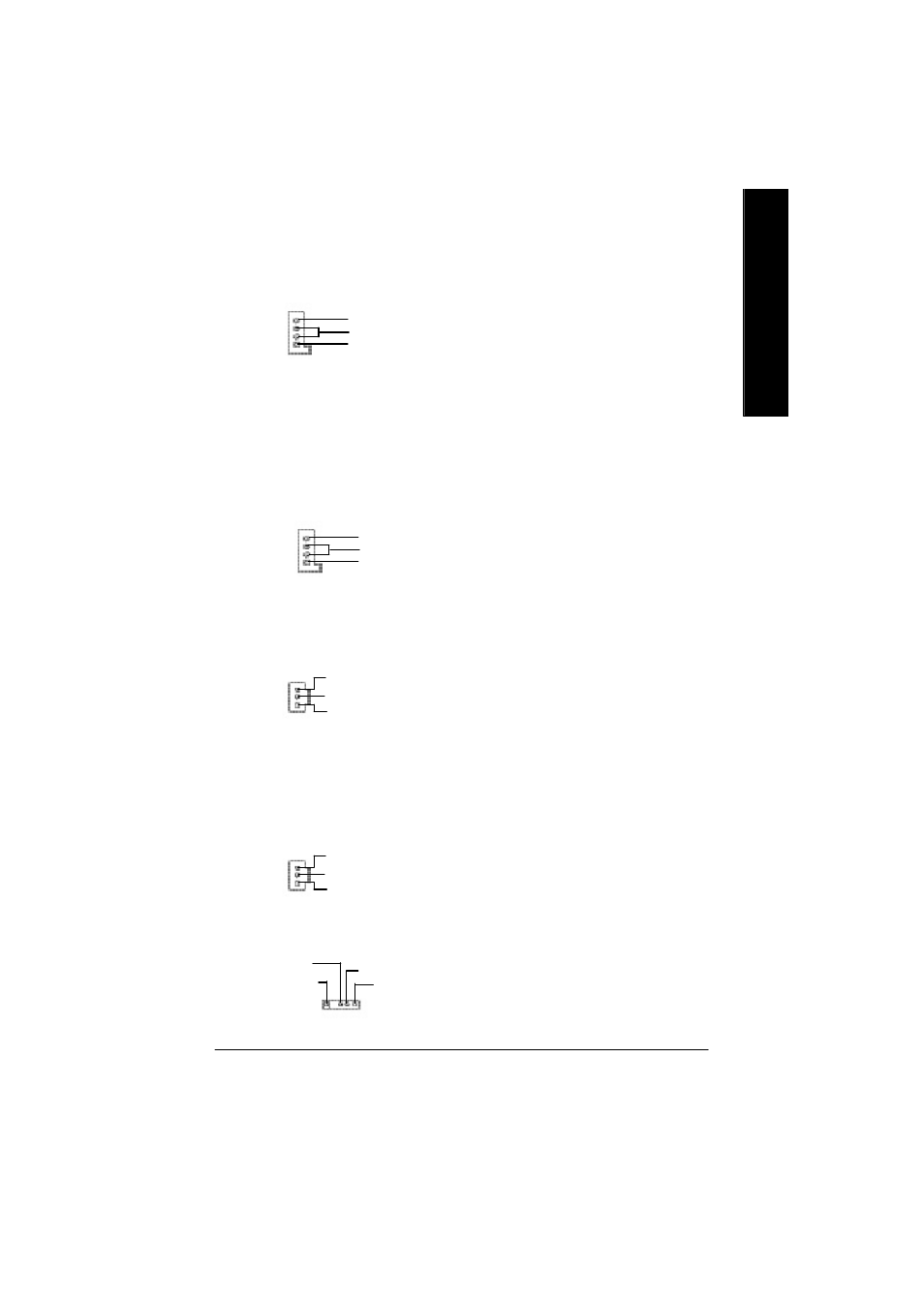

15)CD_IN (CD IN)
16)AUX_IN ( AUX In Connector)
AUX-R
GND
AUX-L
Ø Connect CD-ROM or DVD-ROM audio out
to the connector.
Ø Connect other device(such as PCI TV Tunner
audio out)to the connector.
CD_IN
1
CD-R
CD-L
GND
1
17)SPDIF (SPDIFOut) Ø The SPDIF output is capable of providing digital
audio to external speakers or compressed AC3
data to an external Dolby Digital Decoder. Use
this feature only when your stereo system has
digital input function.
18)SPDIF_IN Ø Use this feature only when your device has
digital output function.
Ø Be careful with the polarity of the IR
connectorwhile you connect the IR. Please
contact you nearest dealer for optional IR
device.
19)IR
IR Data Output VCC(+5V)
IR Data Input
GND
1
1
VCC
SPDIF OUT
GND
1
VCC
SPDIF IN
GND
