27

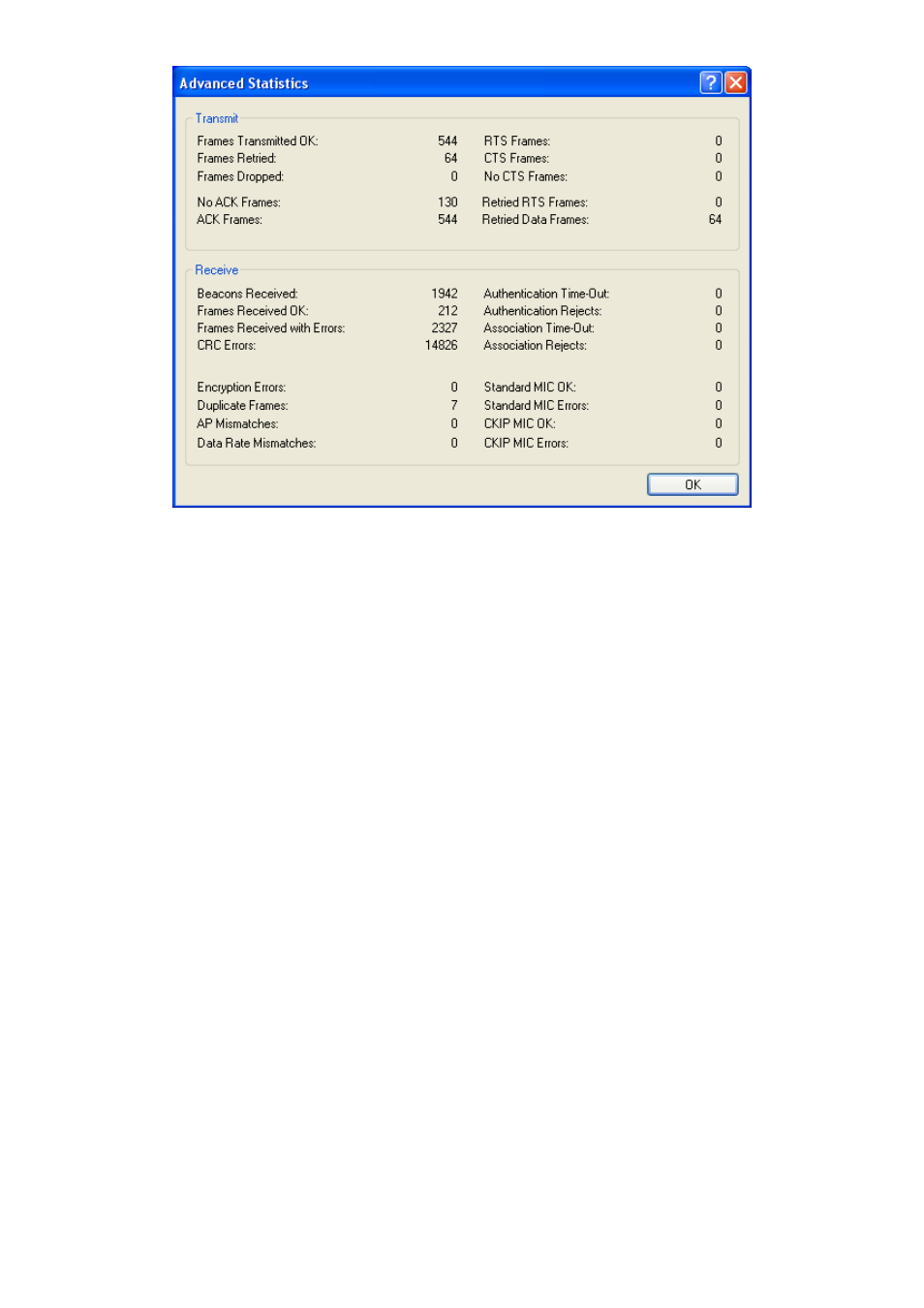

Figure 3-16. Advanced Statistics Window
Transmit
Frames Transmitted OK – The number of total frames transmitted or received
without errors.
Frames received – The number of frames receive by the client.
Frames Dropped – The number of frames dropped by the client.
No ACK Frames – Frames which were not acknowledged by the client.
ACK Frames – Frames acknowledged by the client.
RTS Frames – Request to Send, Client sends RTS frame to AP.
CTS Frames – Clear to Send. Client receives CTS frame from AP.
Receive
Beacons Received – Beacon packets received.
Frames Received OK – The number of frames received without errors.
Frames Received with Errors – The number of frames not received due to errors.
Duplicate Frames – Number of duplicate frames received
AP Mismatches – MAC address/public key combination mismatches. Sometimes
indicative of hacking/spoofing.
Data Rate Mismatches - The number of times the client adapter tried to associate to
an access point but was unable to because the adapter's data rate was not supported
by the access point.
