26
3.4. Diagnostics Tab
Basic transmit and receive statistics are available here (see Figure 3-15), with more
advanced statistics available from the Advanced Statistics button.

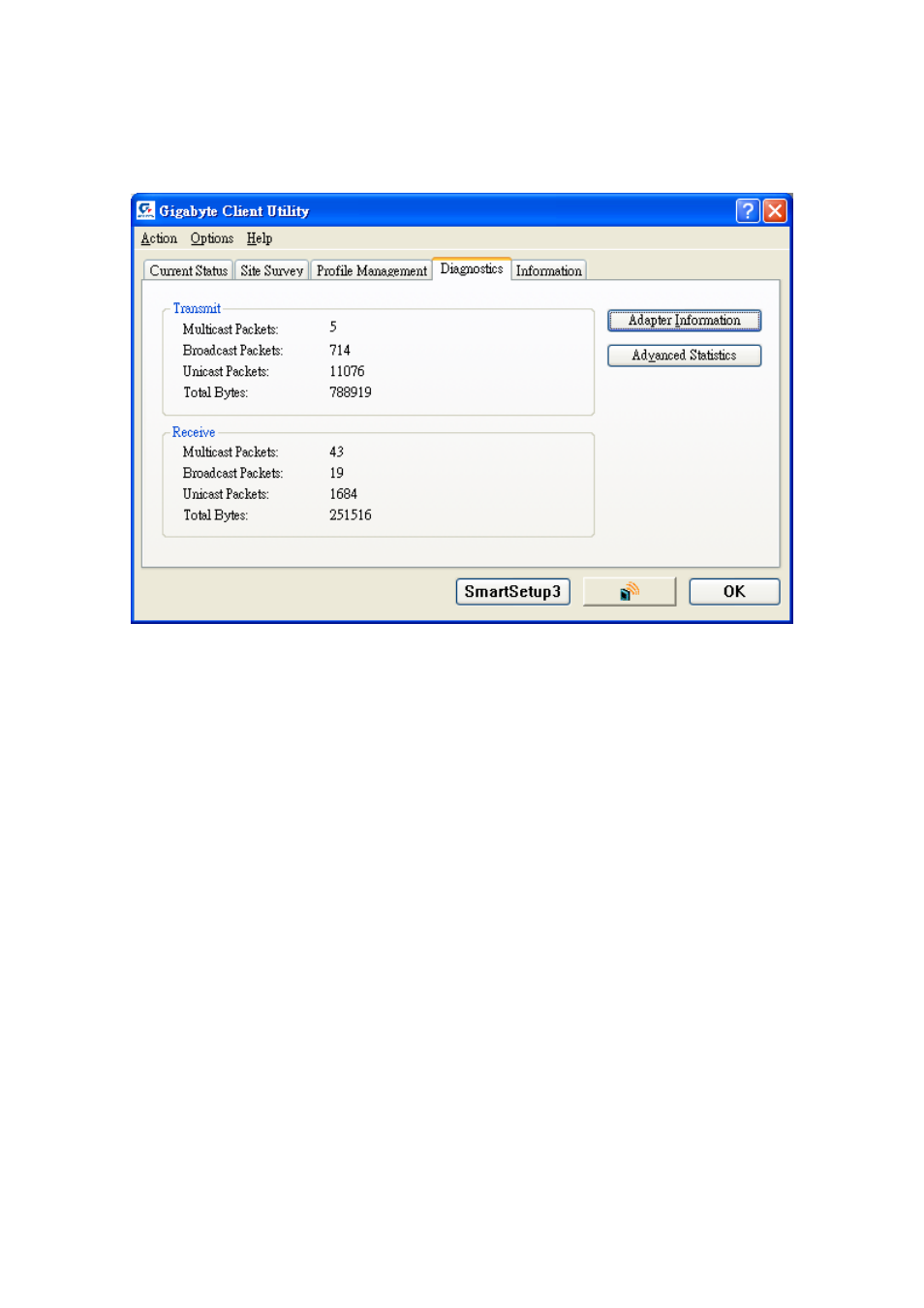

Figure 3-15. Diagnostics Tab
Transmit:
Multicast Packets – Number of packets sent to a multicast address
Broadcast Packets – Number of packets sent to a broadcast address
Unicast Packets – Number of packets sent to a unicast address
Total Bytes – Total bytes transmitted
Receive:
Multicast Packets – Number of packets received as a multicast address
Broadcast Packets – Number of packets received as a broadcast address
Unicast Packets – Number of packets received as a unicast address
Total Bytes – Total bytes received
Advanced Statistics
More advanced statistics about your network are available in the Advanced Statistics
window (Figure 3-16).
