GA-73PVM-S2H Motherboard

- 32 -

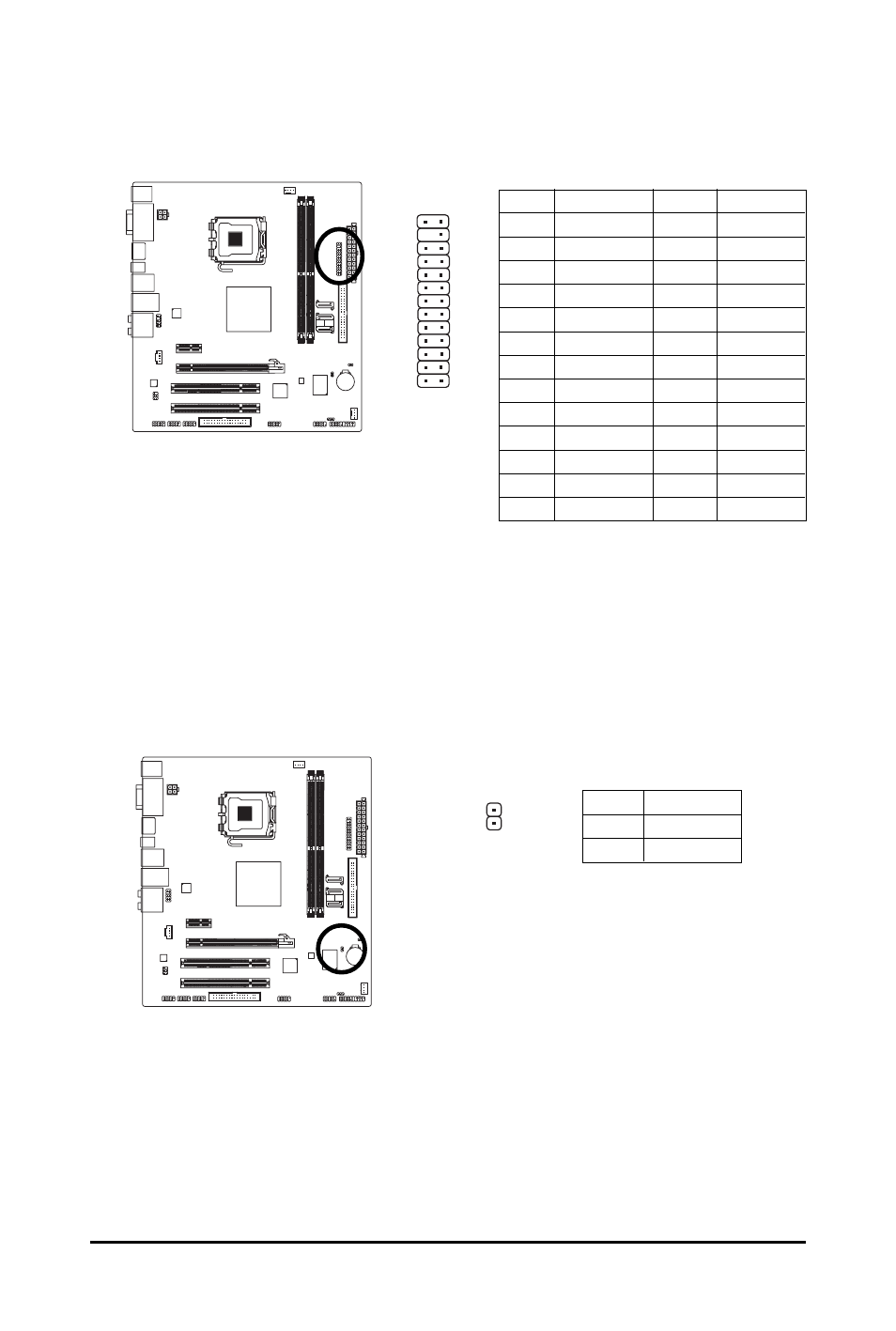

17) LPT (Parallel Port Header)

The LPT header can provide one parallel port via an optional LPT port cable. For purchasing the
optional LPT port cable, please contact the local dealer.

Pin No.

Definition

1

STB-

2

AFD-

3

PD0

4

ERR-

5

PD1

6

INIT-

7

PD2

8

SLIN-

9

PD3

10

GND

11

PD4

12

GND

13

PD5

Pin No.

Definition

14

GND

15

PD6

16

GND

17

PD7

18

GND

19

ACK-

20

GND

21

BUSY

22

GND

23

PE

24

No Pin

25

SLCT

26

GND

25

26

1

2

18) CI (Chassis Intrusion Header)

This motherboard provides a chassis detection feature that detects if the chassis cover has been
removed. This function requires a chassis with chassis intrusion detection design.

Pin No.

Definition

1

Signal

2

GND

1
