38 309388

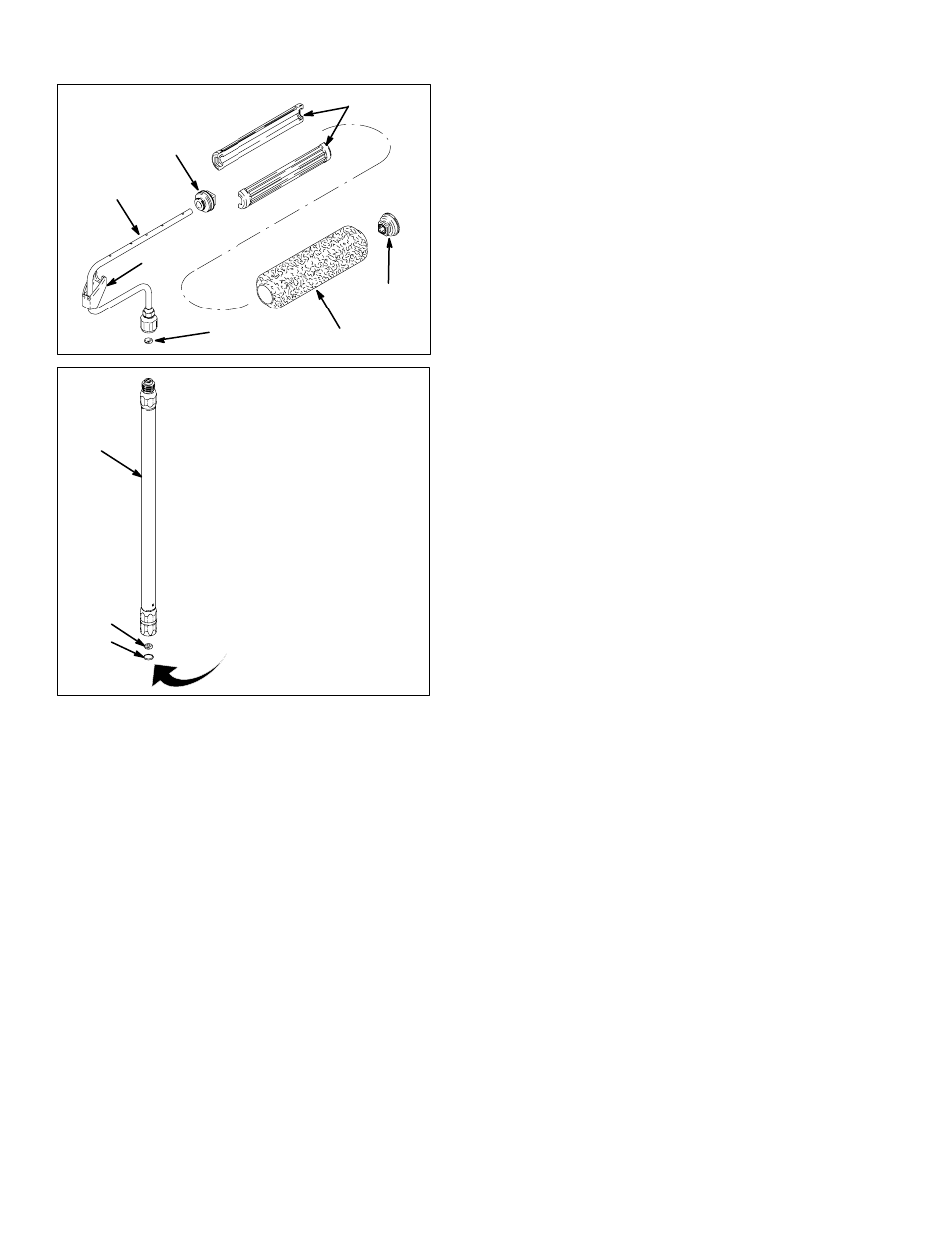

Pressure Roller Assembly Model 244279
d
m
k
f
e
g
b
c
HINT:
When replacing gasket k*) and
o-ring (m*), position o-ring first,
then press gasket into place.
a
78
79
h
Parts List
Ref.
No.
Part No. Description Qty.
78 244271 FRAME, roller includes a, b, c, d, e, f 1
a FRAME
b 246277 CAP, end (includes seal, retainer, and
o–ring)
1
c 15B065 DIFFUSER 2
d 197106 CLIP, roller 1
e 107590 ROLLER, cover, 9 inch,
1/2 in. (13 mm) nap
1
f 115524 GASKET 1
g 245999 CAP, end (includes seal and retainer) 1
79 232122 EXTENSION, includes h, k, m
h EXTENSION, 20 in. (50 cm) 1
k 162863 GASKET 1
m 114049 O–RING 1
Additional Roller Covers
The following pressure roller covers are available at
your local distributor:
107590 9 in. (23 cm); 1/2 in. (13 mm) nap
107591 9 in. (23 cm); 3/4 in. (19 mm) nap
107592 9 in. (23 cm); 1-1/4 in. (32 mm) nap
