JX827WN
installation
Installation
Micr owav e Oven
Tools and materials
required:
• Accessory kit JX827WN for
in-wall installation of
ZEM200WV
• 2 Phillips head screwdrivers
(#1 & #2)
•Drill and 3/32" drill bit
• Centerpunch or nail
• Pencil and ruler

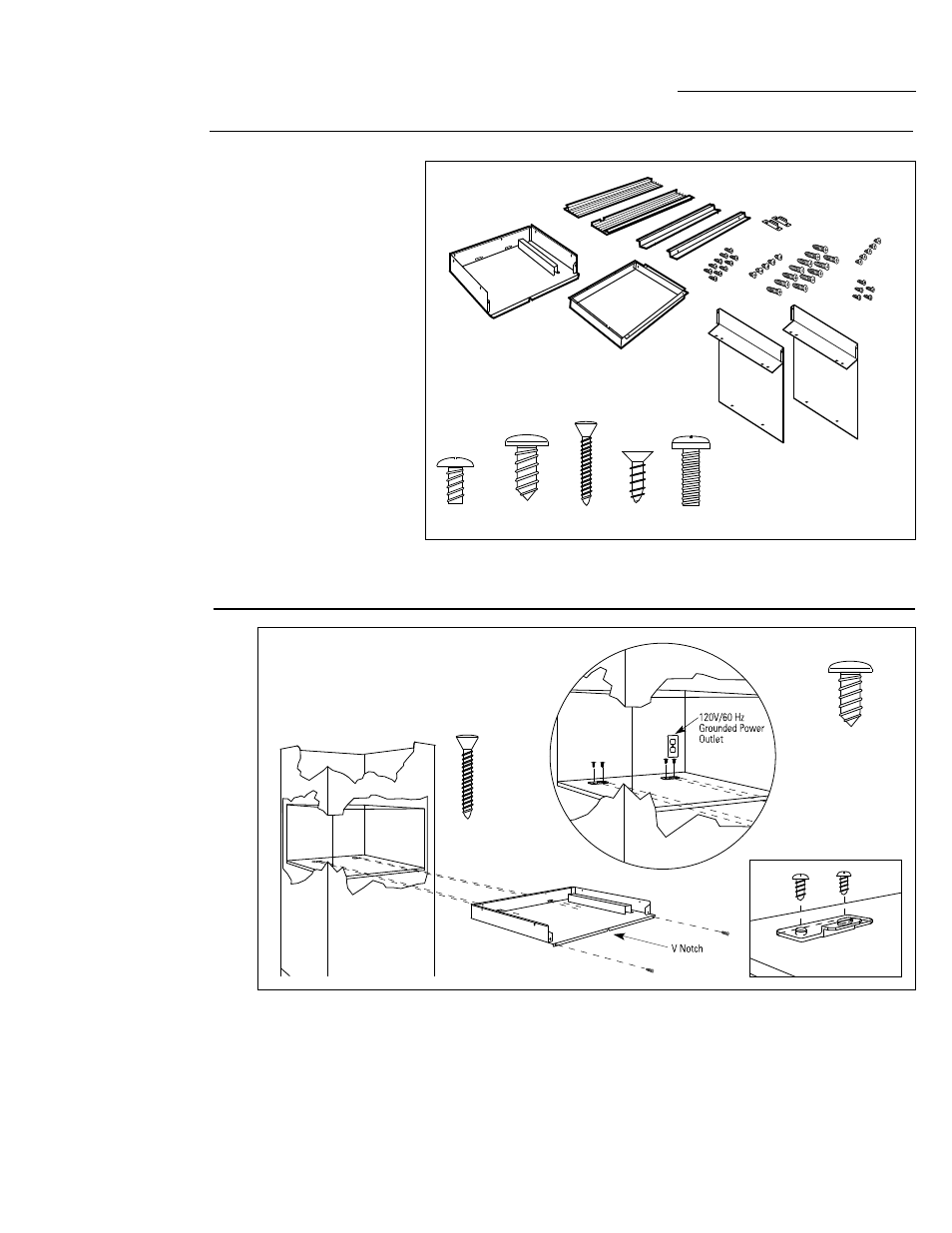

JX827WN Parts List
1. Base Pan
2. Rear Duct
3. Side Covers (2)
4. Top Trim
5. Bottom Trim
6. Side Trims
7. Rear Holddown Brackets
Screws A (9 required 1 extra)
B (4 required 1 extra)
C (10 required 2 extra)
D (4 required 1 extra)
E (4 required 1 extra)
• Slide two rear holddown brackets into slots in the
rear of base pan. Tongues should be sticking into
the base pan and centered in the slot.
• Mark and drill four 3/32" holes.
• Mount both brackets.
• Remove two screws in the base pan front flange and
slide the base pan straight out.
• Set the base pan into cabinet cutout and center left
and right. Front flange should be pushed back
against front wall, flush with opening.
• Mark the opening precisely at the center line.
• Drill two 3/32" diameter holes into the base
supporting structure, using the two holes in the base
pan front flange as a guide.
• Drive two screws into the base pan front flange to
temporarily hold in place.
8
Screw A Screw B Screw E Screw D Screw C
1
Parts Inventory
B
2
4
5
6
C
A
E
D
7
3 3
Screw B
Screw C
