Installation Preparation
Microwave Oven
4
ZEM200WV
In-wall
installation
Note: When installed, trim
kit will require wall space
26-1/8" W x 16 -1/4" H for
clearance.
Within opening of appropriate dimensions:
• Install a level base of plywood:
– Flush with lower edge of opening.
– Entirely covering floor of opening.
• 3/8" thick (min.) plywood must be supported by
2" x 4" or 1" x 2" equivalent runners on all sides.
• Finished floor must support a minimum of 100
pounds.
• JX827WN accessory kit may be assembled and
installed at this time. Refer to “Installation” for
instructions.
The JX827WN accessory kit provides trim strips to
conceal all raw edges of cabinets.
Tools and materials required:
• 3/8" thick plywood (min.)
• 2" x 4" lumber
• Saw
• Screws and screwdriver or other hardware for construction of
plywood base.

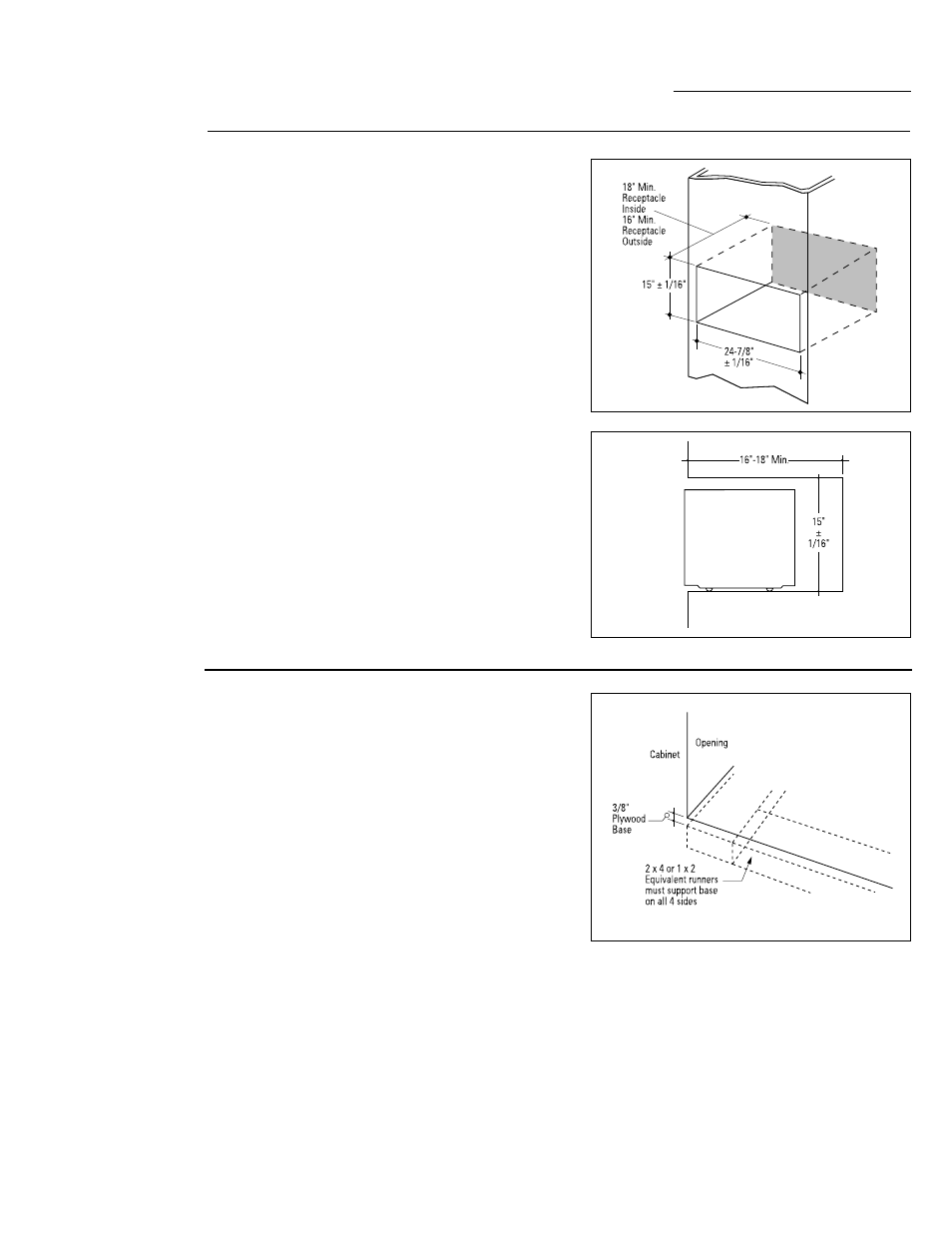

Opening for model ZEM200WV must be:
• 24 -7/8"
±
1/16" wide.
• 15"
±
1/16" high.
• With approximately 1-1/4" for oven trim overlap
around all edges of opening.
• Deep enough to accommodate electrical receptacle
and permit adequate air circulation for proper
venting:
– Minimum 18" deep with receptacle inside cutout.
– Minimum 16" deep with receptacle outside cutout.
• Height from floor may vary according to preference
of user.
