• With template secured in place, check again that hole
center lines on Template 2 are straight, and that
distance from right to left hole center measures
distance shown on template.
• Drill mounting holes:
– Use of safety glasses is recommended to protect the
eyes.
– Empty cabinet and remove delicate items from
adjacent cabinets.
– Use center punch or nail to make an indentation
for centering the drill bit.
– Holding drill straight, drill through Template 2 at
the four black drilling holes indicated on template.
– Remove template and clean drill holes.

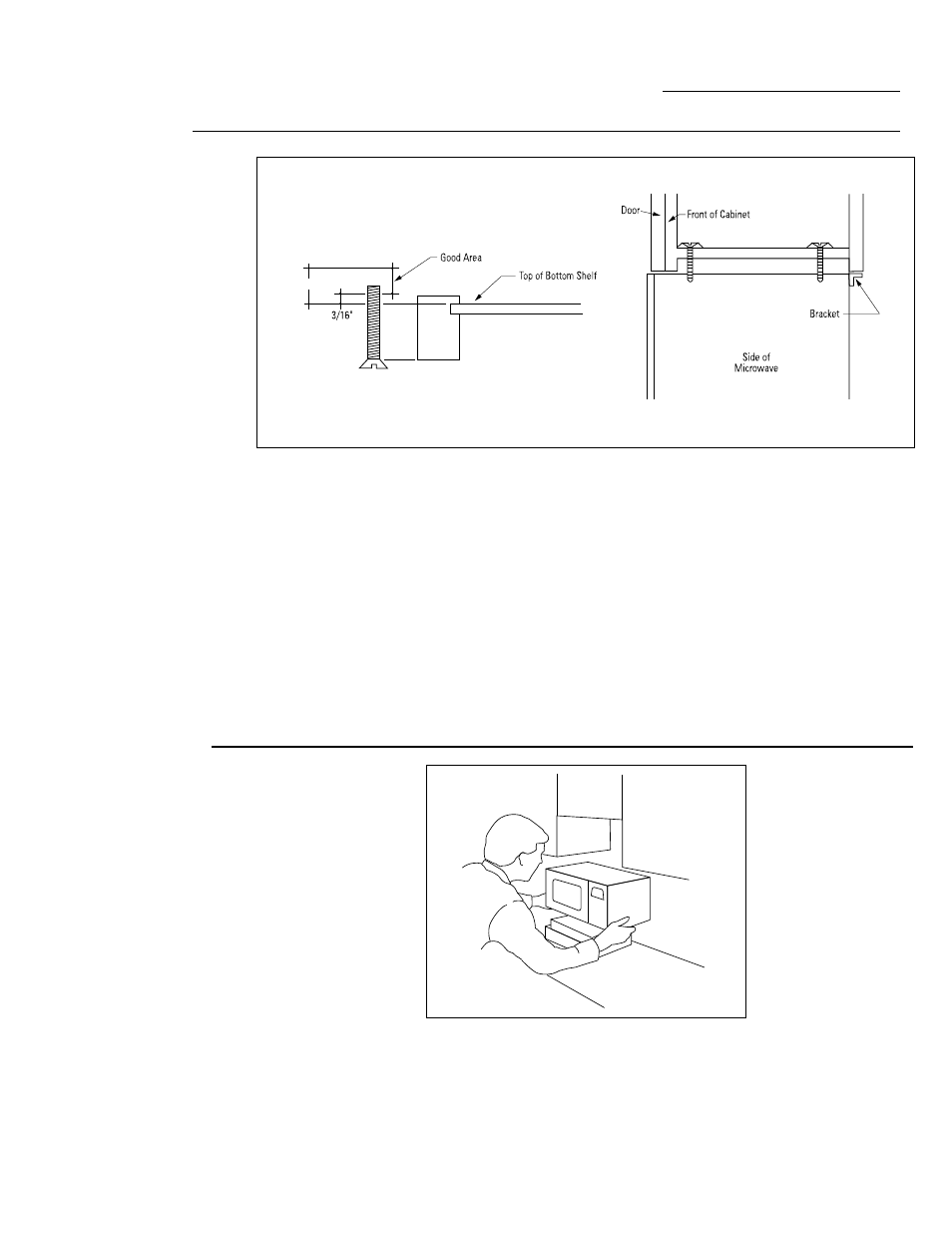

• Select four bolts—one of each size—from parts
package.
• Hold each bolt against cabinet front rail.
• Select bolt that extends beyond top of bottom shelf
by 3/16" to 13/16".
– Correct bolt length is important. If bolt is too
short, it won’t reach oven; if bolt is too long, oven
will not be drawn up tight to cabinet.
• From inside cabinet, insert four bolts, all same
length, through mounting straps and then into
drilled holes of cabinet shelf.
• Place solid support, such as a stack of books, under
oven to raise it close to cabinet bottom.
• Align mounting holes on oven with bolts.
• Lift oven, and insert bolts into mounting holes.
• Tighten bolts alternately to draw oven up evenly and
secure it to cabinet bottom.
• Remove oven’s rubber feet and save for future use.
• Plug power cord into receptacle.
