Assemble
trim kit
frame
Install
trim kit
frame

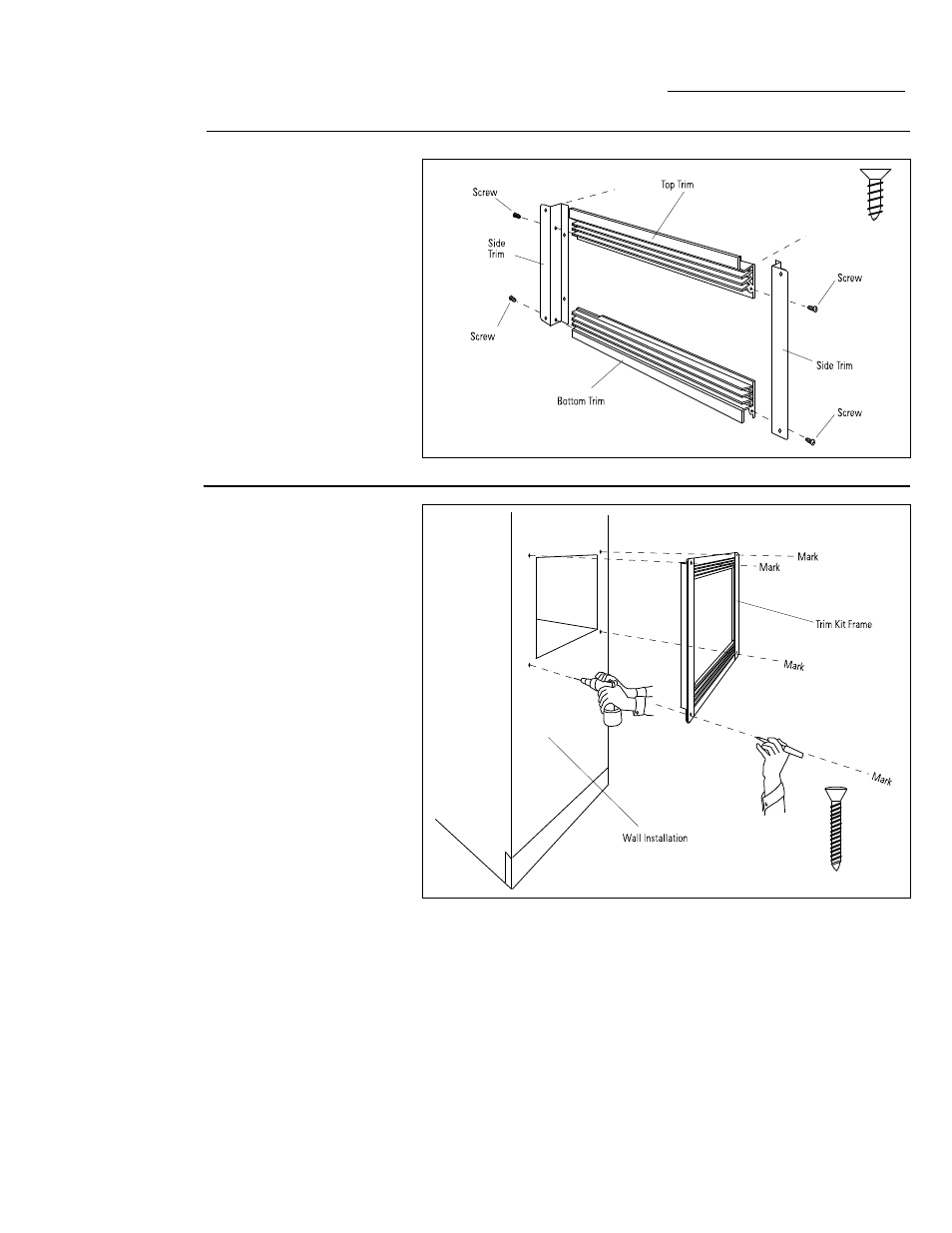

• Assemble top, bottom
and side trims with four
screws D, as illustrated.
When assembled, top,
bottom and side strips
must be flush.
Note: Bottom trim has a hinge
notch and is not interchangable
with top trim.
Caution: Do not overtighten
screws; doing so could cause
misalignment of top and side
strips.
• Use the assembled frame as a template. Insert the
frame into the cut-out and locate the attaching
holes.
• Temporarily hold the frame in place by starting the
four screws that attach the frame to the base pan
and side covers.
• Push frame as far left as possible, drive the four
screws.
• Check to be sure door clears the trim when open.
Installation
Mic r owav e Oven
• Mark the four holes on the side of the trim.
• Remove the frame.
• Center punch and drill 3/32" pilot holes.
• Position the assembled frame around the oven and
secure with 8 screws C, using the smaller Phillips
head screwdriver to prevent burring the Phillips
head.
Screw D
Screw C
