associated cabling. Make sure the unit is installed in a location that is easily accessible to
an AC power outlet or power strip and where convection cooling is not inhibited. The green
Power (PWR) Led must turn ON when power is applied through the internal DC input 12V,
24V or –48V DC or external AC through 9V DC jack.
3.2 MC14-TRAY for Rack Mounting of S14-Series & PS14P(POE) Switches

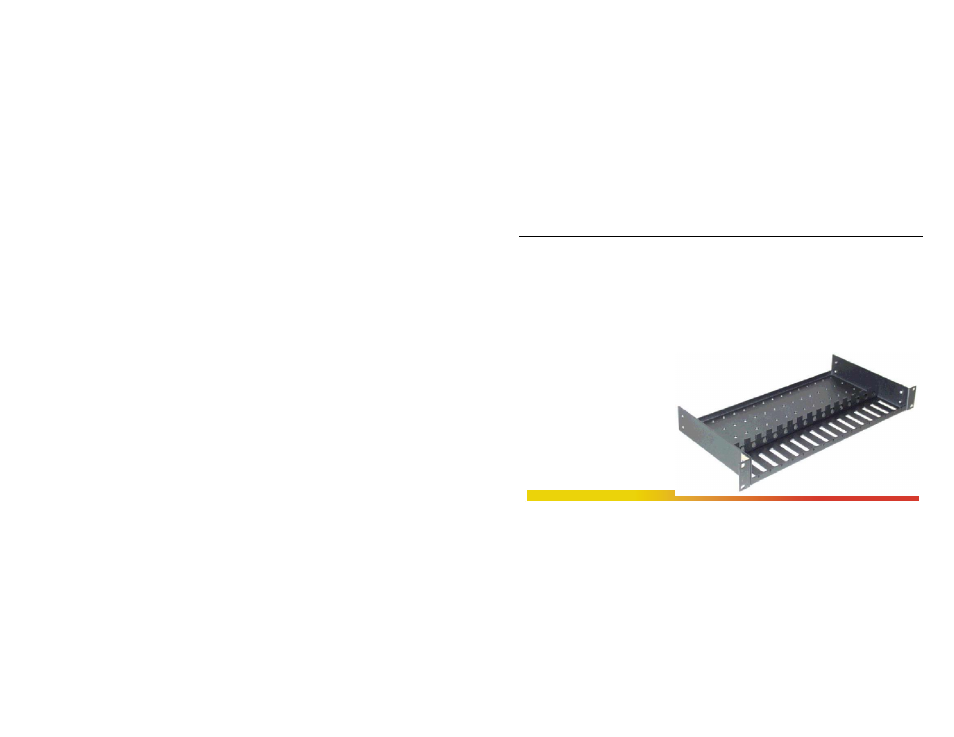

For 19” rack-mounting of Magnum S14-Series & PS14P(PoE) Convenient Switches, a
rack-mount tray is available, the
part number is MC14-TRAY.
The Convenient Switches along
with Media Converter units are
mounted with their RJ-45 ports
and DC power jacks in the back,
with either fiber or BNC cable in
