G9983 15" Open-End Wide-Belt Sander

-41-

Model G9983

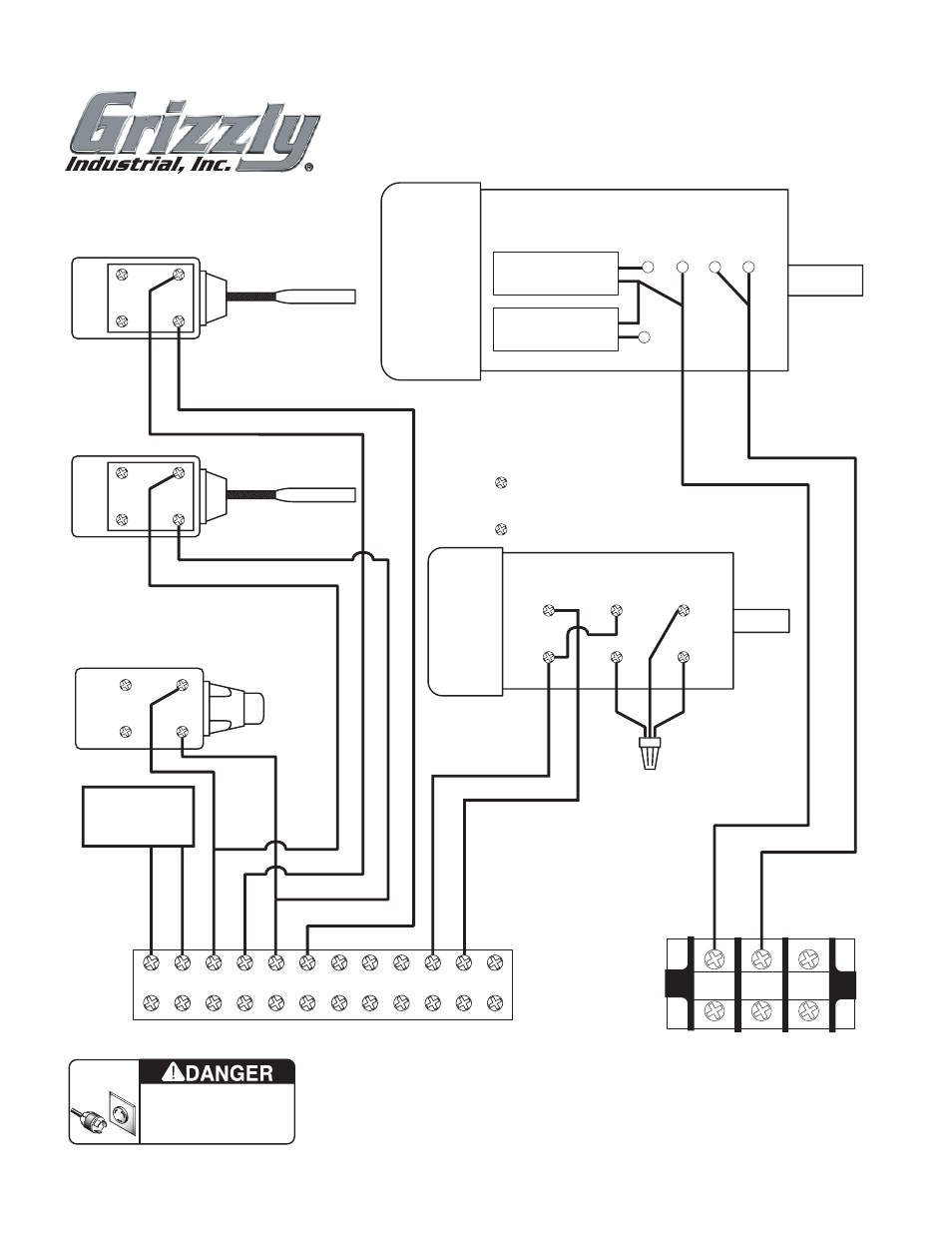

Wiring Diagram - 220 Volt Single Phase

12 13

3

3

5

5

U2 V2 W2

EMERGENCY STOP

LIMIT SWITCH

Disconnect power from machine
before performing any electrical
service. Failure to do this will result
in a shock hazard leading to injury
or death.

!

MAIN MOTOR

FEED BELT MOTOR

3

4

2

1

6

3

2

5

4

1

5

1

6

4

2

1

U1

V1 W1

3

4

2

1

3

4

2

1

BELT

LIMIT

SWITCH

Starting 250VAC

Capacitor 800MFD

Running 350VAC

Capacitor 50UF-U

SOLENOID

VALVE
