G9983 15" Open-End Wide-Belt Sander -9-
Access Doors
There are access doors located on each side of
the sander. Throughout the manual, we refer to
these doors as the “left-hand access door” and
the “right-hand access door.” These terms are
referenced as if you are facing the front of the
machine.

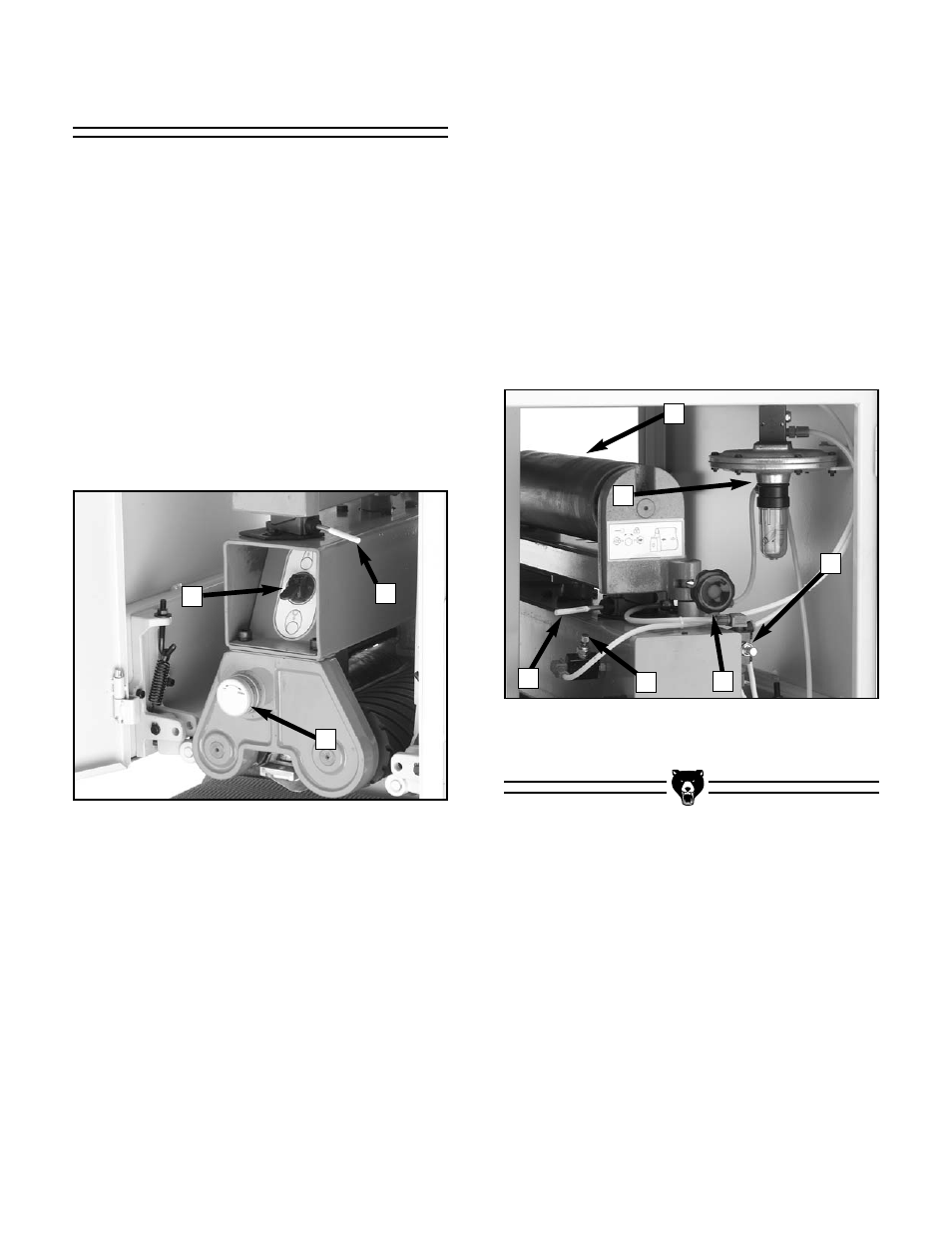

Figure 4 shows the layout behind the left-hand
access door.
A. Limit Switch
B. Sanding Belt Tension Switch
C. Platen Adjustment Knob
Figure 4. These items are behind the
left-hand access door.
Figure 5 shows the layout behind the right-hand
access door.
A. Oscillating Roller
B. Oscillation Air Filter
C. Limit Switch
D. Oscillation Return Valve
E. Oscillation Speed Valve
F. Oscillation Timing Knob
A B
C
Figure 5. These items are behind the
right-hand access door.
A
B
C
D
E F
