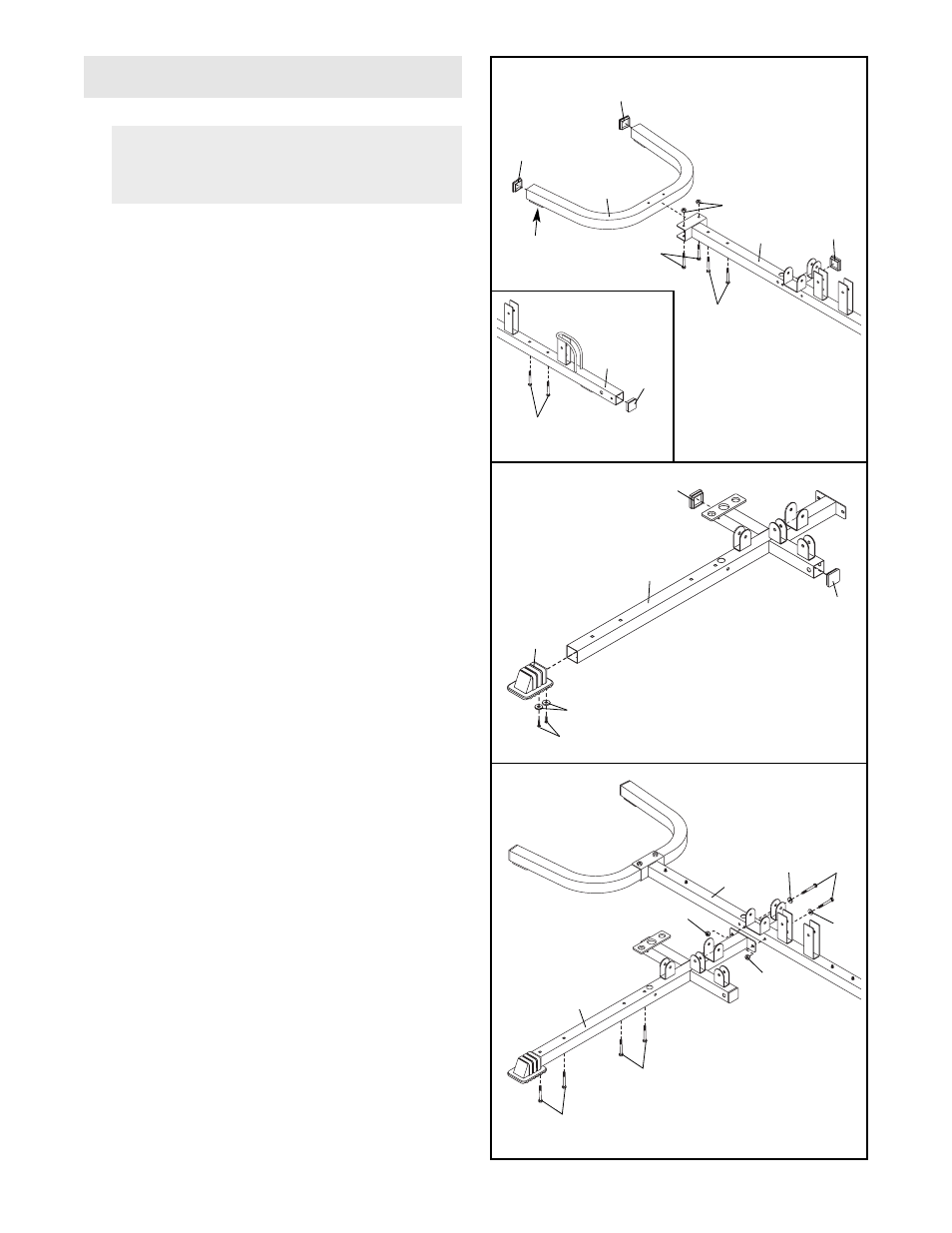

1.
Locate and open the parts bags labeled
“FRAME ASSEMBLY 1” and “FRAME ASSEM-
BLY 2.”
Press four 50mm Square Inner Caps (105) into
the Rear Stabilizer (53) and the Long Base (120).
Attach the Rear Stabilizer (53) to the Long Base
(120) with two M8 x 70mm Carriage Bolts (131)
and two M8 Nylon Locknuts (71). Do not tighten
the Locknuts yet. Make sure the iron plate is
on the bottom.
Insert four M10 x 65mm Carriage Bolts (110) up
into the Long Base (120). Note: It may be help-
ful to place tape over the heads of the
Carriage Bolts to hold them in place.
2. Press two 50mm Square Inner Caps (105) into
the Short Base (2).
Attach the Base Cap (24) to the Short Base (2)
with two M4 x 20mm Self-tapping Screws (14)
and two M4 Washers (142).
Before beginning assembly, make sure you
understand the information in the box on
page 5.
6
3. Insert four M10 x 65mm Carriage Bolts (110) up
into the Short Base (2). Note: It may be helpful
to place tape over the heads of the Carriage
Bolts to hold them in place.
Attach the Short Base (2) to the Long Base (120)
with two M10 x 70mm Bolts (134), two M10
Washers (91), and two M10 Nylon Locknuts (87).
Do not tighten the Locknuts yet.
Frame Assembly 1
2
3
105
105
Iron
Plate
53
71
120
110
131
120
24
110
110
2
105
105
142
14
2
120
91
87
87
91
134
105
105
110
