Crathco
®
Remote Beverage Freezers

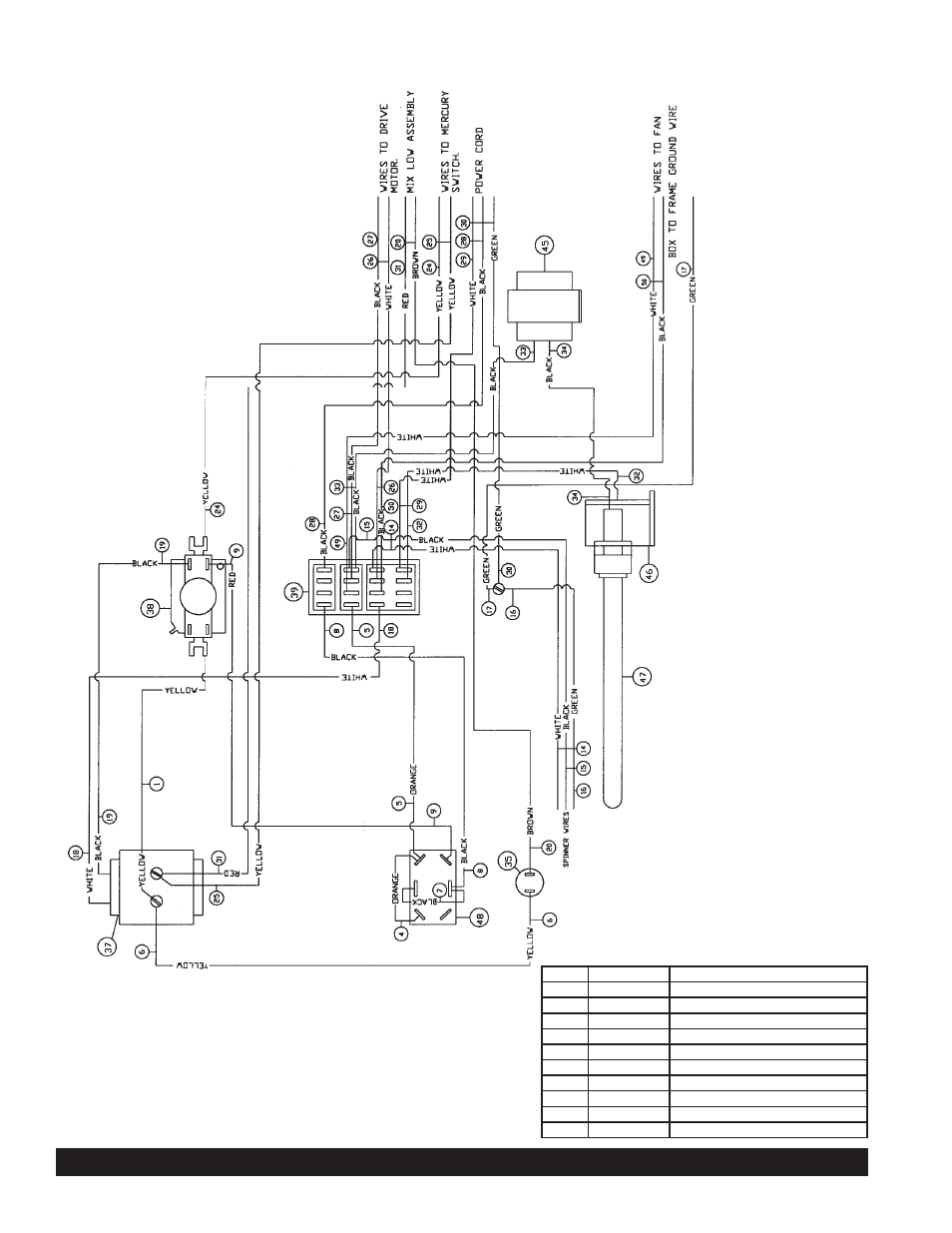

Model 3341 Wiring Diagram
Item
Part Number
Description
35
W0570007
Indicator Light
37
W0572032
Transformer Sub-Assy
38
W0570660
Time Delay Relay
39
W0570235
Terminal Block
42
W0572192
Low Mix Sub-Assy.
43
W0572068
Power Cord
45
W0570045
Core & Coil Ballast
46
W0570044
Light Socket
47
W0570043
Florescent Light Bulb
48
W0570924
Switch
