Grindmaster 3341A - Manual (Page 21)

Crathco ® Remote Beverage Freezers Page 19

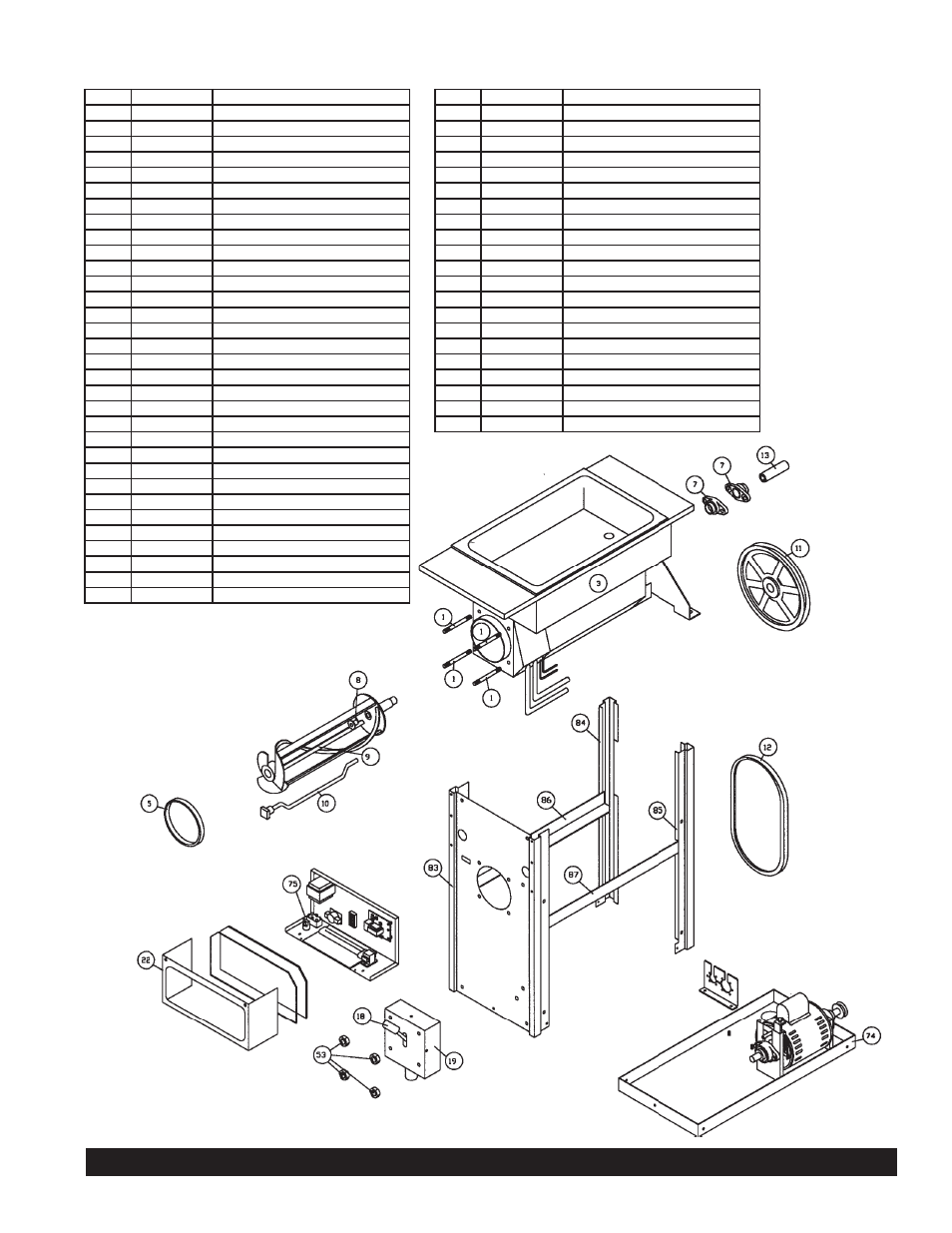

Exploded View Model 3341A Base Assembly
Item Part Number Description
1 W0110013 Valve Stud (New Style)
3 W0201342 Evaporator Foam Assy.
4 W0340022 #213 O-Ring
5 W0340055 Square Cut O-Ring
6 W0340058 Barrel Gasket
7 W0380025 Flange Bearing
8 W0430024 Blind Flange Bearing
9 W0430089 Dasher Weldment
10 W0430028 Stator Weldment
11 W0450053 10” Pulley
12 W0450209 V-Belt
13 W0451067 Slush Drive Shaft
14 W0470010 Rubber Pad
15 W0470076 Lubrifilm
17 W0471076 Carburetor Assembly
18 W0480445 Valve Handle
19 W0480450 Valve Body
20 W0570901 Mercury Switch
21 W0572068 Power Supply Cord
22 W0572286 Elec. Box Cover
23 W0572290 Light Reflector
28 W0600214 Warning Spinner Label
29 W0600215 Caution, On-Off Clean
30 W0600218 Risk of Elec. Shock
45 W0611728 Faspin
48 W0630503 Plastic Hole Plug
52 W0630604 Strain Relief
53 W0630711 Valve Knobs
56 W0631230 Compression Spring
57 W0631610 Front Display Lens
58 W0631614 Acrylic, Lens
59 W0641027 Drain Tube Hose
Item Part Number Description
74 W0210139 Base Assembly
75 W0572310 Elec. Box Assy.
82 W0211112 Drain Tube Fitting
83 W0210084 Front Panel
84 W0210085 L. H. Rear Leg
85 W0210086 R. H. Rear Leg
87 W0210105 Center Shelf Angles
89 W0200312 Filter Drier
90 W0572360 Mix Low Probe Washer
91 W0572361 Mix Low Probe Standoff
92 W0572365 Mix Low Probe
94 W0165005 Solenoid
97 W0650050 Circuit Board
98 W0570910 Toggle Switch
99 W0650033 Asco Solenoid Valve
100 W0600180 Autofill Label
101 W0620350 Autofill Tube Connector
102 W0210002 Autofill Solenoid Bracket
103 W0952006 Autofill Tube Assy.
122 W0630426 Detiker Clamp
128 W1431084 Scraper Blade
