Page 38: Vlan, Qs-34
QS–34
UR SWITCH MODULE – QUICKSTART GUIDE
QUICKSTART GUIDE
QS.5.1 Configuring Tagged VLANs

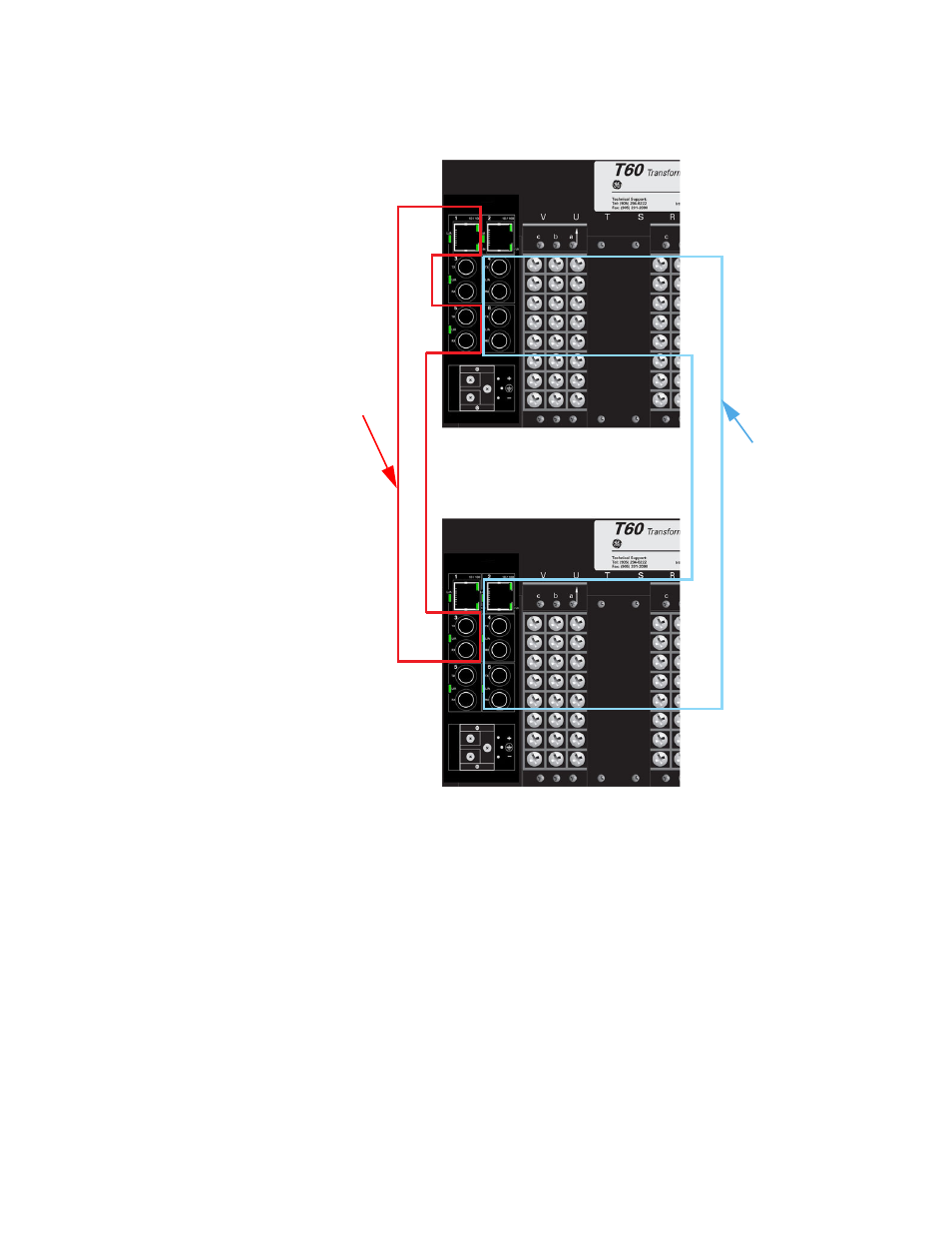

FIGURE QS–13: Tagged Virtual LANs
Configuring a VLAN within the Switch
To configure a VLAN within the switch:
Z
First determine which physical ports are to be part of the tag-
based VLAN.
Z
Take note the names of the associated ports displayed on the
home page.
In our example we want the ports named A5 and A6 and A7 to be
part of the new VLAN.
Z
Once the port names have been determined, open the main port
configuration page by double clicking on one of the port icons.
VLAN 2
VLAN 1
