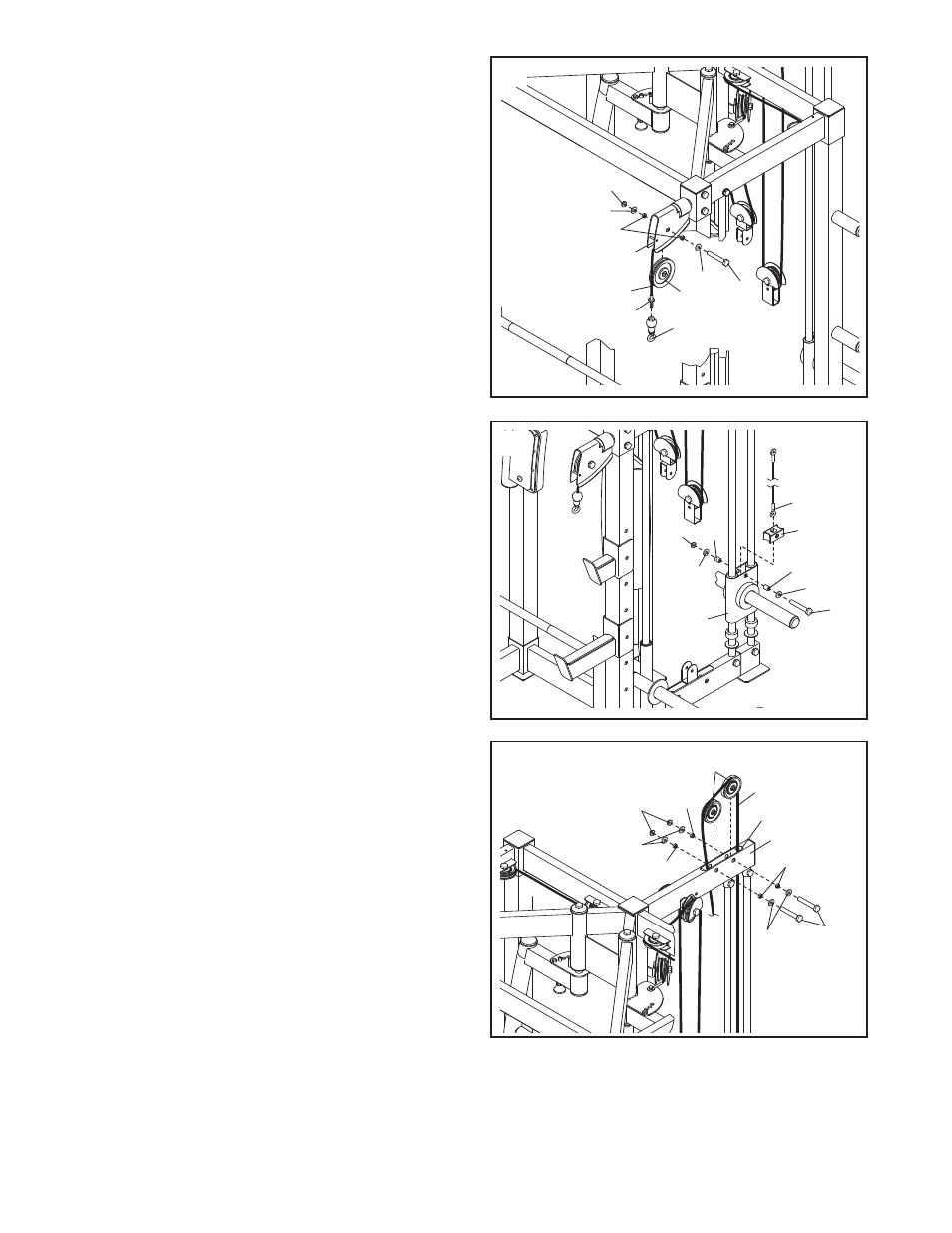

48. Identify the Rear Cable (94). Press the Weight
Carriage Block (100) into the Weight Carriage
(19). Insert one end of the Rear Cable into the
the center of the Weight Carriage Block. Attach
the Cable and the Weight Carriage Block to the
Weight Carriage with an M10 x 65mm Bolt (137),
two M10 Washers (148), two M10 x 20mm
Spacers (150), and an M10 Nylon Locknut (153).
49. Route the Rear Cable (94) through the Weight
Carriage Frame (18) as shown. Insert a Small
Pulley (74) into the slot in the Weight Carriage
Frame. Then, insert another Small Pulley (74).
Attach each Small Pulley with an M10 x 55mm
Bolt (127), two M10 Washers (148), two M10 x
6.5mm Spacers (151), and an M10 Nylon Locknut
(153).
48
49
151
151
Slot
127
151
148
148
153
74
94
18
19
94
137
150
150
153
148
148
100
47. Wrap the High Cable (81) over a Large Pulley
(165). Attach the Large Pulley to the Swivel
Bracket (31) with an M10 x 55mm Bolt (127), two
M10 Washers (148), two M10 x 6.5mm Spacers
(151), and an M10 Nylon Locknut (153).
Tighten the Cable Eyelet (174) as far as possible
onto the end of the High Cable (81). Then, tighten
the M8 Jam Nut (177) against the Cable Eyelet.
