Gold's Gym GGCCBE8057.0 - Manual (Page 13)

13

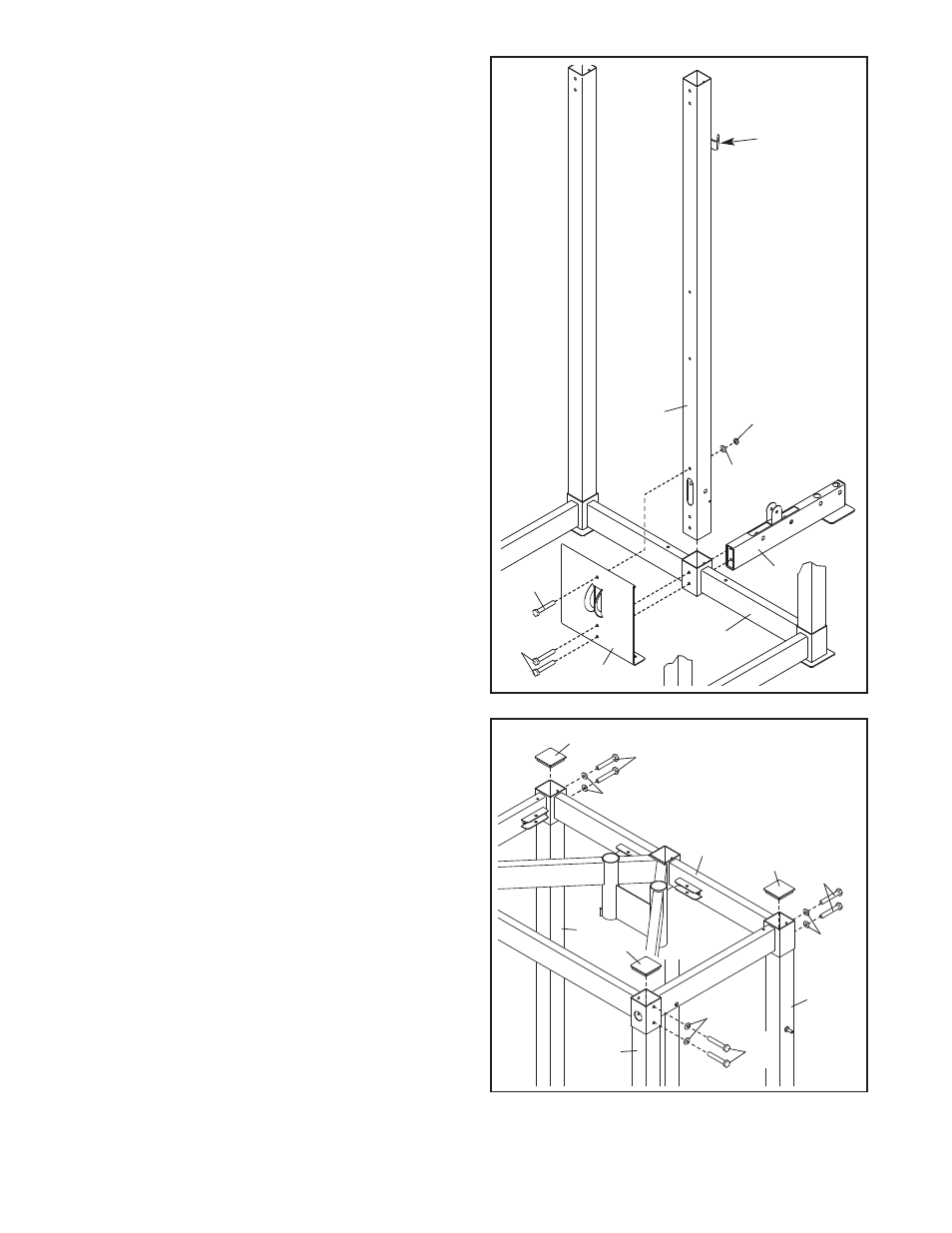

16. Orient the Center Upright (13) as shown and
insert it into the Base (14). Hold the Foot Plate
(15) and the Weight Carriage Base (20) against
the Base. Attach the Foot Plate, Center Upright,
and Weight Carriage Base to the Base with two
M10 x 110mm Screws (130).
Do not tighten the
Screws yet.
Attach the Foot Plate (15) to the Center Upright
(13) with an M10 x 93mm Bolt (129), an M10
Washer (148), and an M10 Nylon Locknut (153).
16
20
15
14
13
130
129
153
Bracket
148
17. Attach the Top Frame (17) to the Rear Uprights
(12) with four M10 x 110mm Screws (130) and
four M10 Washers (148).
Do not tighten the
Screws yet.
Attach the Top Frame (17) to the Front
Uprights (11) in the same way.
Press four 75mm Square Inner Caps (95) into the
corners of the Top Frame (17).
17
130
148
148
148
95
17
12
12
11
95
95
130
130
