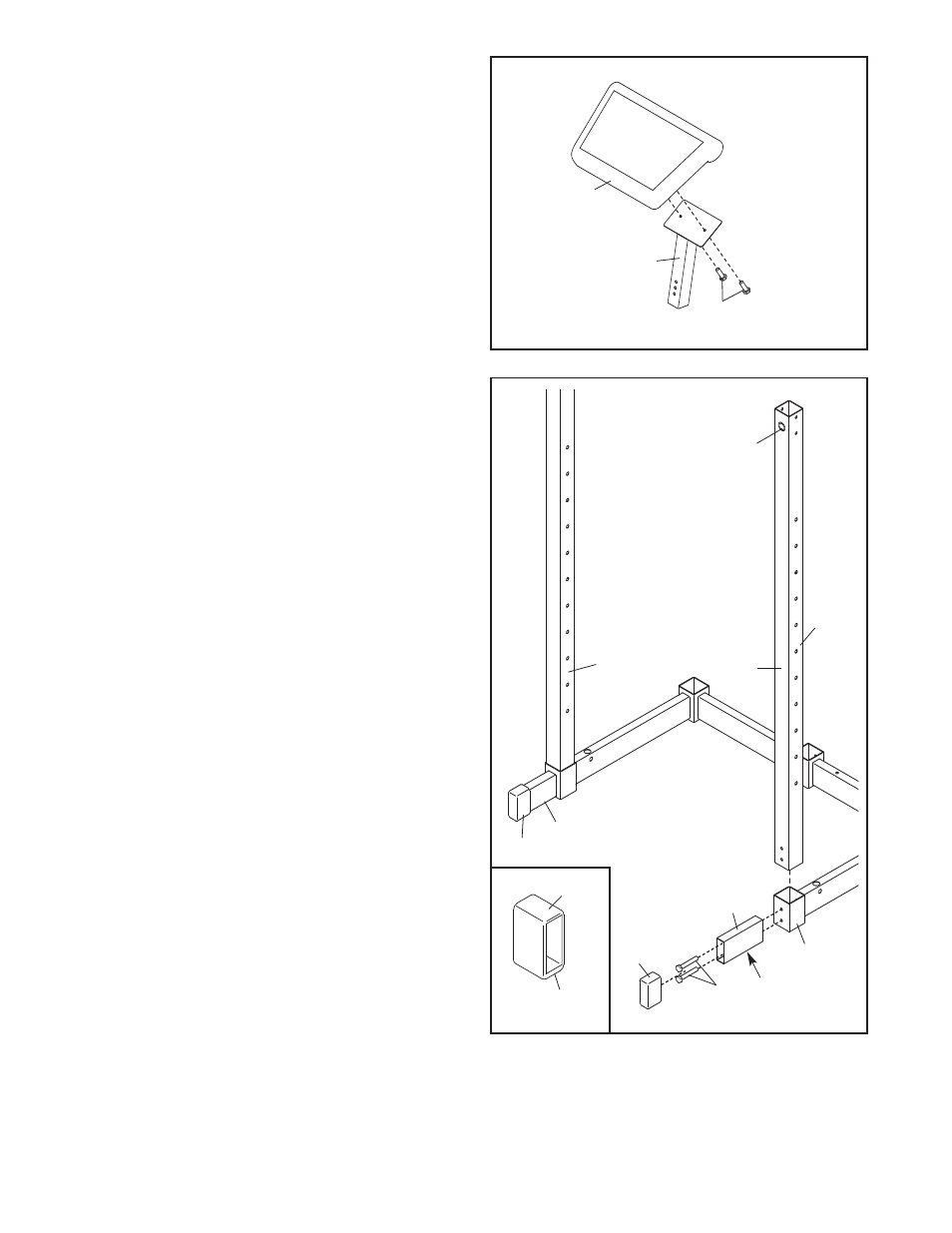

13. Orient one of the Front Uprights (11) and one of
the Base Feet (16) as shown. Attach the Front
Upright and the Base Foot to the Base (14) with
two M10 x 155mm Screws (131). Then, orient a
38mm x 100mm Large Outer Cap (180) so that
the thick end is at the bottom
(see the inset
drawing), and press it onto the Base Foot.
Attach the other Front Upright (11), Base Foot
(16), and 38mm x 100mm Large Outer Cap
(180) in the same way.
13
11
11
14
16
16
180
180
180
Thick
End
131
Hole
Holes
Large Hole
12. Attach the Curl Pad (34) to the Curl Post (10) with
two M6 x 20mm Screws (122).
12
34
10
122
