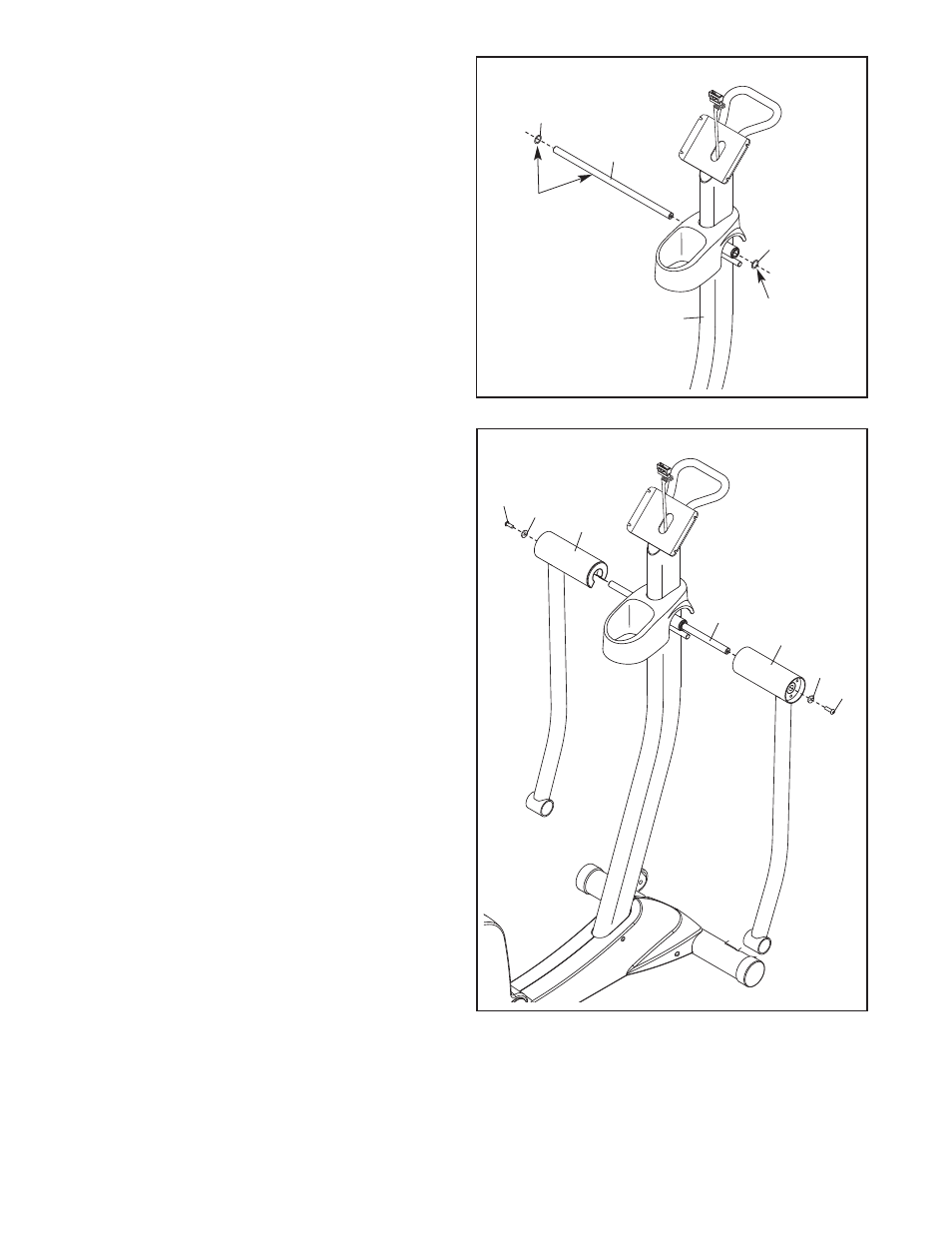

7. Apply a generous amount of the included
grease to the Upper Body Axle (71) and to two
Wave Washers (80).
Insert the Upper Body Axle (71) through the
Frame (1). Place a Wave Washer (80) on each
end of the Upper Body Axle.
7
71
80
80
Grease
Grease
1
8
8. Identify the Left and Right Upper Body Legs
(24, 72), which are marked with “L” and “R”
stickers, and orient them as shown.
Slide the Left and Right Upper Body Legs (24,
72) onto the left and right sides of the Upper
Body Axle (71).
Attach the Upper Body Legs (24, 72) to the
Upper Body Axle (71) with two M8 x 19mm
Patch Screws (86) and two M8 x 22mm
Washers (31).
86 31
24
71
72
31
86
