Inspect and tighten all parts of the elliptical exerciser

regularly. Replace any worn parts immediately.

To clean the elliptical exerciser, use a damp cloth and

a small amount of mild soap. IMPORTANT: To avoid

damage to the console, keep liquids away from

the console and keep the console out of direct

sunlight.

CONSOLE TROUBLESHOOTING

If the console displays become dim, the batteries

should be replaced; most console problems are the

result of low batteries. See assembly step 10 on page

10 for replacement instructions. If the handgrip pulse

sensor does not function properly, see step 5 on page

18.

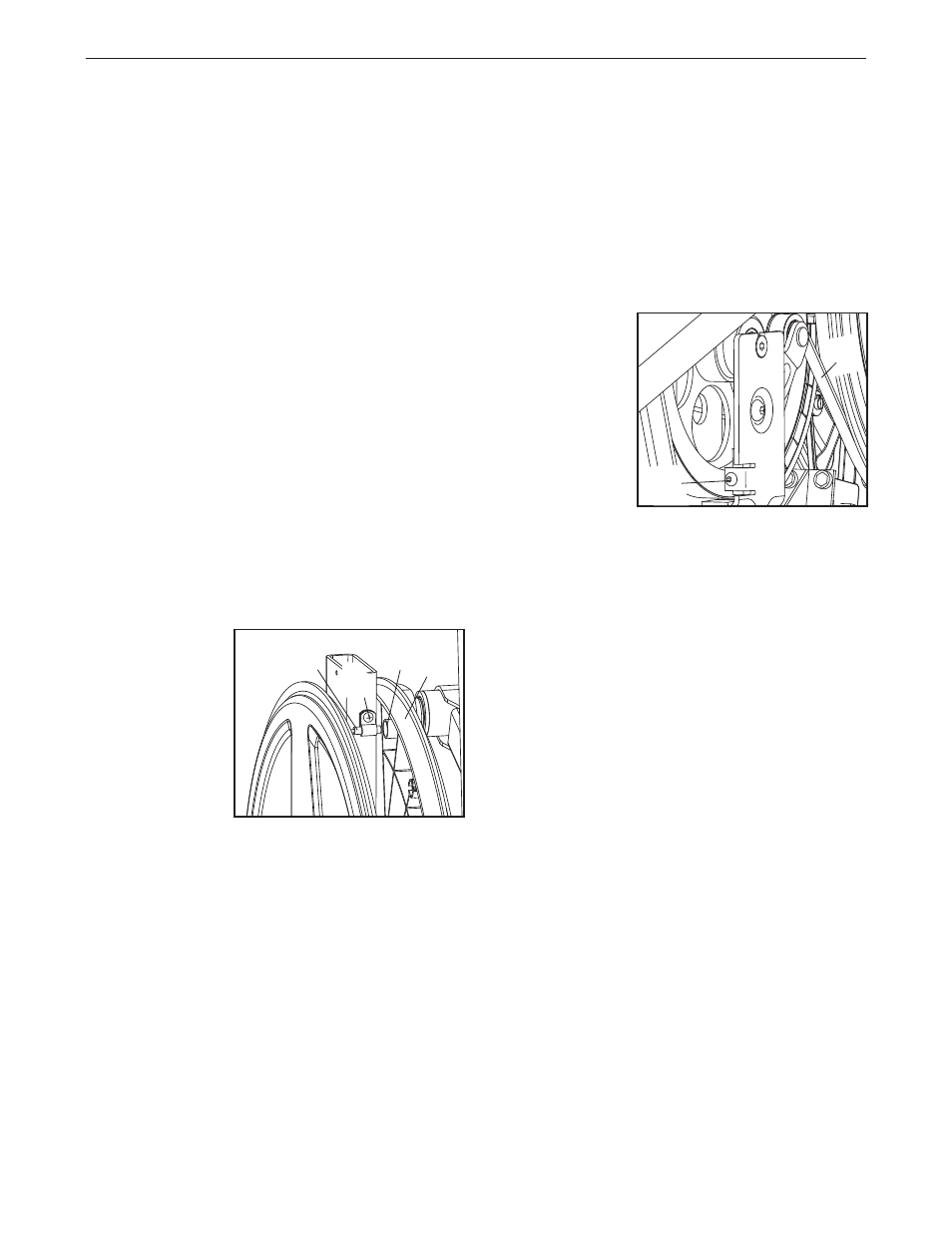

HOW TO ADJUST THE REED SWITCH

If the console does not display correct feedback, the

reed switch should be adjusted. First, remove all of the

screws from both shields; there are three sizes of

screws in the shields—note which size of screw

you remove from each hole. Then, gently pry the

shields away from the frame.

Next, locate the

Reed Switch (50).

Turn the Pulley

Disc (62) until the

Magnet (100) is

aligned with the

Reed Switch.

Loosen, but do

not remove, the

indicated M4 x

16mm Screw

(78). Slide the

Reed Switch slightly closer to or away from the

Magnet, and then retighten the Screw. Rock the Pulley

Disc forward and backward just enough that the

Magnet passes the Reed Switch repeatedly. Adjust the

Screw until the console displays correct feedback.

When the Reed Switch is correctly adjusted, reattach

the shields. Note: If you have questions as to which

screw should be in which hole, see EXPLODED

DRAWING B on page 27 and the PART LIST on page

24.

HOW TO ADJUST THE BELT

If you can feel the pedals slip while you are pedaling,

even when the resistance of the pedals is at the high-

est setting, the Belt (74) may need to be adjusted.

First, remove all the screws from both shields; there

are three sizes of screws in the shields—note

which size of screw you remove from each hole.

Then, gently pry the shields away from the frame.

Next, turn the Belt

Adjustment Screw

(115) until the

Belt (74) is tight.

Then, reattach

the shields. Note:

If you have ques-

tions as to which

screw should be

in which hole, see

EXPLODED

DRAWING B on

page 27 and the PART LIST on page 24.

MAINTENANCE AND TROUBLESHOOTING

100 62

115
