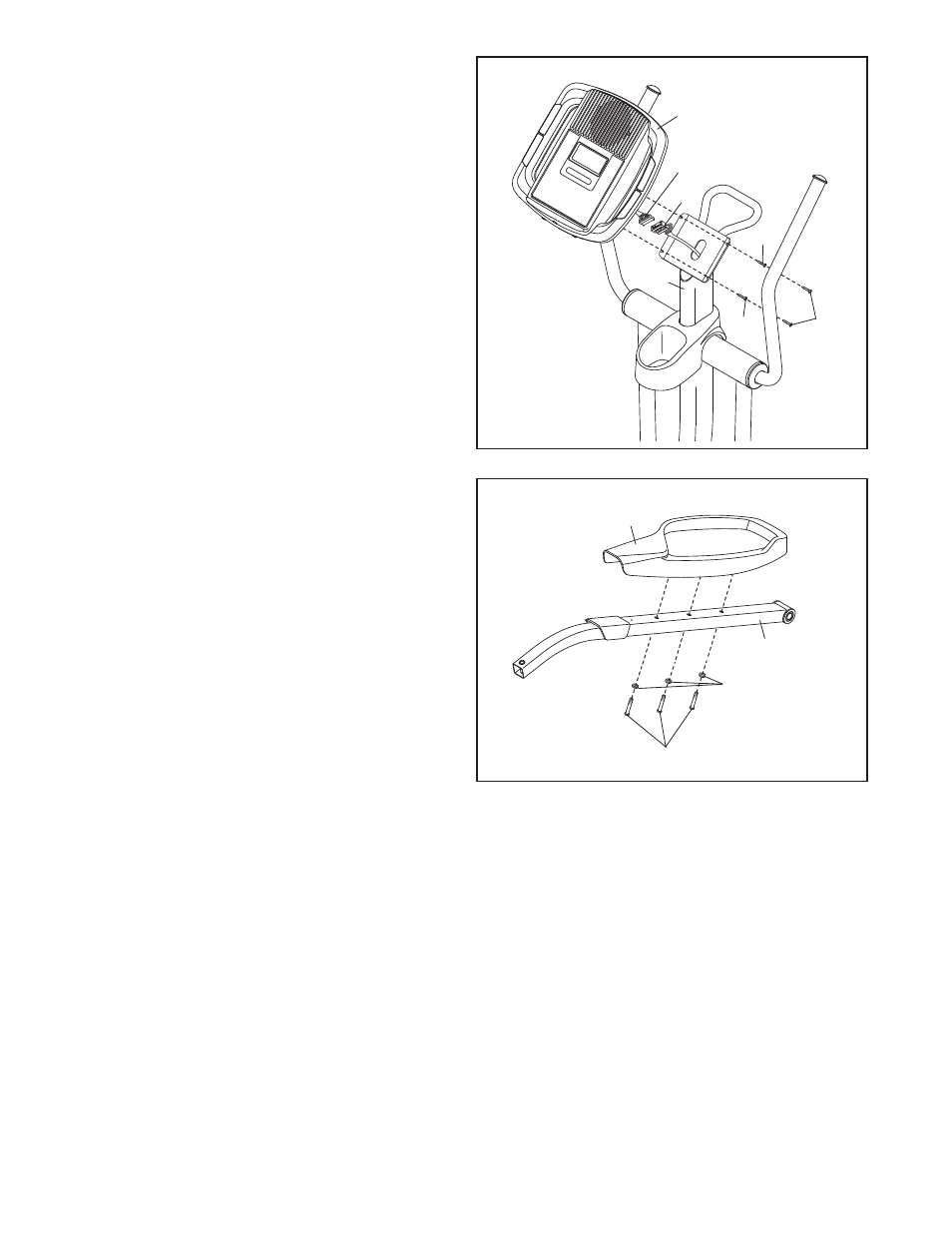

11. While another person holds the Console (11)
near the Upright (10), connect the console wire
to the Wire Harness (64). Insert the excess wire
into the Upright.
Tip: Avoid pinching the wires. Attach the
Console (11) to the Upright (10) with four M4 x
16mm Screws (78).
11
11
Console Wire
78 78
10
78
64
Avoid pinching
the wires
12. Identify the Right Pedal (35), which is marked
with an “R” sticker. Orient the Right Pedal and a
Pedal Arm (32) as shown.
Attach the Right Pedal (35) to the Pedal Arm
(32) with three M8 x 40mm Patch Screws (90)
and three M8 Split Washers (97).
Repeat this step to attach the Left Pedal (not
shown) to the other Pedal Leg (not shown).
12
32
97
90
35
