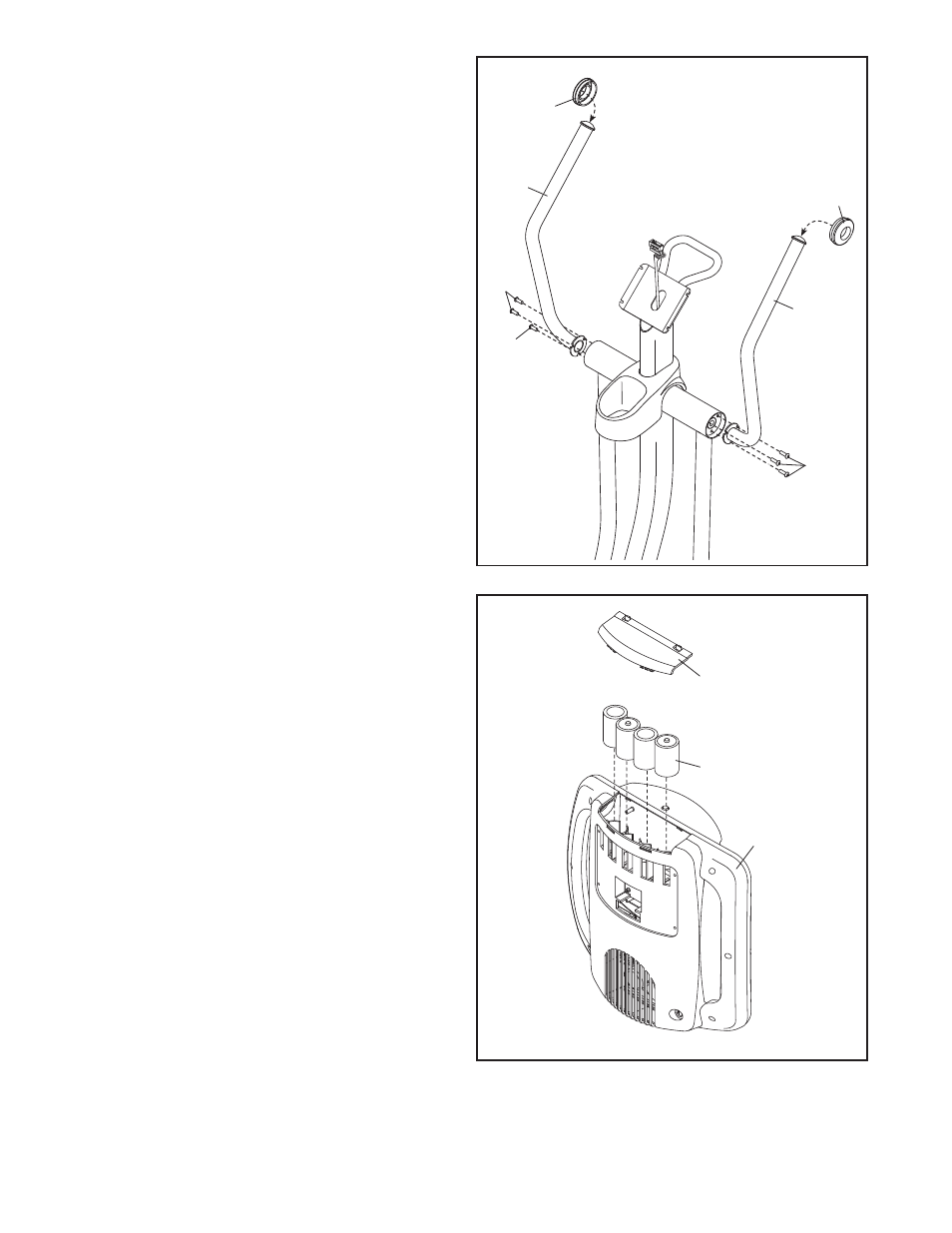

9. Identify the Left and Right Upper Body Arms
(22, 23), which are marked with “L” and “R”
stickers, and orient them as shown.
Attach each Upper Body Arm (22, 23) with three
M8 x 12mm Patch Screws (84).
Orient the two Handle Covers (48) as shown.
Slide the Handle Covers onto the Upper Body
Arms (22, 23) so that they cover the Patch
Screws (84). Note: The Handle Covers may
already be placed on the Upper Body Arms.
48
48
22
23
84
84
84
10. The Console (11) can use four D batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been
exposed to cold temperatures, allow it to
warm to room temperature before inserting
batteries. Otherwise, you may damage the
console displays or other electronic compo-
nents. Remove the battery cover, insert the bat-
teries into the battery compartment, and reat-
tach the battery cover. Make sure to orient the
batteries as shown by the diagram inside
the battery compartment.
To purchase an optional AC adapter, contact
the store where you purchased this product
or call the telephone number on the cover of
this manual. To avoid damaging the console,
use only a manufacturer-supplied AC
adapter. Plug one end of the AC adapter into
the jack on the console; plug the other end into
an outlet installed in accordance with all local
codes and ordinances.
10
Battery
Cover
Batteries
11
