12
13

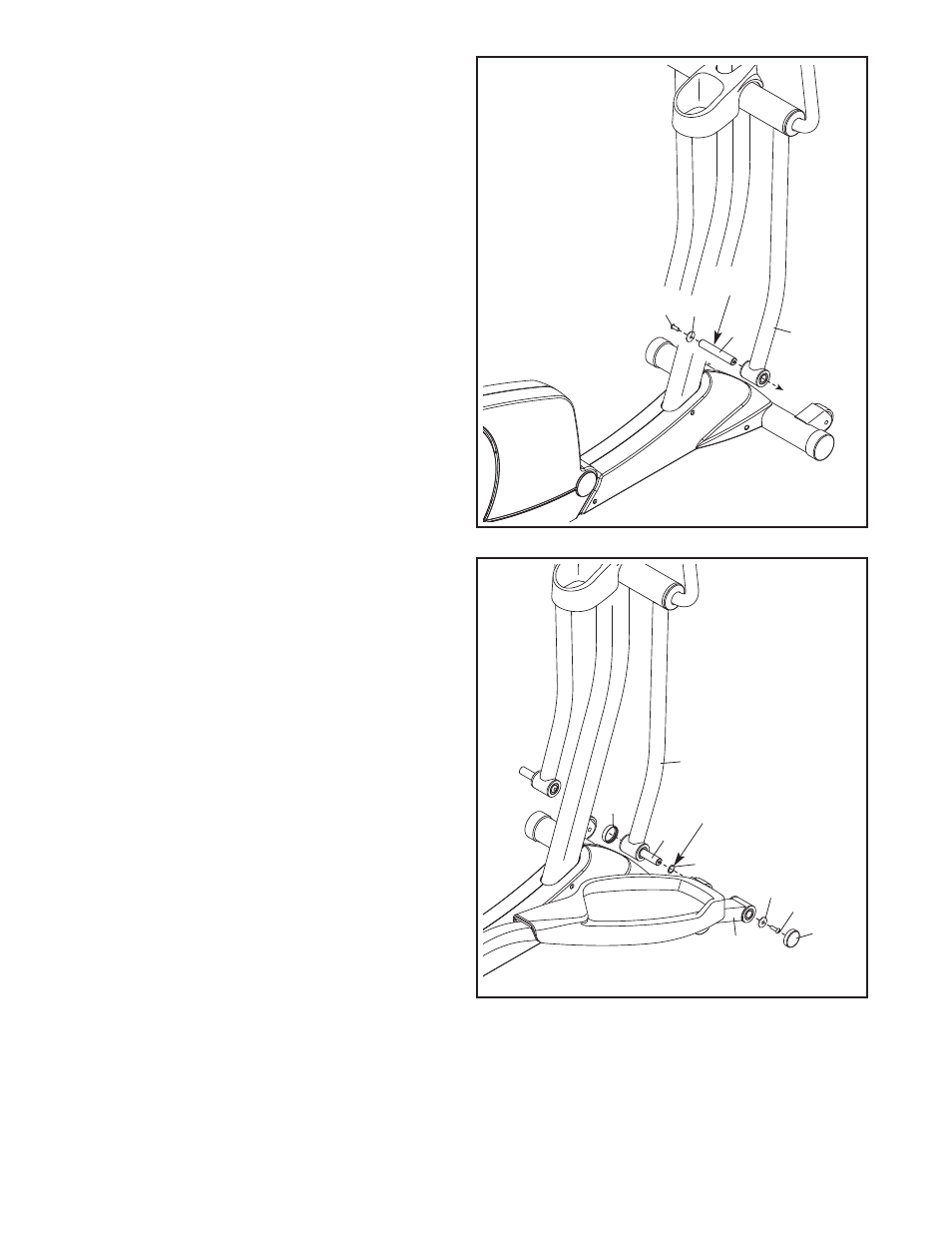

13. Apply a generous amount of grease to a Pedal
Arm Axle (55). Tighten an M10 x 20mm Patch
Screw (68) and an M10 Washer (95) into one
end of the Pedal Arm Axle.
Insert the Pedal Arm Axle (55) into the Right
Upper Body Leg (72) as shown.
Repeat this step on the other side of the
elliptical exerciser.
72
55
Grease
95 68
14
14. Apply a small amount of grease to a Large
Wave Washer (89). Slide the Large Wave
Washer onto the right side of the Pedal Arm
Axle (55) in the Right Upper Body Leg (72).
Slide the right Pedal Arm (32) onto the right
side of the Pedal Arm Axle (55) in the Right
Upper Body Leg (72).
Attach the right Pedal Arm (32) with an M10 x
20mm Patch Screw (68) and an M10 Washer
(95).
Press an Axle Cover (66) onto each end of the
Pedal Arm Axle (55).
Repeat this step on the other side of the
elliptical exerciser.
66
68
95
55
72
89
66
32
Grease
