Measure carefully when cutting the countertop.
Make sure sides of the opening are parallel.
• Allow 8” free space below the top surface of the countertop.
• Allow additional clearances below the burner box
to install the regulator and make house supply
connections. Use a 90° elbow to route the gas
connections and limit interference with drawers
or other cabinetry features.
• These rangetops are designed to hang from
the countertop by their side flanges.
• Smooth any rough edges on the countertop before
installing the rangetop.
– Formica countertop edges must be finished.
The countertop must be strong enough to support
the weight of the rangetop.
Cutout Opening with False Bottom
• You can construct the cutout with a false bottom to
conceal the bottom of the rangetop.
– Build the false bottom using a solid material; cut a
7-1/2" x 11-1/8" hole in the left rear corner for the gas
inlet and power cord clearances.
9
Installation

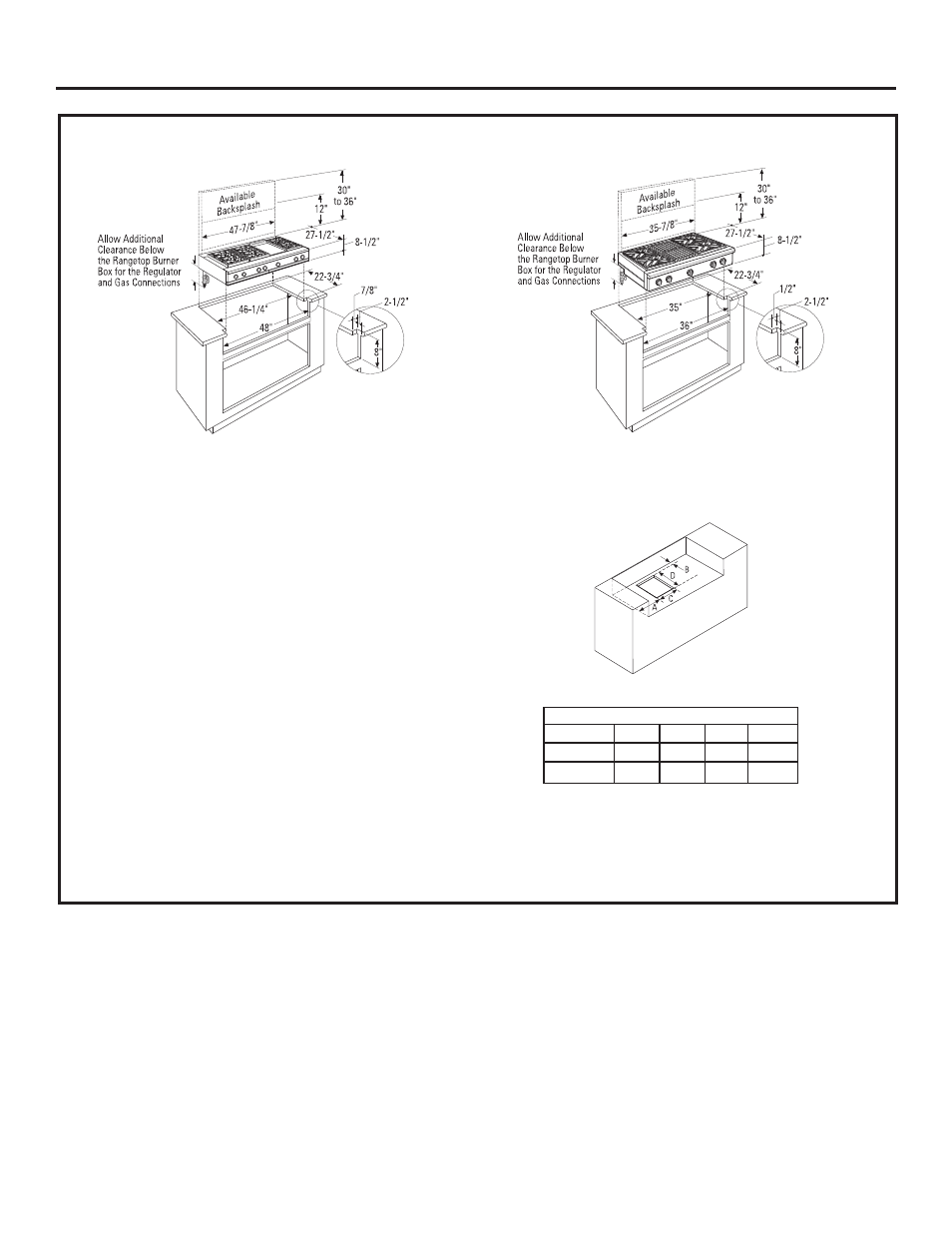

48" wide models are designed to fit in 48" or wider base cabinets 36" wide models are designed to fit in 36" or wider base cabinets
CUT THE COUNTERTOP OPENING STEP 1
Dimensions
A (Dia.) B C D
36” Rangetop 7-3/8” 1-1/2” 7-1/2” 11-1/8”
48” Rangetop 8-1/4” 1-1/2” 7-1/2” 11-1/8”
