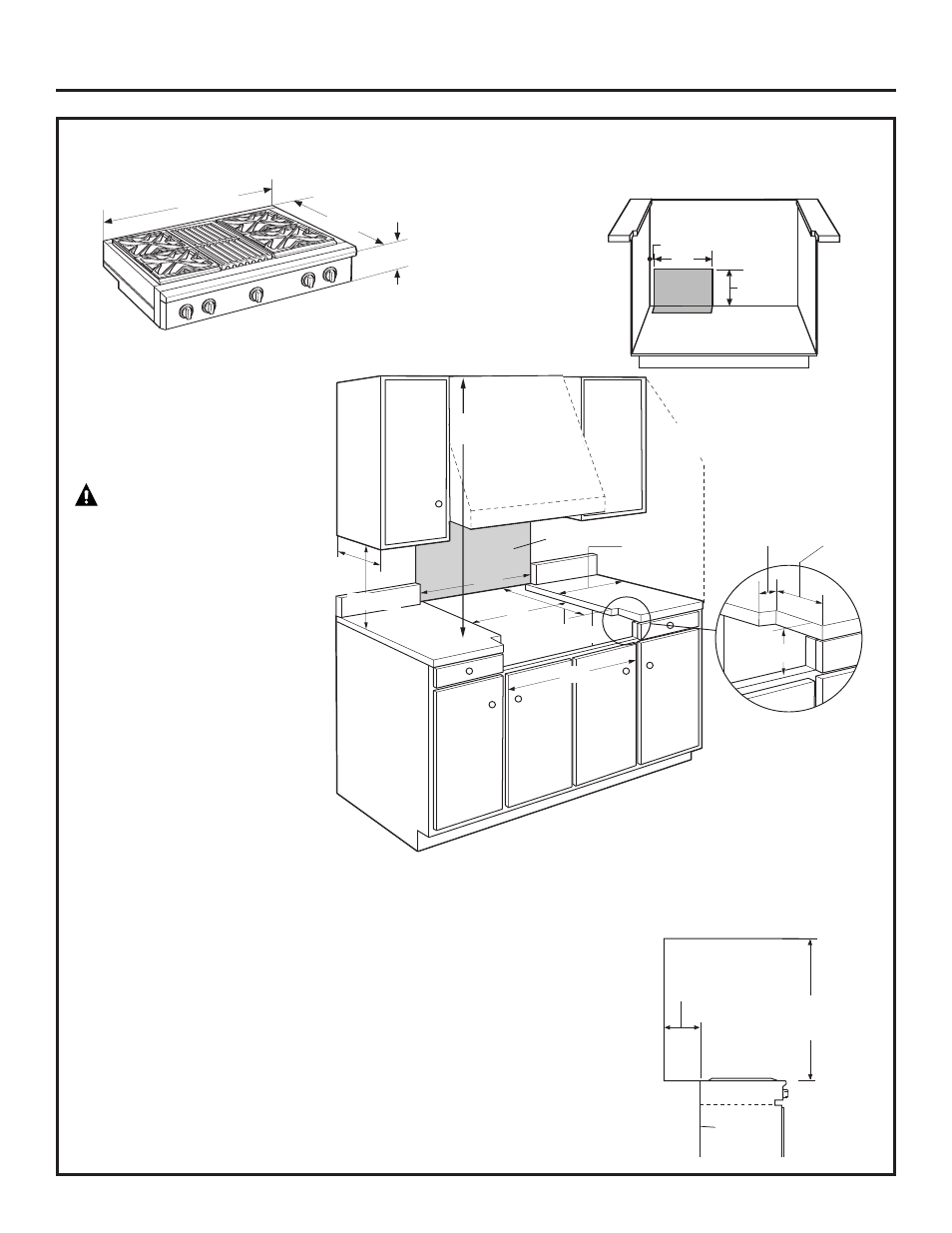

PRODUCT DIMENSIONS AND CLEARANCES FOR 36” MODELS
Design Information
35-7/8 ” Width
8-1/2”
Height
5
48” Min. to
Combustibles
0”
Clearance
ADDITIONAL CLEARANCES:
Allow 12" minimum clearance to an adjacent wall on
each side.
Working areas adjacent to the rangetop should have
18" minimum clearance between countertop and the
bottom of the wall cabinet.
605Dia76
Universal Utility Locations
2”
17”
16”
Locate gas
inlet on back
wall or on
floor 2” from
back wall.
22-3/4” Min.
2-1/2”
8”
1/2” 12” Minimum
Each Side
35”
* The opening between a 4” high backsplash must be 36”
to allow the rangetop to slide back against the wall.
13” Max.
18” Min.
48” Minimum
to Combustibles
12” Minimum to
Adjacent Wall
WARNING:
Installations without a hood
require 48" minimum to combustibles
above the rangetop. A custom hood
installation with exposed horizontal
combustible surfaces must have
an Auto-On feature. Refer to hood
installation instructions for specific
hood clearances.
The surface of the entire back wall
above the countertop and below
the hood must be covered with
a non-combustible material such
as metal, ceramic tile, brick, marble
or other stone.
*36”
Non-combustible
material
27-1/2” to
Front of
Bullnose
12” Minimum to
Combustibles or 0” to
non-combustible material
above the cooking surface
36”
