IMPORTANT SAFETY INSTRUCTIONS
S
ECONDARY
M
EANS
OF
P
ROTECTION
A
GAINST
E
NTRAPMENT
As specified by Underwriters Laboratories Inc. UL 325 (31.1.1), automatic gate operators shall have provisions
for
, or be supplied with, at least one independent primary and one independent secondary means to protect against
entrapment. GTO gate operators utilize Type A, an inherent entrapment sensing system, as the primary type of
entrapment protection. The GTO/PRO SL-1000/2000 and GTO/PRO SL-1000B/2000B gate operators have provisions
for the connection of Type B1 and B2 protection to be used as the secondary type of entrapment protection.
1. For gate operators utilizing a non-contact sensor (Type B1) in accordance with UL 325 (31.1.6):
A. Refer to the sensor manufacturer’s instructions on the placement of non-contact sensors for each type of
application.
B. Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle trips the sensor while
the gate is still moving.
C. One or more non-contact sensors shall be located where the risk of entrapment or obstruction exists, such
as the perimeter reachable by a moving gate or barrier.
2. For gate operators utilizing a contact sensor (Type B2) in accordance with UL 325 (31.1.10):
A. One or more contact sensors shall be located at the leading edge, trailing edge, and post mounted edge, both
inside and outside of a vehicular slide gate system.
B. A hard wired contact sensor shall be located and its wiring arranged so that the communication between the
sensor and the gate operator is not subjected to mechanical damage.
C. A wireless contact sensor such as one that transmits radio frequency (RF) signals to the gate operator for
entrapment protection functions shall be located where the transmission of the signals are not obstructed or
impeded by building structures, natural landscaping or similar obstruction. A wireless contact sensor shall
function under the intended end-use conditions.
ENTRAPMENT ALARM (UL 325; 31.2.1)
The GTO/PRO SL-2000 and GTO/PRO SL-2000B operators are designed to stop and reverse for 2 seconds
when the gate comes in contact with an obstruction or when an object activates the non-contact sensors.
Additionally, these operators are equipped with an audio entrapment alarm which will function if the unit
obstructs twice while opening or closing. This alarm will sound for a period of 5 minutes or until the
operator receives an intended signal (e.g., transmitter signal) and the gate returns to a fully open or fully
closed position.
R
E
D
B
LK
O
R
G
B
LU
G
R
N
C
LS
E
D
G
O
P
N
E
D
G
R
E
D
G
R
N
O
R
G
B
LU
W
H
T
B
LK
O
R
G
B
LU
G
R
N
C
LS
E
D
G
O
P
N
E
D
G
LEARN
AUTO
CLOSE
INERTIA
STATUS
BATT
+
–
OBSTR.
SENS.
RCVR
R G B
ALARM
SECON
D OPER
ATOR
FIRST
OPERA
TOR
POWER
IN
18VAC S
OLAR
~ ~
– +
ACCES
SORY
PWR. SW
.

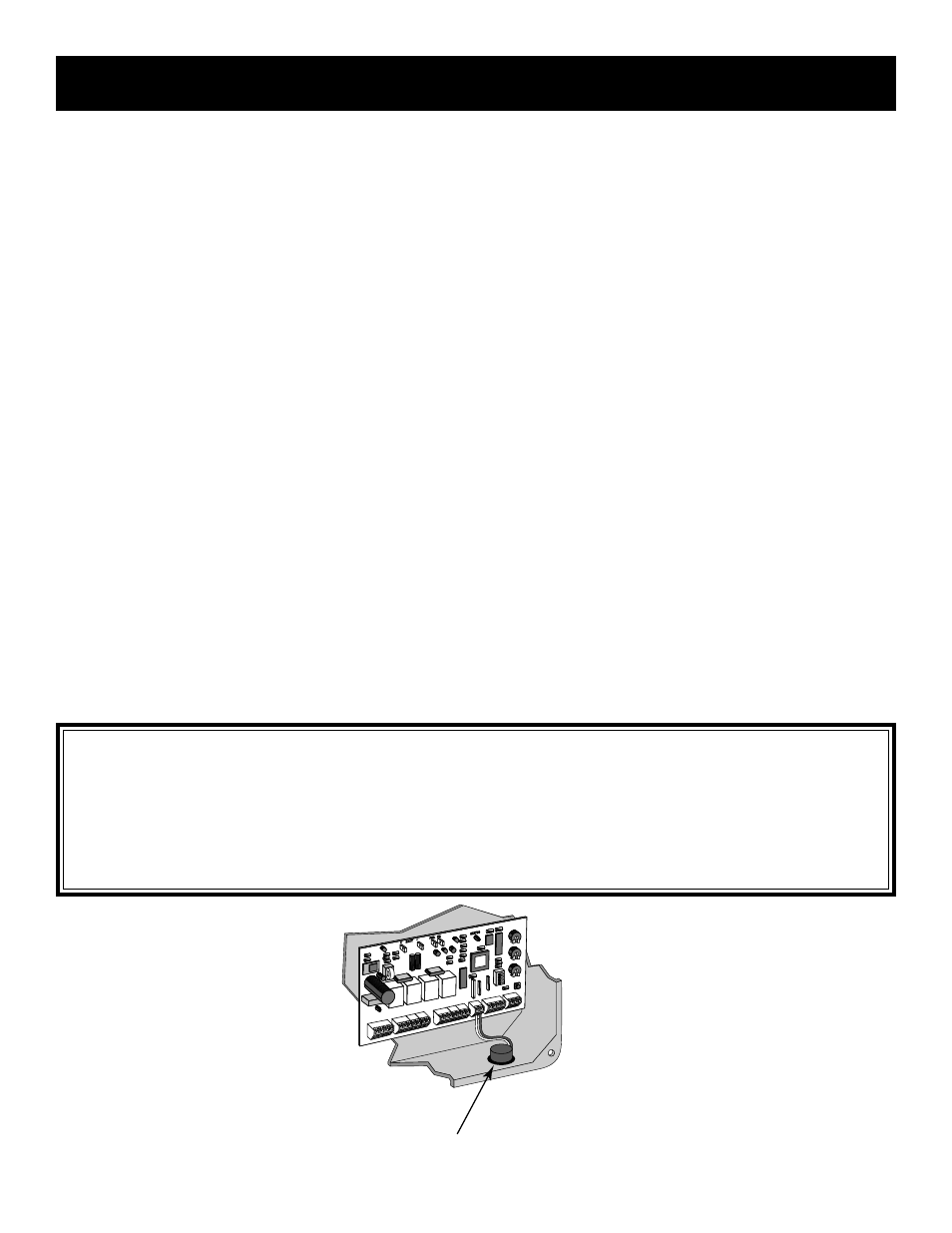

Entrapment Alarm
(bottom right of control box)
