FIRST OPERATOR OPENS FIRST,
SECOND OPERATOR CLOSES FIRST

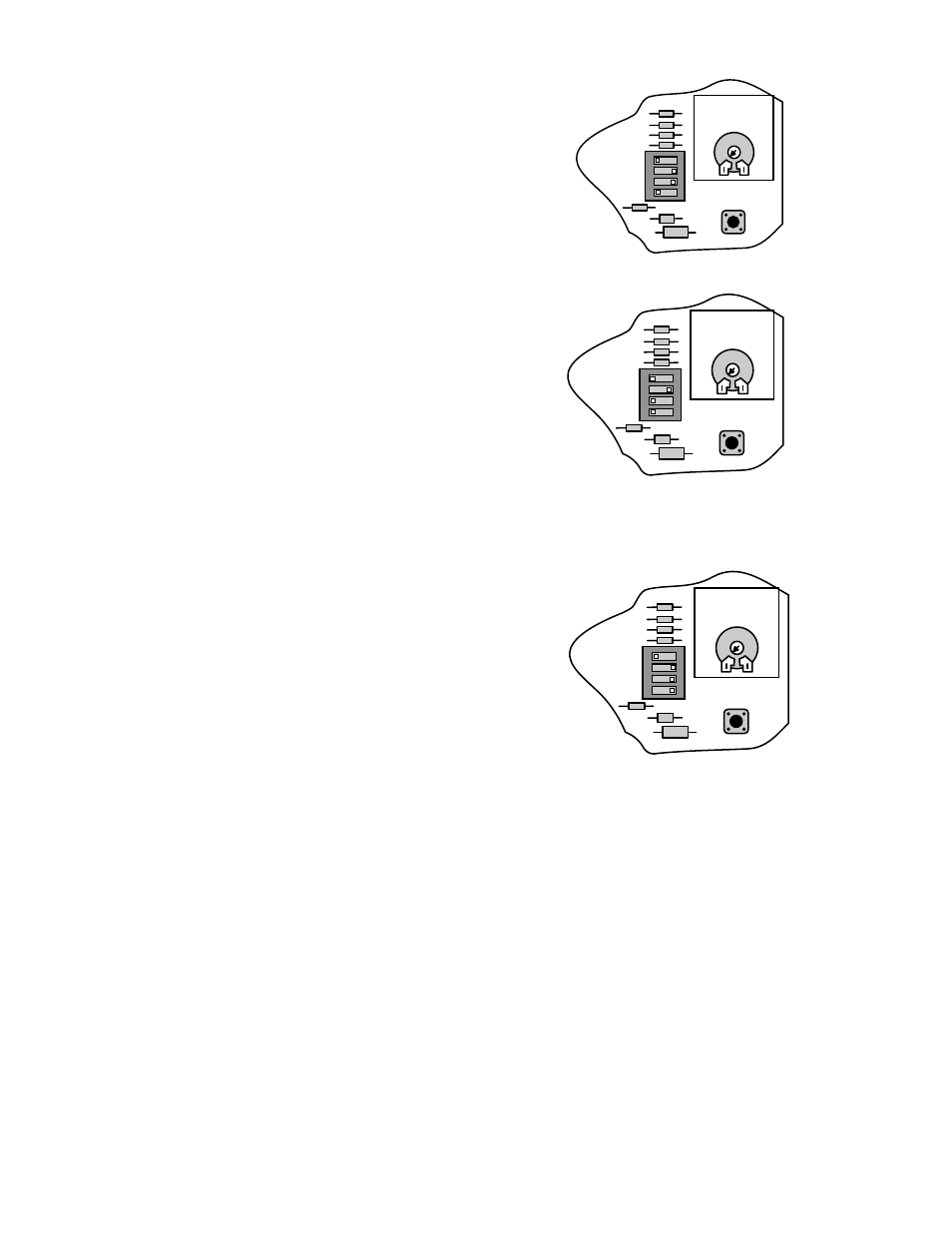

SEQ1 = OFF SEQ2 = ON
If SEQ1 is set to OFF, and SEQ2 is set to ON, the
FIRST OPERATOR will open first, and the SECOND
OPERATOR will close first (see illustration).
1
2
3
4
ON
OBSTRUCT
SENS.
PULL/PUSH
SEQ1
SNGL/DUAL
SEQ2
MIN MAX
LEARN
FIRST OPERATOR OPENS FIRST,
FIRST OPERATOR CLOSES FIRST
SEQ1 = ON SEQ2 = ON
If SEQ1 is set to ON, and SEQ2 is set to ON, The
FIRST OPERATOR opens and closes first.
1
2
3
4
ON
OBSTRUCT
SENS.
PULL/PUSH
SEQ1
SNGL/DUAL
SEQ2
MIN MAX
LEARN
1
2
3
4
ON
OBSTRUCT
SENS.
PULL/PUSH
SEQ1
SNGL/DUAL
SEQ2
MIN MAX
LEARN
BOTH OPERATORS OPEN SIMULTANEOUSLY
SECOND OPERATOR CLOSES FIRST
SEQ1 = OFF SEQ2 = OFF
If both SEQ1 and SEQ2 are set to OFF, the FIRST
OPERATOR and SECOND OPERATOR will open
simultaneously. The SECOND OPERATOR will close
first.
STEP 7:
Replace the control box cover. Turn the control box power switch to ON.
Set the closed gate positions for the first and second operators by adjusting
the limit switch (review page 24).
