Reparing, Ates – GTO SL-1000B User Manual
Page 36
34
P
REPARING
THE
G
ATES

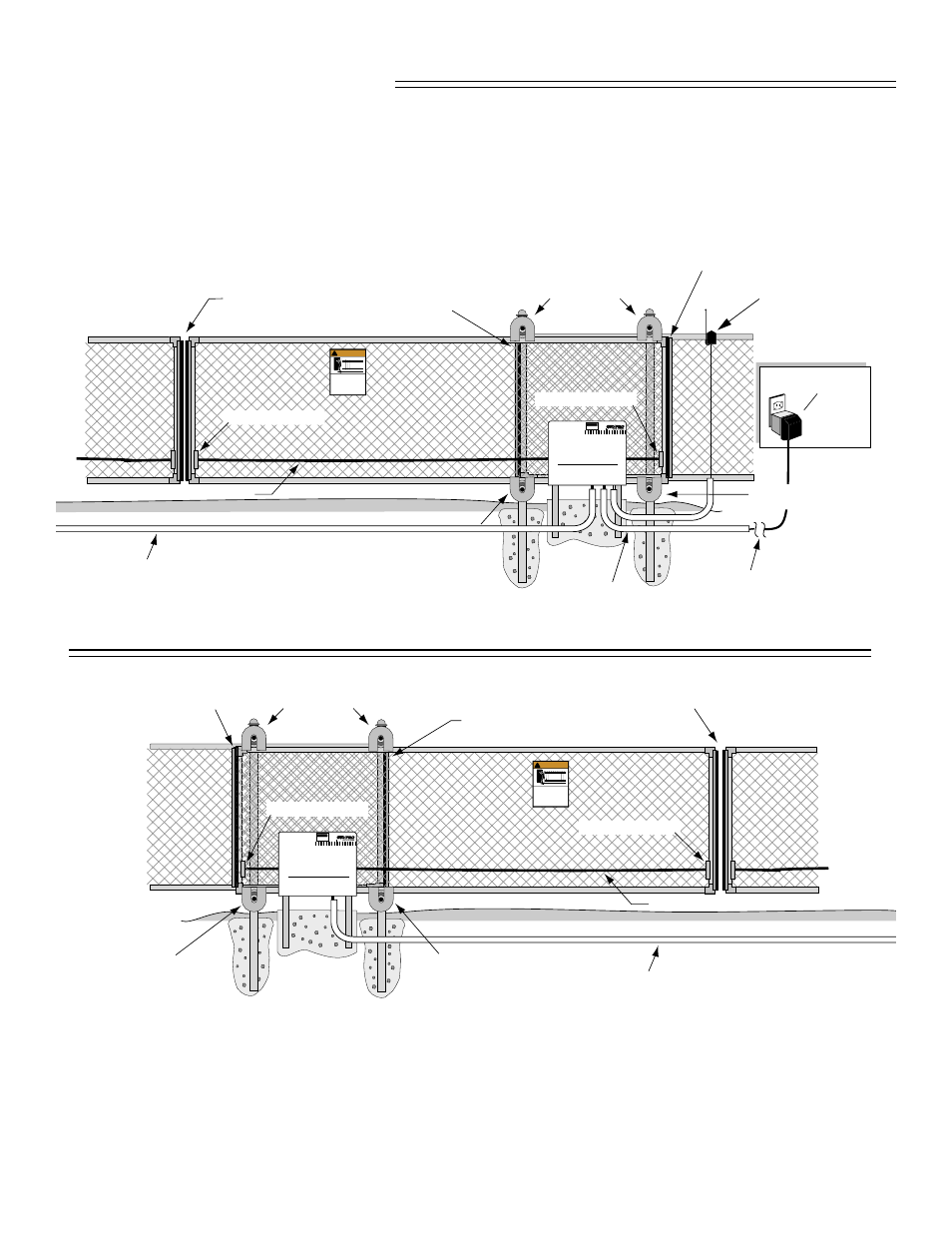

Install PVC conduit (not included) needed for power cables and low voltage wiring – see illustration below. The
PRO SL-1200 and SL-2200 power cable and safety edge (required) wiring should be run through PVC conduit
underneath the driveway. If you cut the driveway be sure to reseal it after all wiring is installed.
Chain
Roller Guard
Roller Guard
(REQUIRED)
(REQUIRED)
(REQUIRED)
PVC Conduit for
second operator
power cable.
CAUTION
AUTOMATIC GATE
STAND CLEAR
1-800-543-GATE
®
Roller Guard
(REQUIRED)
Chain Bracket
Chain Bracket
PVC Conduit for
second operator
power cable.
Chain
Contact Sensor
Roller Guard
Receiver
(cable in separate
conduit)
Roller Guard
CAUTION
AUTOMATIC GATE
STAND CLEAR
1-800-543-GATE
®
First Operator
SL-1000
or SL-2000
Contact Sensor
Contact Sensor
Contact Sensor
Contact Sensor
(REQUIRED)
(REQUIRED)
(REQUIRED)
(REQUIRED)
(REQUIRED)
(REQUIRED)
(REQUIRED)
PVC Conduit for
power cable.
Run up to 1000' of low
voltage wire to control
box from transformer
(wire not included).
120 Volt Indoor
Transformer
(Surge Protector
not supplied)
Roller Guard
(REQUIRED)
Chain Bracket
Chain Bracket
Chain Bracket
First Gate Operator
(Control Unit)
Second Gate Operator
(Auxiliary Unit)
1. KEEP CLEAR! Gate may move at any time.
2. Do not allow children to operate gate or
play in gate area.
3. This gate is for vehicles only. Pedestrians
must use a separate entrance.
Moving Gate Can Cause
Injury Or Death
WARNING
!
1. KEEP CLEAR! Gate may move at any time.
2. Do not allow children to operate gate or
play in gate area.
3. This gate is for vehicles only. Pedestrians
must use a separate entrance.
Moving Gate Can Cause
Injury Or Death
WARNING
!
Second Operator
SL-1200
or SL-2200
Contact Sensor
