G0613/14 Swivel Mast Metal Cutting Bandsaw

-7-

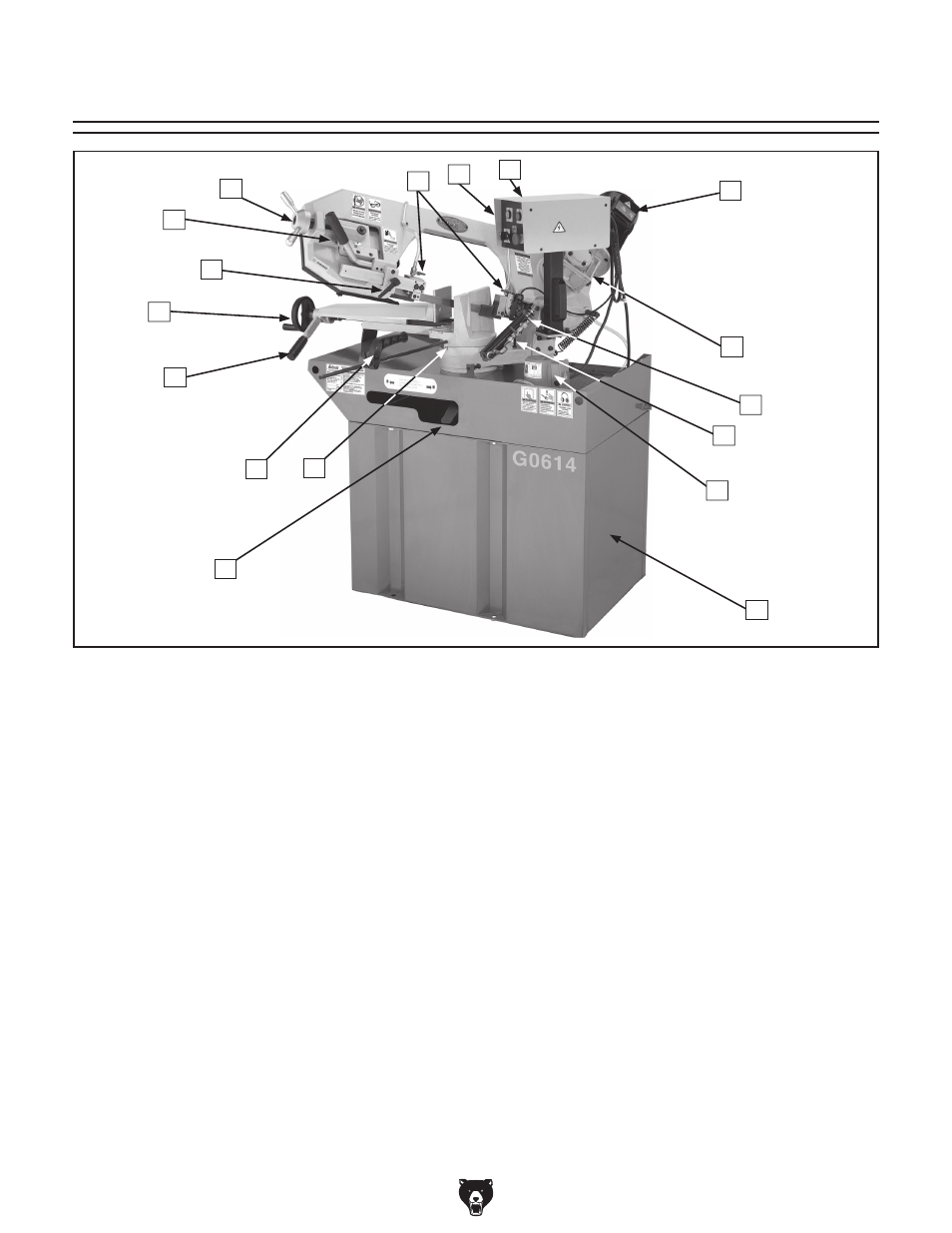

Figure 1. G0613/14 Machine Identification.

A. Blade Tension Handwheel

B. Cutting Fluid Flow Valves

C. Control Panel

D. Main Electrical Box

E. Bandsaw Motor

F. Worm Drive Gearbox

G. Feed Rate Control Knob

H. Feed ON/OFF Valve

I. Cutting Fluid Pump

Identification

C

B

D

E

J

K

N

O

P

A

Q

M

L

F

G

H

J. Main Support Cabinet

K. Headstock Swivel Lock Lever

L. Swivel Degree Scale

M. Work Stop

N. Vise Lock Lever

O. Vise Clamp Handwheel

P. Blade Guide Position Lock Lever

Q. Headstock Lift Arm and Handle

I
