Grizzly G0614 - Manual (Page 63)

G0613/14 Swivel Mast Metal Cutting Bandsaw
-61-
REF PART # DESCRIPTION REF PART # DESCRIPTION
300 P0613300 FRONT PANEL 311 P0613311 WORM SHAFT
301 P0613301 REAR PANEL 312 P0613312 O-RING
302 P0613302 SIDE PANEL 313 P0613313 OUTPUT SHAFT COVER
303 PN03M HEX NUT M8-1.25 314 P0613314 OIL SEAL
304 PW01M FLAT WASHER 8MM 315 PSB02M CAP SCREW M6-1 X 20
305 PB03M HEX BOLT M8-1.25 X 16 316 P6008 BALL BEARING 6008
306 PW04M FLAT WASHER 10MM 317 P0613317 WORM WHEEL
307 PB14M HEX BOLT M10-1.5 X 35 318 P0613318 OUTPUT SHAFT
308 P0613308 MOTOR FLANGE 319 P6008 BALL BEARING 6008
309 P0613309 O-RING 320 P0613320 OIL SEAL
310 P6006 BALL BEARING 6006ZZ 321 PB10M HEX BOLT M6-1 X 25
311 P0613311 WORM SHAFT 322 P0613322 HOUSING
312 P0613312 O-RING 323 P0613323 OIL SEAL
308 P0613308 MOTOR FLANGE 324 P6204 BALL BEARING 6204ZZ
309 P0613309 O-RING 325 PR79M EXT RETAINING RING 47MM
310 P6006 BALL BEARING 6006ZZ 326 P0613326 OIL SEAL
REF PART # DESCRIPTION REF PART # DESCRIPTION
300 P0614300 FRONT PANEL 311 P0614311 WORM SHAFT
301 P0614301 REAR PANEL 312 P0614312 O-RING
302 P0614302 SIDE PANEL 313 P0614313 OUTPUT SHAFT COVER
303 PN03M HEX NUT M8-1.25 314 P0614314 OIL SEAL
304 PW01M FLAT WASHER 8MM 315 PSB02M CAP SCREW M6-1 X 20
305 PB03M HEX BOLT M8-1.25 X 16 316 P6008 BALL BEARING 6008
306 PW04M FLAT WASHER 10MM 317 P0614317 WORM WHEEL
307 PB14M HEX BOLT M10-1.5 X 35 318 P0614318 OUTPUT SHAFT
308 P0614308 MOTOR FLANGE 319 P6008 BALL BEARING 6008
309 P0614309 O-RING 320 P0614320 OIL SEAL
310 P6006 BALL BEARING 6006ZZ 321 PB10M HEX BOLT M6-1 X 25
311 P0614311 WORM SHAFT 322 P0614322 HOUSING
312 P0614312 O-RING 323 P0614323 OIL SEAL
308 P0614308 MOTOR FLANGE 324 P6204 BALL BEARING 6204ZZ
309 P0614309 O-RING 325 PR79M EXT RETAINING RING 47MM
310 P6006 BALL BEARING 6006ZZ 326 P0614326 OIL SEAL

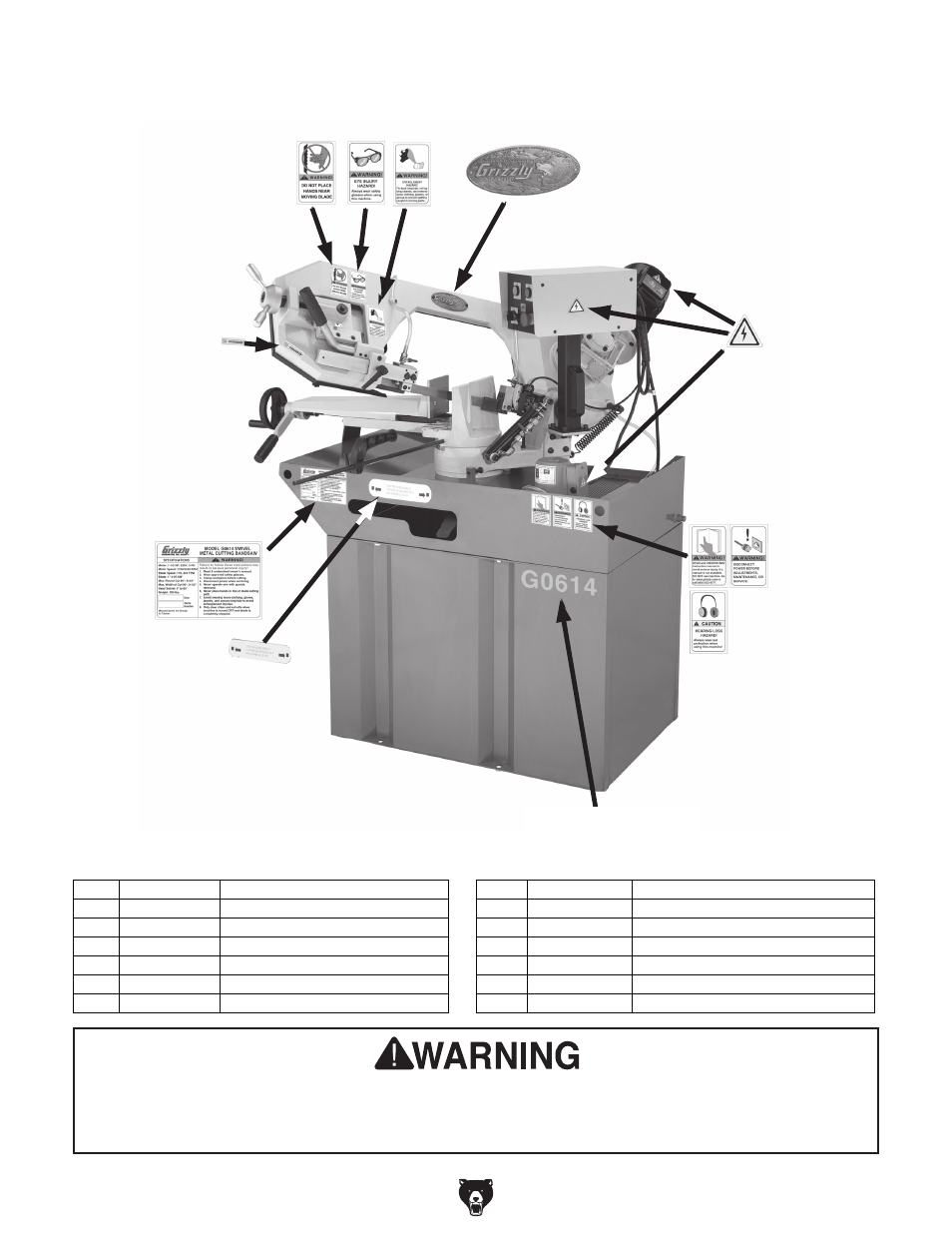

Labels and Placement
Safety labels warn about machine hazards and ways to prevent injury. The owner of this machine
MUST maintain the original location and readability of the labels on the machine. If any label is
removed or becomes unreadable, REPLACE that label before using the machine again. Contact
Grizzly at (800) 523-4777 or www.grizzly.com to order new labels.
G0613 412
409
410
411 405
404
401 402 403
408
406 407
REF PART # DESCRIPTION REF PART # DESCRIPTION
401 P0613401 FINGERS CUT WARNING LABEL 408 PLABEL-15 HEARING PROTECTION LABEL
402 PLABEL-11 WEAR SAFETY GLASSES LABEL 409 P0613409 LOCK AND UNLOCK LABEL
403 P0613403 ENTANGLEMENT LABEL 410 P0613410 G0613 DATA LABEL
404 P0613404 GRIZZLY LOGO PLATE 410 P0614410 G0614 DATA LABEL
405 PLABEL-14 ELECTRICITY LABEL 411 P0613411 BLADE DIRECTION LABEL
406 PLABEL-12A READ MANUAL LABEL 412 P0613412 MODEL NUMBER LABEL (G0613)
407 PLABEL-36 UNPLUG 220V LABEL 413 P0614413 MODEL NUMBER LABEL (G0614)
G0614 413
