-28- G0516 Lathe/Mill

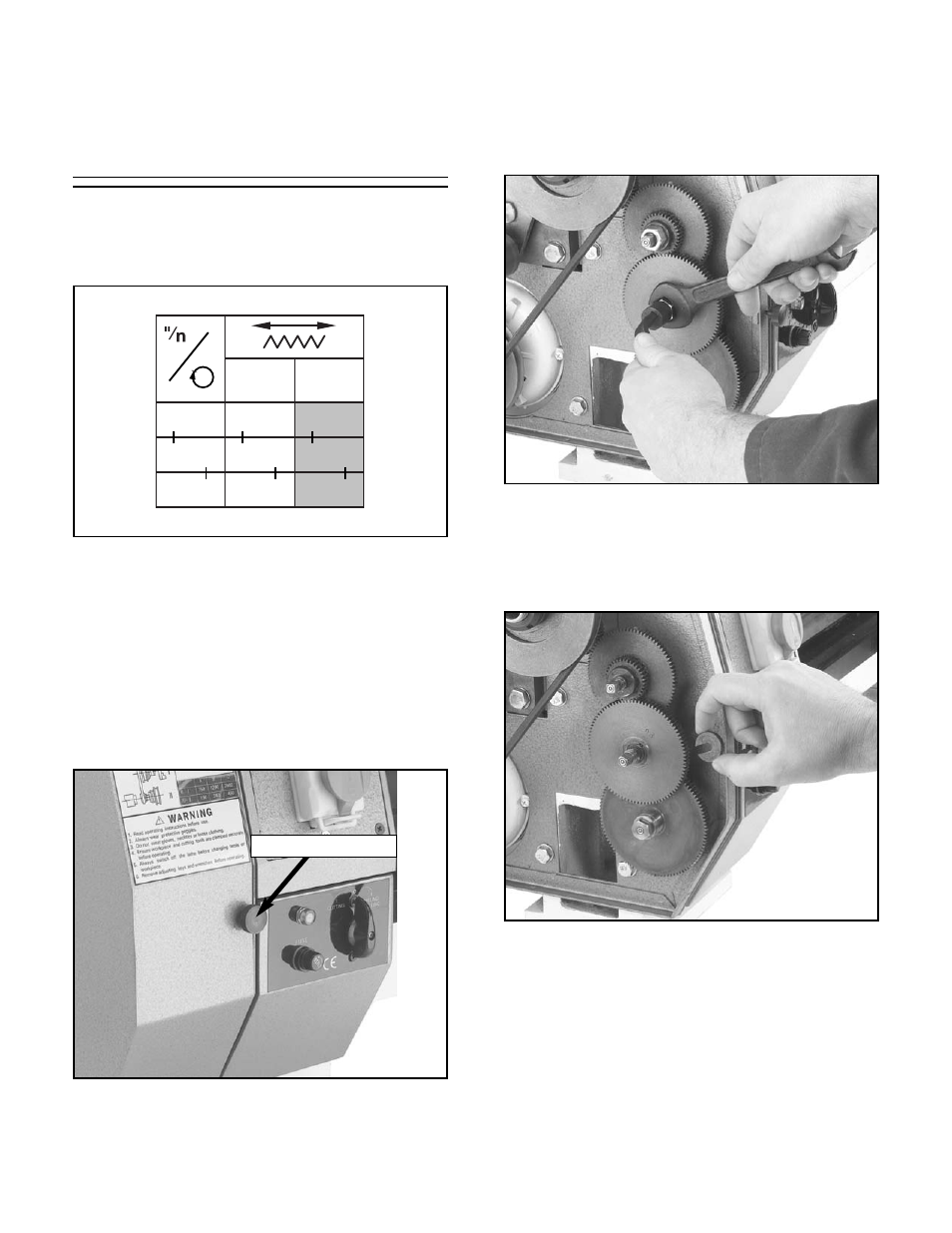

Figure 39. Removing hex nuts from adjustable
shafts with a 19mm wrench.
Figure 40. Removing special lock washers from
adjustable shaft.
3. Hold the adjustable shaft in place with the
shaft wrench and use a 19mm wrench to
remove the hex nuts on the upper and lower
adjustable shafts as shown in
Figure 38.
4. Slide the special lock washer off of each
adjustable shaft as shown in
Figure 40.
Changing Gears For
Carriage Feed Rate
Figure 37. Knurled drive cover knob.
0.005" 0.010"
C B
D E
F
35 80
90 30
100
50 80
66 30
100
Figure 36. .010" feed rate setup (shaded).
To learn how to change gears, change the cur-
rent gear setup to the .010" feed rate that is shad-
ed in
Figure 36.
To change the carriage feed rate to .010" per
spindle revolution:
1. Disconnect the lathe/mill from the power
source!
2. Loosen the knurled knob shown in Figure
37, and open the drive cover.
Drive Cover Knob
