-22- G0516 Lathe/Mill

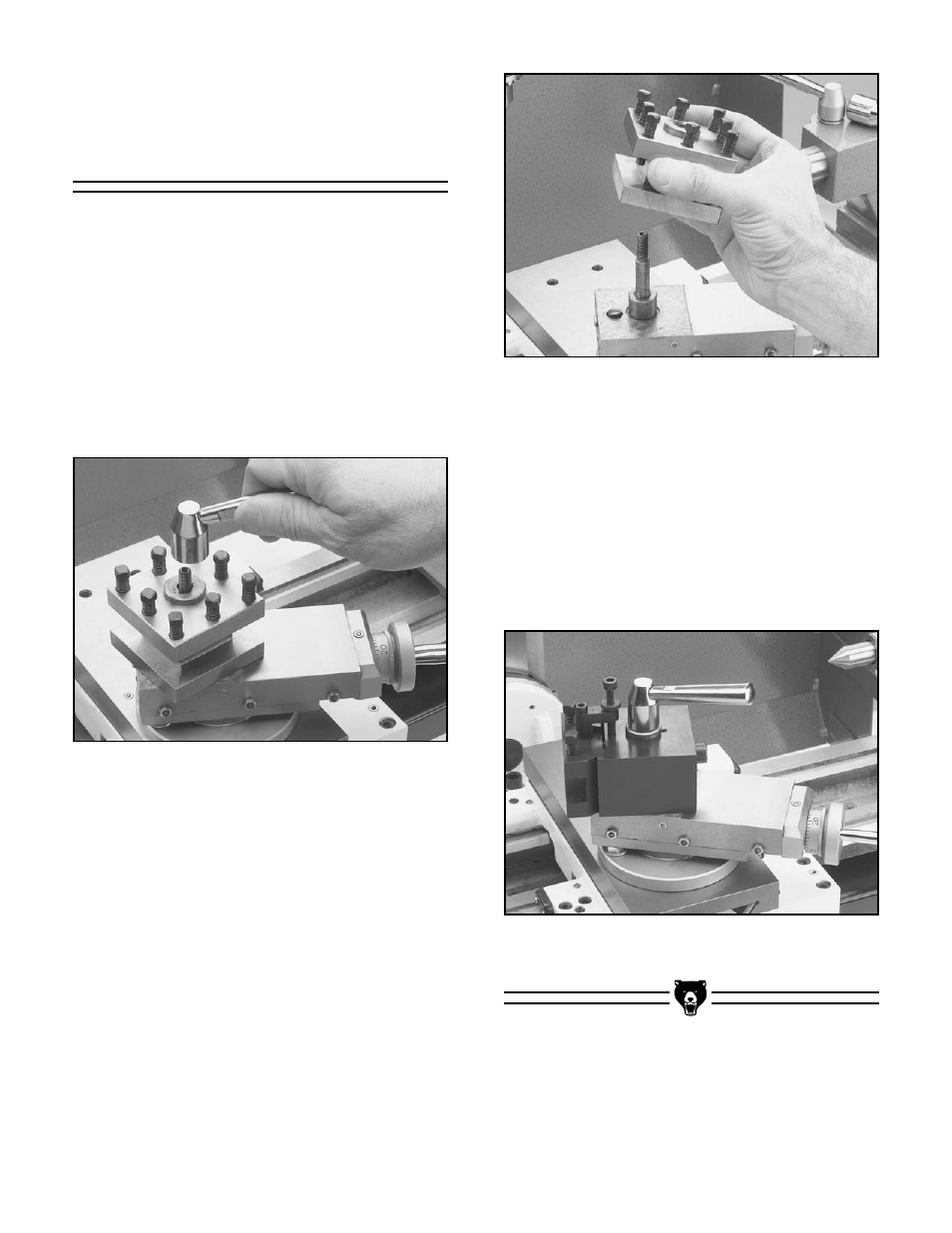

Figure 20. Removing tool post lock handle.
Figure 22. Optional quick change tool post
installed.
Figure 21. Removing tool post.
Changing
Tool Posts
The Model G0516 comes with a turret tool post.
Grizzly also offers quick change tool post as an
optional accessory to the Model G0516. Both tool
posts can be removed and replaced in the same
manner.
To change a tool post from the compound
rest:
1. Rotate the tool post lock handle counter-
clockwise to remove it as in
Figure 20.
2. Pull the installed tool post straight up to
remove it from the compound slide, as
shown in
Figure 21.
3. Replace the new tool post on the compound
slide.
4. Position the tool post to its intended working
angle.
5. Replace the tool post lock handle and tighten
it to keep the tool post secured in place.
Figure 22 shows the quick change tool post
installed.
