Grizzly 12 Speed Press G7947 - Manual (Page 43)

g7947/g7948 12 speed Floor drill press
-41-
Light Socket
(do not use at 220V)
Light
Switch
Power
Switch
Motor
Capacitor
White
Black
Green (Ground)
Wire Nut Connection
To Power
To Motor
1 3 5 2 4 6
110V
KEY
Motor Wiring
1 3 5 2 4 6
220V
Wires colors coming into motor
are interchangeable, and are
therefore not specified.
NOTICE: These motor wiring diagrams
are current at the time of printing;
however, always use the diagram on
the inside of the junction box cover
when rewiring your motor!
WARNING!
SHOCK HAZARD!
Disconnect power
before working on
wiring.

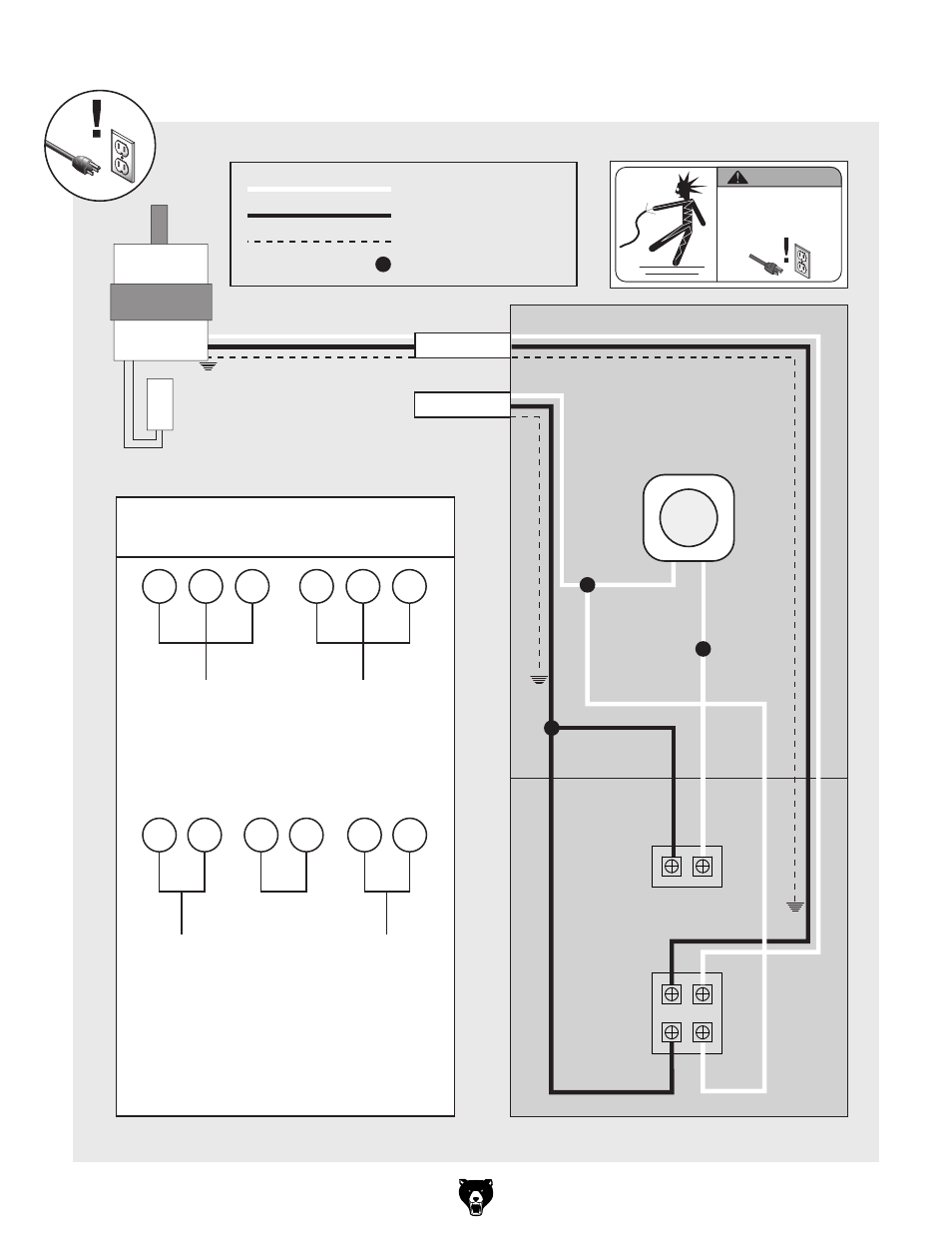

G7947/G7948 Wiring Diagram
Wiring Diagram
