g7947/g7948 12 speed Floor drill press
-15-
Inventory

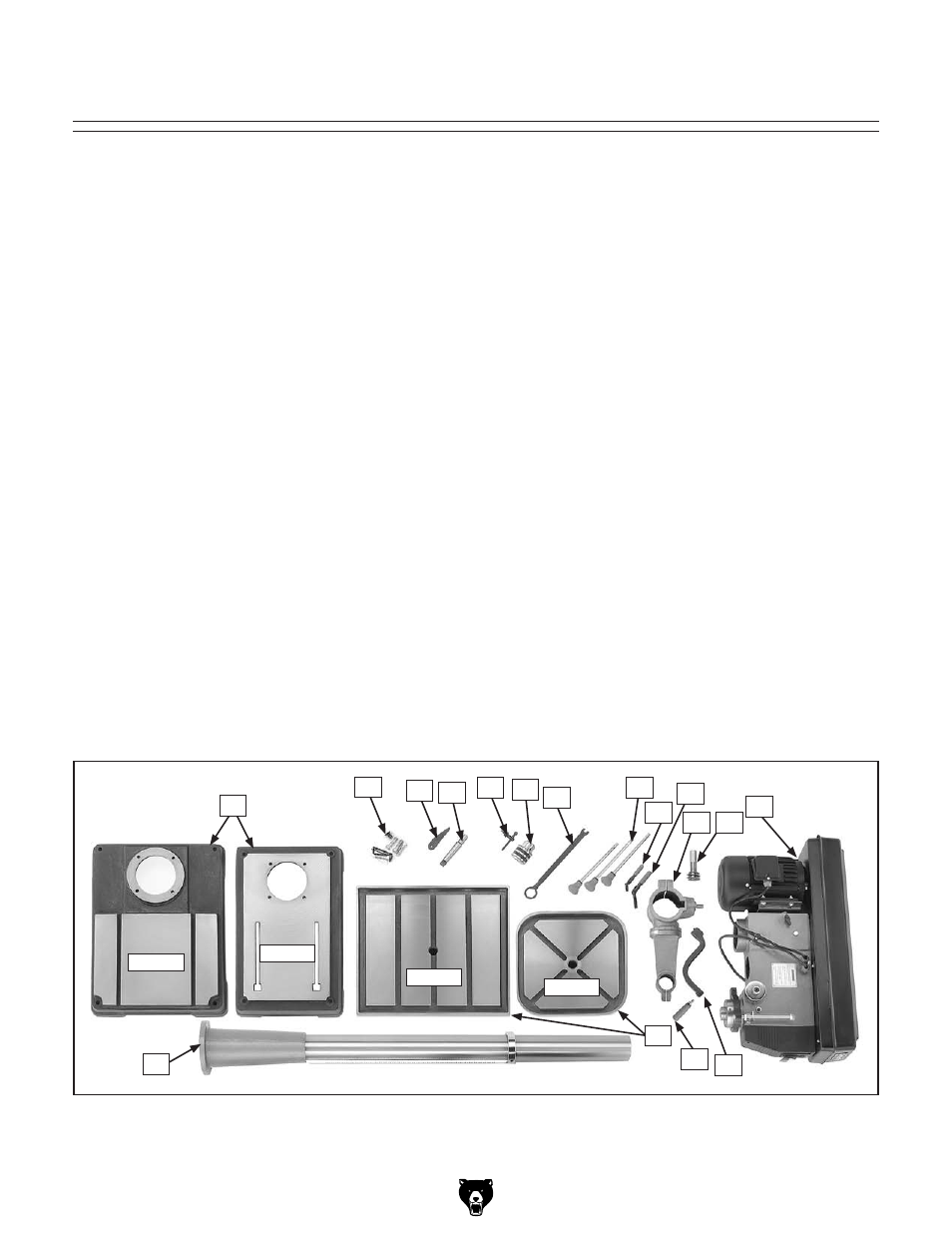

figure 4. g7947/g7948 box inventory.
g7948
g7948
g7947
g7947
1
if any nonproprietary parts are missing (e.g. a nut or a washer), we would be glad to replace them, but for
the sake of expediency, you can get replacements at a hardware store.
use figure 4 and the inventory list below to inventory your drill press parts:
Description Qty
1. Base ........................................................... 1
2. Column ....................................................... 1
3. table support Assembly ............................ 1
4. large lock lever ....................................... 1
5. small lock lever ........................................ 1
6. Crank lever ................................................ 1
7. handle ........................................................ 1
8. table .......................................................... 1
9. headstock Assembly .................................. 1
10. Arbor ........................................................... 1
11. drift Key ...................................................... 1
12. Chuck ......................................................... 1
13. Chuck Key .................................................. 1
14. downfeed handles ..................................... 3
15. lock Wrench .............................................. 1
16. pinion ......................................................... 1
17. hardware Bag ............................................ 1
—Belt Cover Knob ..................................... 1
—hex Wrench 3mm ................................... 1
—hex Wrench 4mm ................................... 1
—hex Wrench 5mm ................................... 1
—hex Bolt M12-1.75 x 45mm .................... 4
17 11 10 13 12 15 14
5
4
3 16
9
8
7
6 2
