permit other models to be put in the tray).

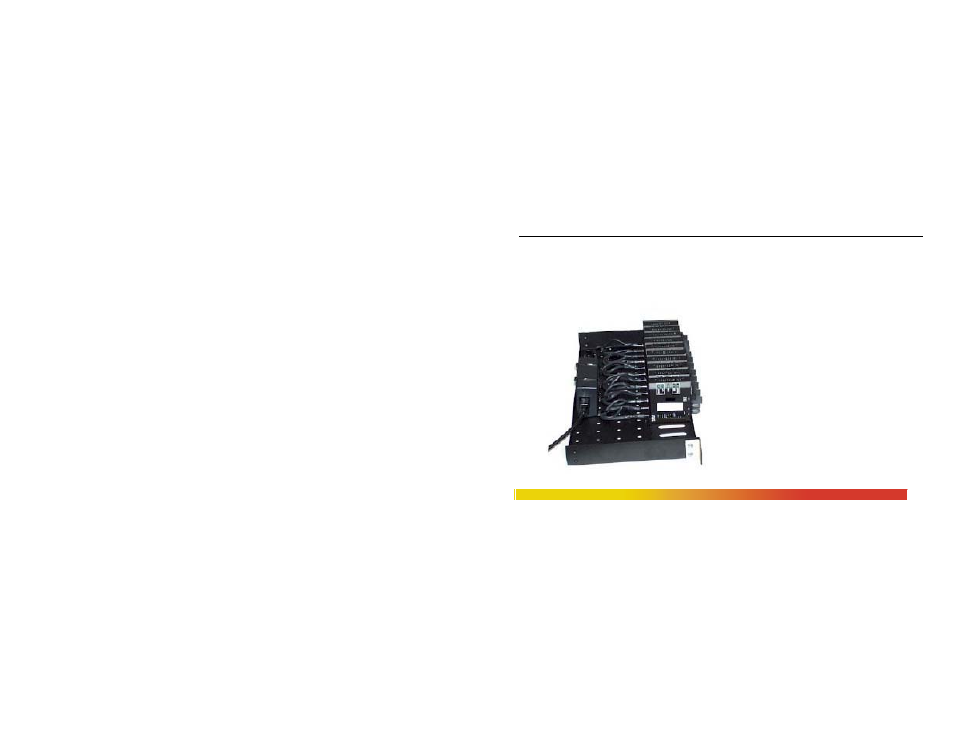

The side-view picture shown here is an example of an installation of the model
MC14-TR+PS9, 19” rack-mount tray, holding a few CS14 & CSN14 Series , 10Mbps
FT14’s and 100Mb 14E Media Converters, each with their power input plugged into the
built-in common AC power supply
in the rear area of the tray. (PS units
that come with the MC’s are not
used).
Metal mounting screws
in the bottom-front hold each of the
media converters secure in the tray,
separately removable for service.
The dual LEDs permit viewing
operating status of the CS14-Sereis
Converter Switches from any
angle.
