Gefen EXT-COMPAUD-CAT5-444 - Manual (Page 22)

1 2 3 4 5 6 7 8
Pin Color
1 Orange / White
2 Orange
3 Green / White
4 Blue
5 Blue / White
6 Green
7 Brown / White
8 Brown
19
CAT-5, CAT-5e, and CAT-6 cabling comes in stranded and solid core types.
Gefen recommends using solid core cabling.
It is recommended to use one continuous run from one end to the other.
Connecting through a patch is not recommended.
Gefen recommends the TIA/EIA-568-B wiring option. Please adhere to the table
below when fi eld-terminating the CAT-5 cable for use with Gefen products. .

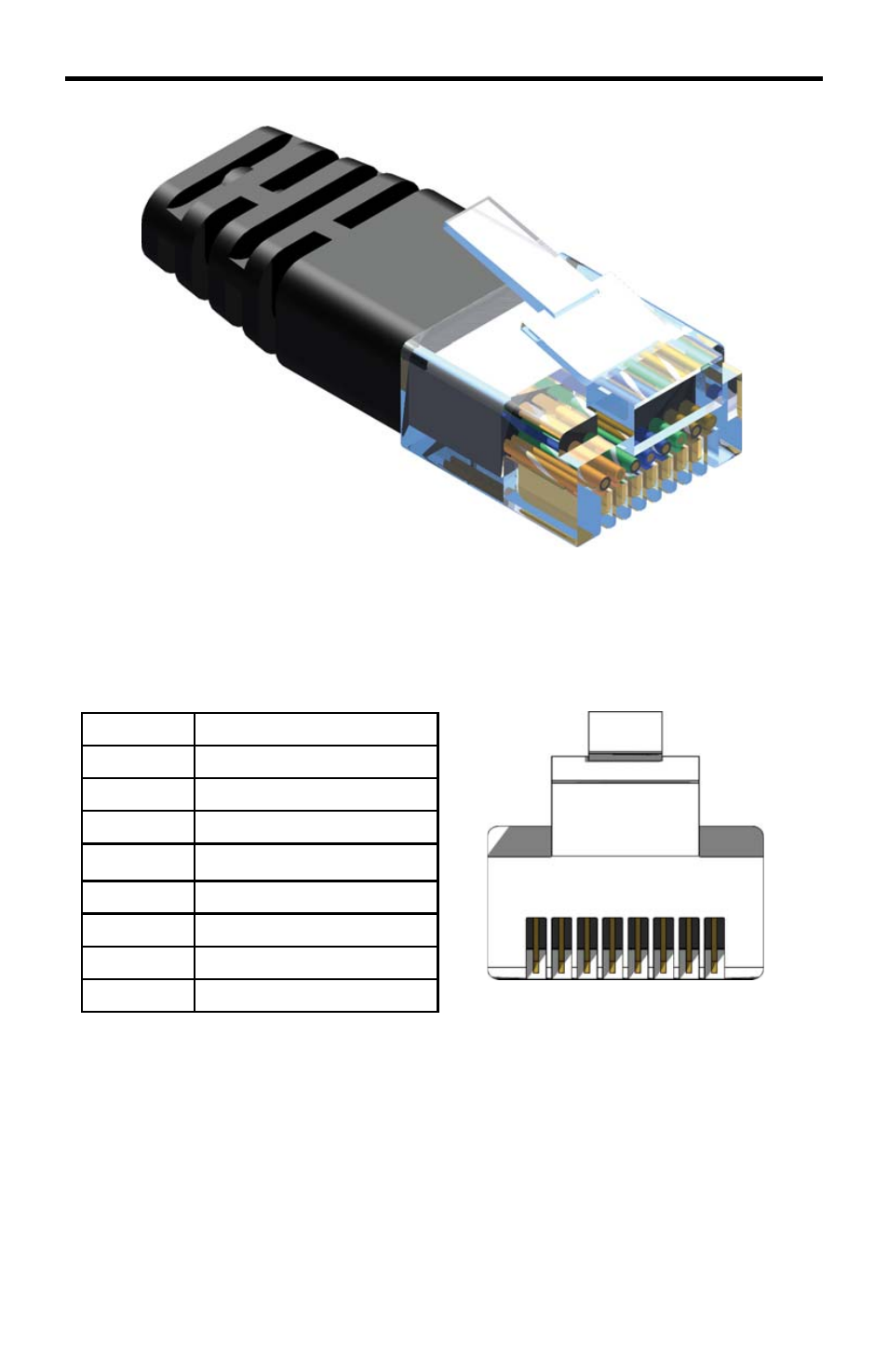

NETWORK CABLE WIRING DIAGRAM
