7
LOCATED
UNDER
LIGHT
COVER
OPEN
FORCE
CLOSE
FORCE
B OPEN ADjUSTMENT
• On front panel of Power Head find adjusting
screw marked “OPEN” (Figure 9) .
• Gently turn screw counterclockwise until it stops .
– Very little force is required to turn
adjusting screw .
• Press Wall Console to open garage door .
– Observe if door stops at “OPEN” limit switch .
If door is fully open—adjustment is finished .
– If door stops but is not fully open,
a . Measure distance between bottom of
door and top of door opening .
b . Move “OPEN” Limit Switch that same
distance toward Power Head .
– If door stops before reaching the “OPEN”
Limit Switch
a . Slightly increase OPEN Force
setting (clockwise) .
– If door fails to move, see Troubleshooting
Section, pages 10 & 11 .
C Run Door Opener
• Cycle opener a few times to double check
settings . Repeat adjustment steps as necessary .
WARNING
• The garage door opens rapidly, and can cause serious
injury or death .
• Keep the path clear.
• Position the ladder to the side of the Power Head so it
is clear of all moving parts of the Opener and the door .
• Set the door Opener to use the minimum force needed
to open the door .
Coarse Setting of Limit Switches
A Setting Close Limit Switch
• Check that Carriage Assembly is disengaged.
• With garage door fully closed, slide Close Limit Switch
until it is aligned with the center of the
Carriage Assembly .
• Tighten Set Screw. Do Not over-tighten.
B Setting Open Limit Switch
• Manually open garage door to full open position.
• Slide Open Limit Switch until it is aligned with the center
of the Carriage Assembly .
• Tighten Set Screw. Do not over-tighten.
• Re-engage Carriage Assembly.
Setting Force Controls and Final Adjustment of
Limit Switches
A CLOSE ADjUSTMENT
• On front panel of Power Head find adjusting screw
marked “CLOSE” (Figure 9) .
• Gently turn screw counterclockwise until it stops .
– Very little force is required to turn adjusting screw .
• Press Wall Console to close garage door .
– Observe if door stops at “CLOSE” limit switch .
If door is fully closed—adjustment is finished .
Go to “OPEN” Adjustment .
– If door stops but is not fully closed,
a . Measure distance between bottom of door
and floor .
b . Move “CLOSE” Limit Switch that same distance
toward door .
– If door stops and/or reverses before reaching the
“CLOSE” Limit Switch
a . Slightly increase CLOSE Force setting (clockwise) .
– If door reverses after contacting floor, move Limit
Switch toward Power Head .
– If door fails to move, check Safe-T-Beam® System . See
Troubleshooting Section, pages 10 and 11 .
WARNING
• The garage door opens rapidly, and can cause serious
injury or death .
• Keep the path clear.
• Position the ladder to the side of the Power Head so it is
clear of all moving parts of the Opener and the door .
• Set the door Opener to use the minimum force needed
to open the door .
NOTE
• Little effort is required to turn the Force Adjusting Knobs .
• If the door stops moving while opening or closing, adjust the
Open Force or Close Force Controls slightly clockwise (to
slightly increase the force) and retry the step .
• The Open Force and Close Force Controls are to be set to the
minimum force necessary to ensure the door smoothly opens
and closes completely .
• Ensure the Carriage Assembly is engaged and is between the
two Limit Switches before operating the Opener .

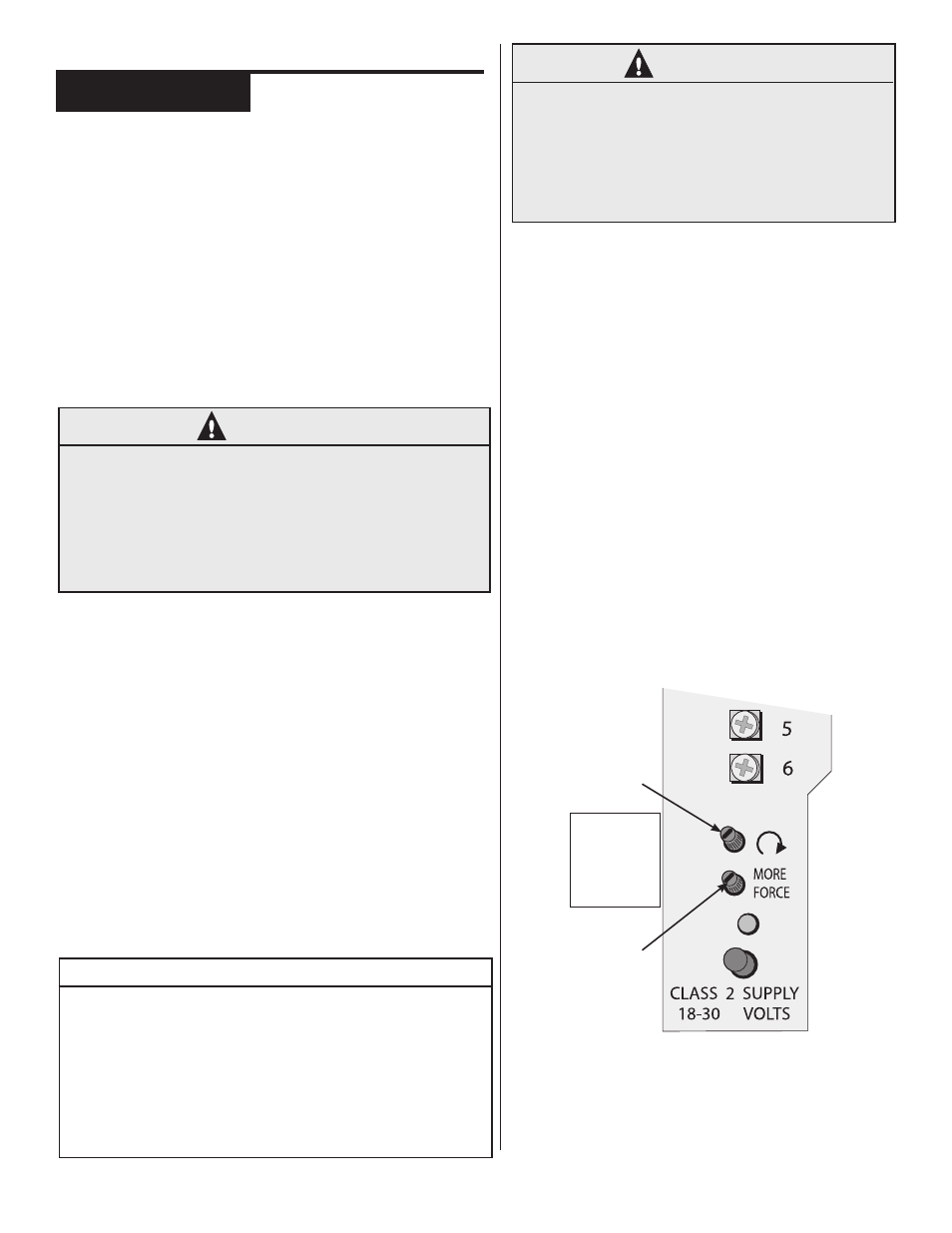

Figure 9 Making Force Adjustments
(Located Lower Right Corner) .
C
h
S
et
l
imit
S
witCheS aND
f
oRCe
C
oNtRolS
a
DjuStmeNt
1:
a
DjuStmeNtS
