Shutdown & Cleaning - After Direct Immersion Method Applications
28 312079A

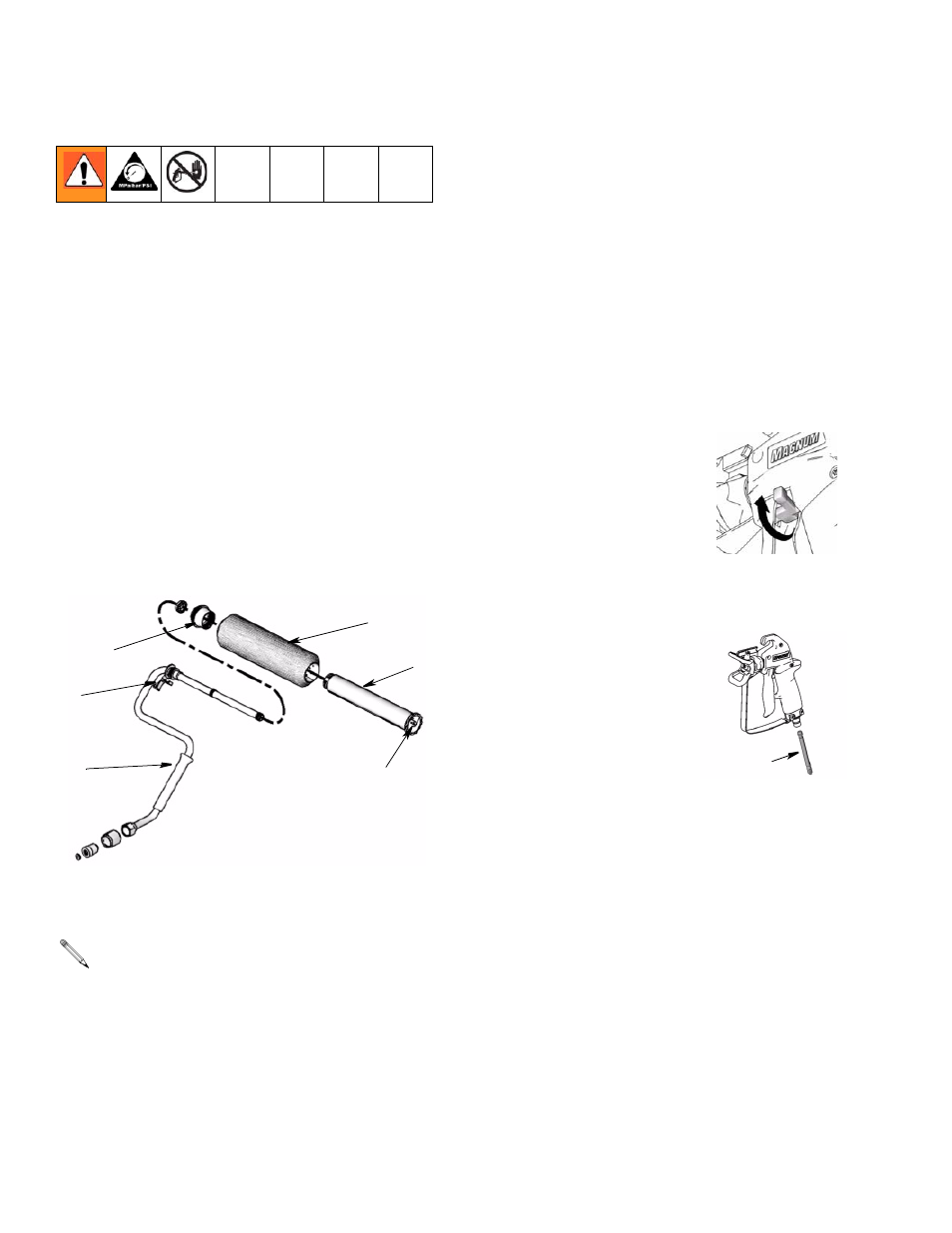

Cleaning Roller
1. Relieve Pressure, page 7.
2. Remove roller cover (a) and core (b) from roller
frame (c) as follows:
a. Using your thumb, press clip (d) to release
roller.
b. Remove cap (e) from core (b). It may be
necessary to use a screwdriver to remove
cap from core.
c. Remove roller cover (a) from core (b).
3. Clean roller cover, cap and core with water or
for oil-based materials, a compatible cleaning
solvent.
4. Place roller frame in paint pail. Be sure holes in
roller frame are facing inside paint pail.
5.
a. Turn AllControl to the LOW Spray range on
the dial to begin pumping paint in hose
back into paint pail.
b. When water or cleaning solvent comes out
of roller frame, release trigger.
6. Move roller frame to waste pail. Trigger gun to
flush hose, roller frame and gun into waste pail.
7. Continue until remaining flushing fluid is gone
from hopper. If necessary, add additional water
or flushing solvent to hopper to sufficiently
clean hose, roller frame and gun.
8. Stop triggering gun. Engage
trigger lock.
9. Follow Long Term Storage instructions, page
29.
10. Clean gun fluid filter (d)
with water or flushing
solvent and a brush every
time you flush the system.
Replace gun filter if
damaged.
11. Wipe paint off outside of gun and roller frame
using a soft cloth moistened with water or
flushing solvent.
Step 5 is for returning paint in hose back to
paint pail.
a
b
c
e
d
Insert screwdriver
in slot to remove
cap from core
ti8923a
d
ti9257a
