Shutdown & Cleaning - After Hopper Method Applications
312079A 23

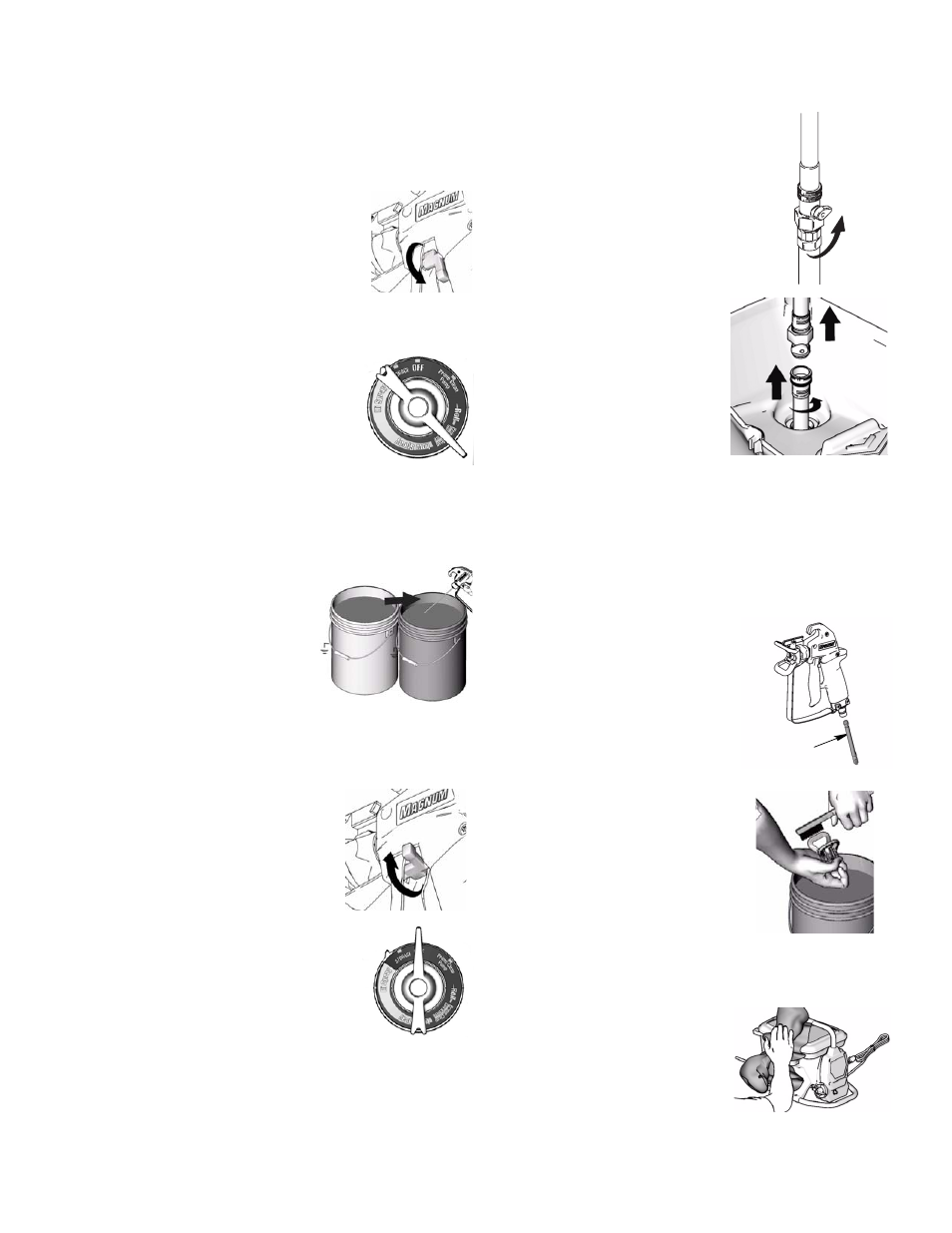

15. To preserve paint in hose:
a. Point gun into paint pail.
b. Unlock gun trigger lock.
c. Pull and hold gun trig-
ger.
d. Turn AllControl to
PRIME/CLEAN GUN
AND HOSE.
e. Continue to hold gun trigger until you see
paint, diluted with water starting to come
out of gun.
16. While continuing to
trigger gun, quickly
move gun to redirect
spray into waste pail.
Continue triggering
gun into waste pail until
water coming out of
gun is relatively clear,
approximately 1-2
minutes.
17. Stop triggering gun. Engage
trigger lock.
18. Set AllControl
™
to OFF.
19. Close Power Flush
attachment.
20. Remove hose extender
and Power Flush
attachment from
hopper.
21. Follow Long Term Storage instructions,
page 29.
22. Clip drain tube to hopper.
23. Use a soft brush to clean paint and debris off
strainer and install strainer in hopper.
24. Clean gun fluid filter (d)
with water or flushing
solvent and a brush every
time you flush the system.
Replace gun filter if
damaged.
25. Clean tip and guard with
water or flushing solvent.
A soft brush can be used
to loosen and remove
dried on material if
needed.
26. Wipe paint off outside of
gun using a soft cloth moistened with water or
flushing solvent.
27. Use a soft cloth to wipe
off hopper, cover, and
hose. Install hopper
cover.
