CABLE DIAGRAMS

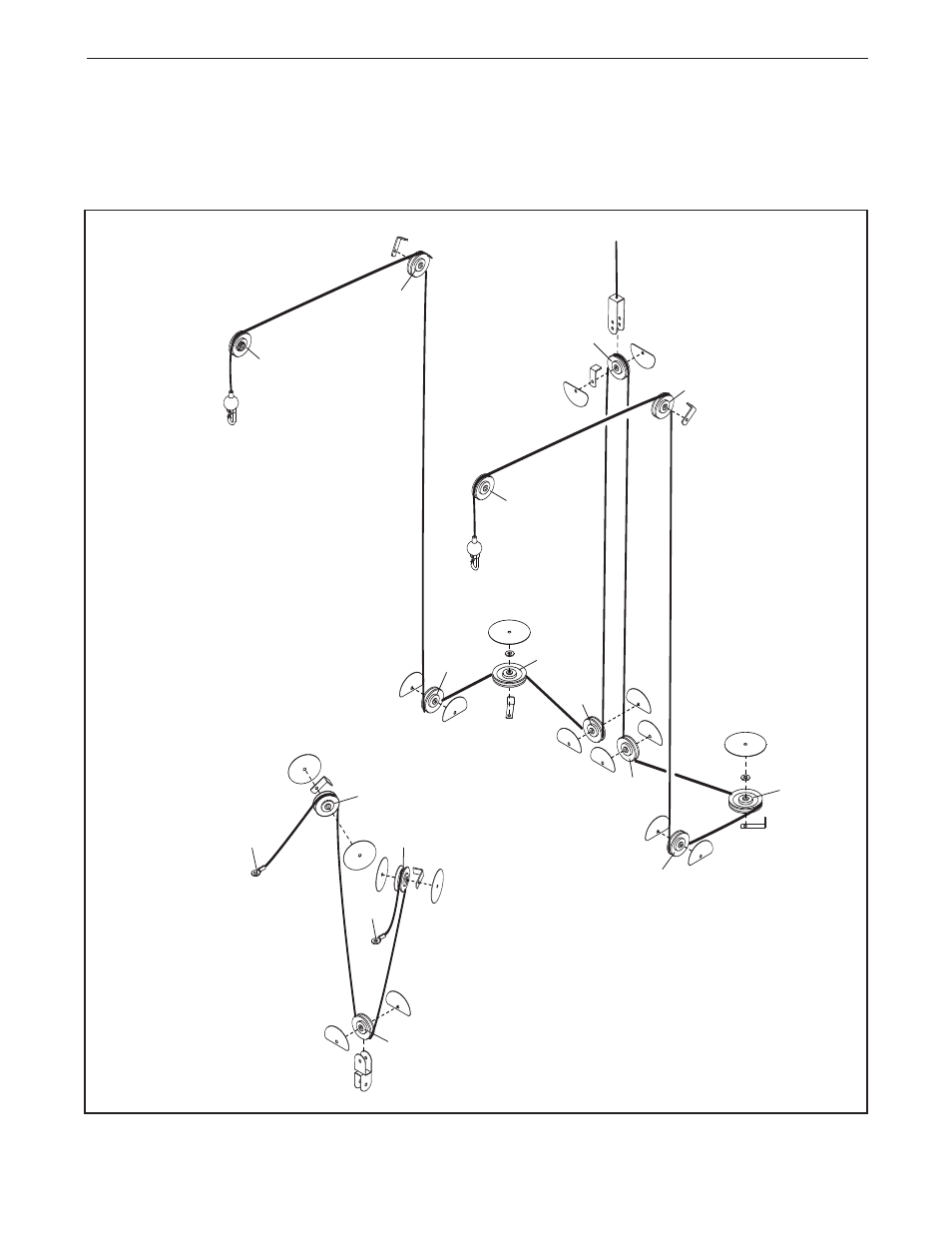

The diagram below shows the proper routing of the cables. The numbers in each drawing show the proper rout-
ing for that cable. Use the diagram to make sure that the cables, cable traps, and pulley guards are assembled
correctly. If the cables, cable traps, and pulley guards are not assembled correctly, the weight system will not
function properly and damage may occur.
Make sure that the cable traps do not touch or bind the cables.
1
11
4
10
2
6
1
2
4
5
Butterfly Cable (71)
Length: 4 ft. 11 in. (1.49 m)
Long Cable (54)
Length: 34 ft. 6 in. (10.52 m)
