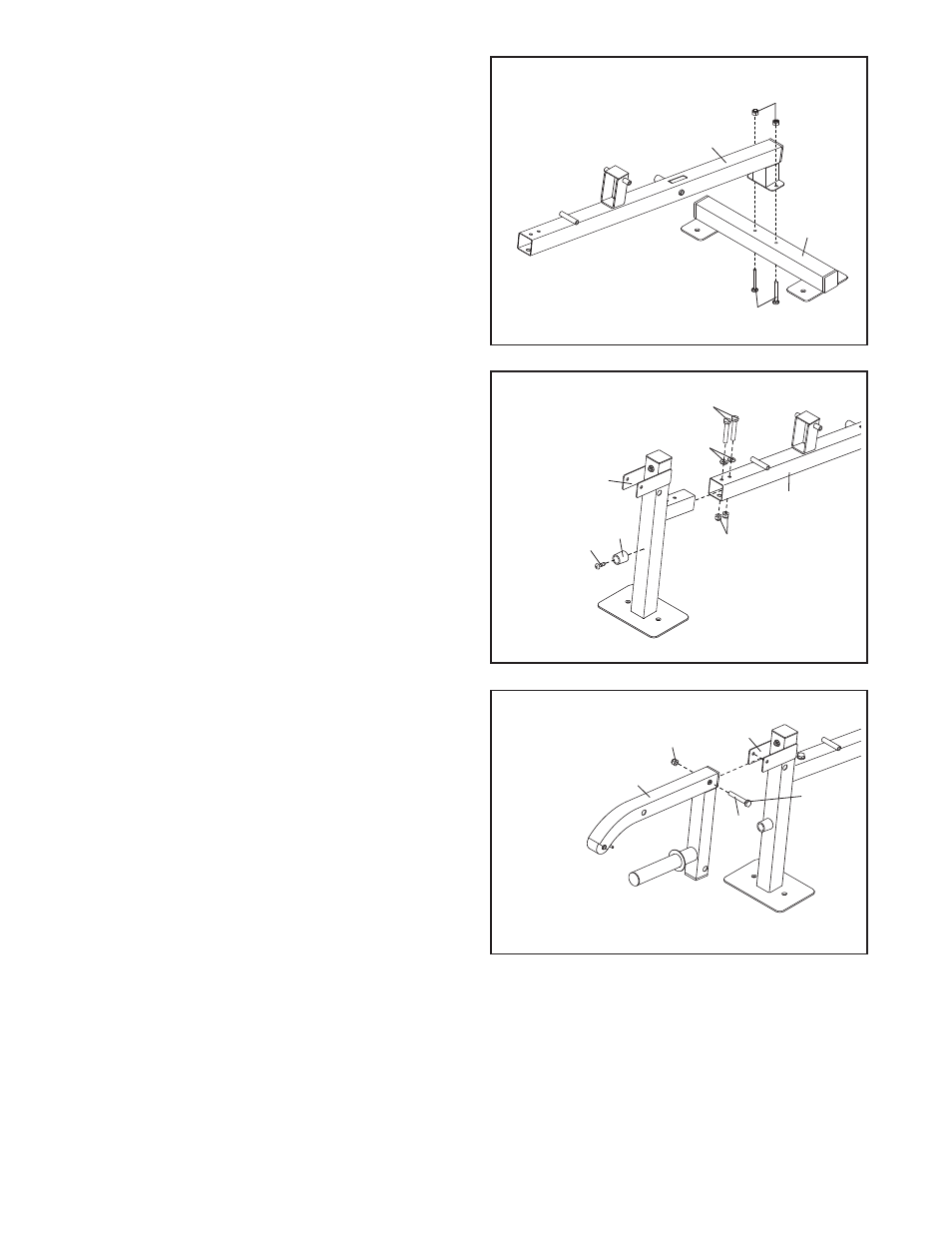

52. Attach the Leg Bumper (135) to the Front Leg
(109) with an M4 x 16mm Screw (82).
Attach the Front Leg (109) to the Bench Frame
(107) with two M10 x 73mm Hex Bolts (105), two
M10 Washers (84), and two M10 Nylon Locknuts
(79).
See steps 51 and 52. Tighten the M8 Nylon
Locknuts (78) and the M10 Nylon Locknuts
(79).
82
135
52
109
79
84
105
107
78
51
108
143
107
51. Attach the Bench Stabilizer (108) to the Bench
Frame (107) with two M8 x 76mm Carriage Bolts
(143) and two M8 Nylon Locknuts (78).
Do not
tighten the Nylon Locknuts yet.
53. Apply a small amount of the included grease to
an M10 x 82mm Button Bolt (106). Attach the Leg
Lever (110) to the Front Leg (109) with the Button
Bolt and an M10 Nylon Locknut (79).
Do not
overtighten the Nylon Locknut; the Leg Lever
must pivot easily.
53
110
106
Grease
79
109
